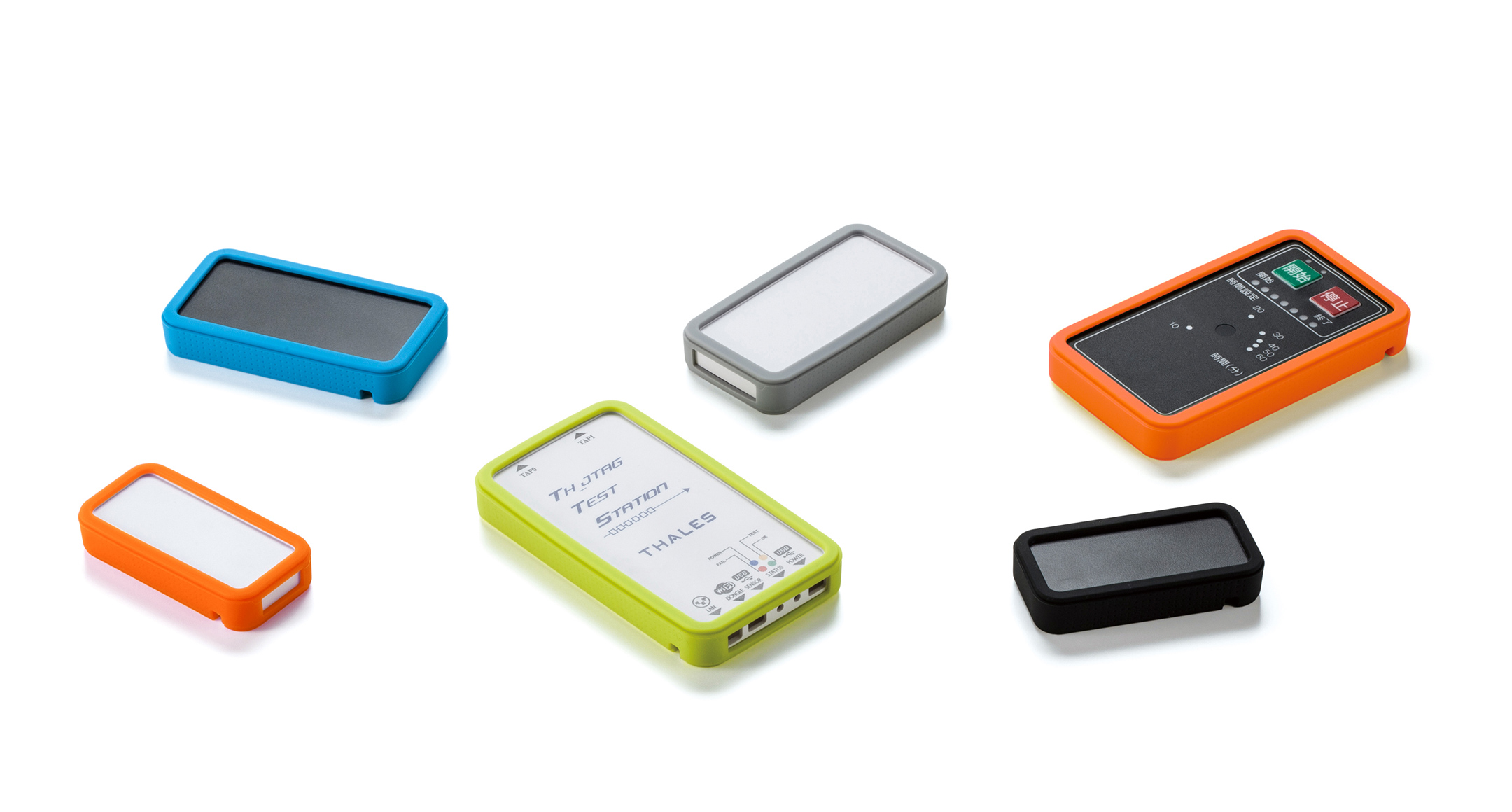

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series


CSS Series -PDF

CATEGORY:Small enclosure with silicone cover, Plastic case with silicone rubber boot, Key fob enclosure, Plastic enclosure with CR2032 Battery compartment

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series1
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series2
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series3
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series4
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series5
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series6
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series7
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series8
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series9
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series10
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series11
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series12
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series13
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series14
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series15
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series16
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series17
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series18
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series19

COLOR TYPE

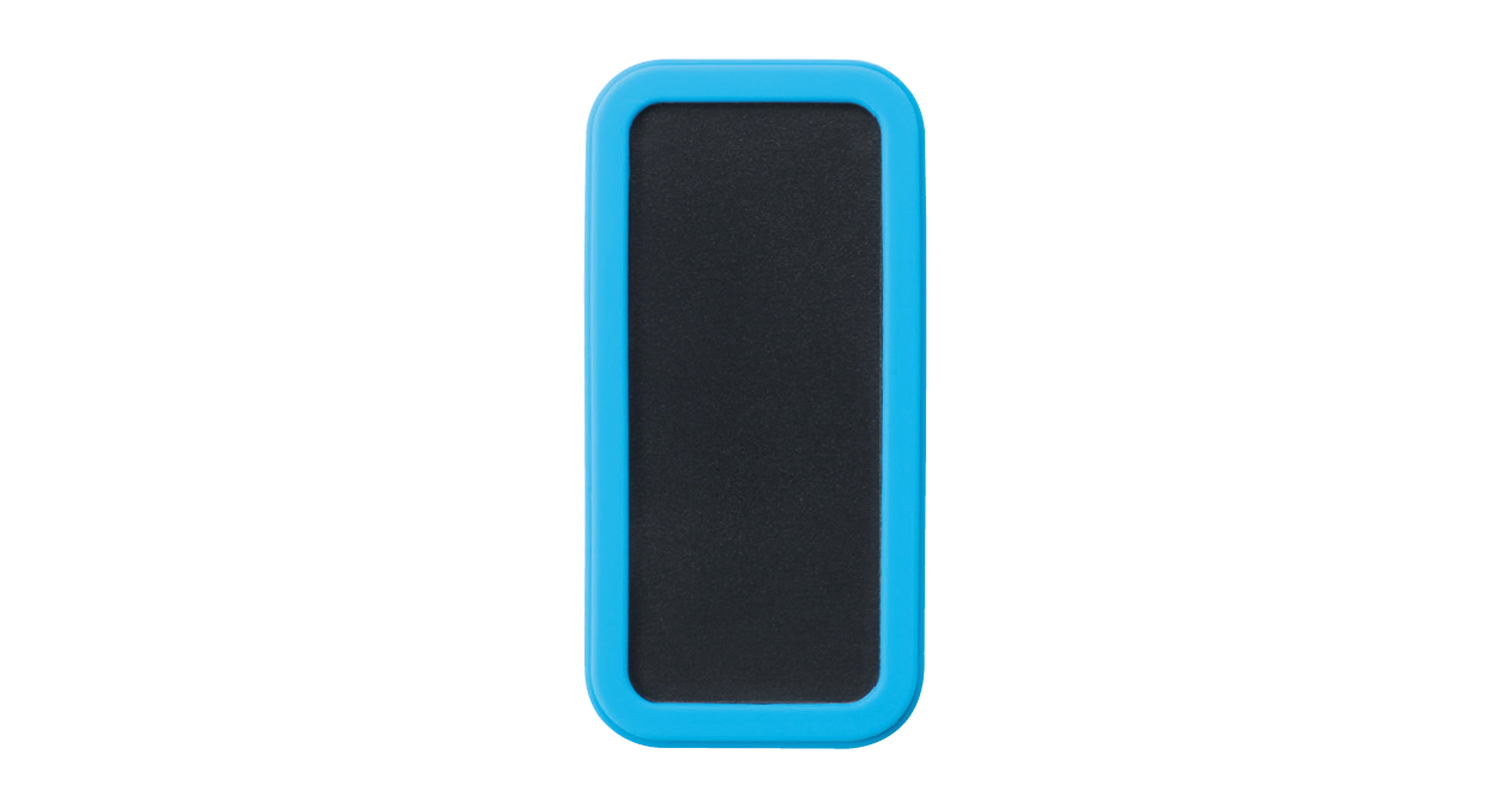

BCBlack/Cyan

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Cyan

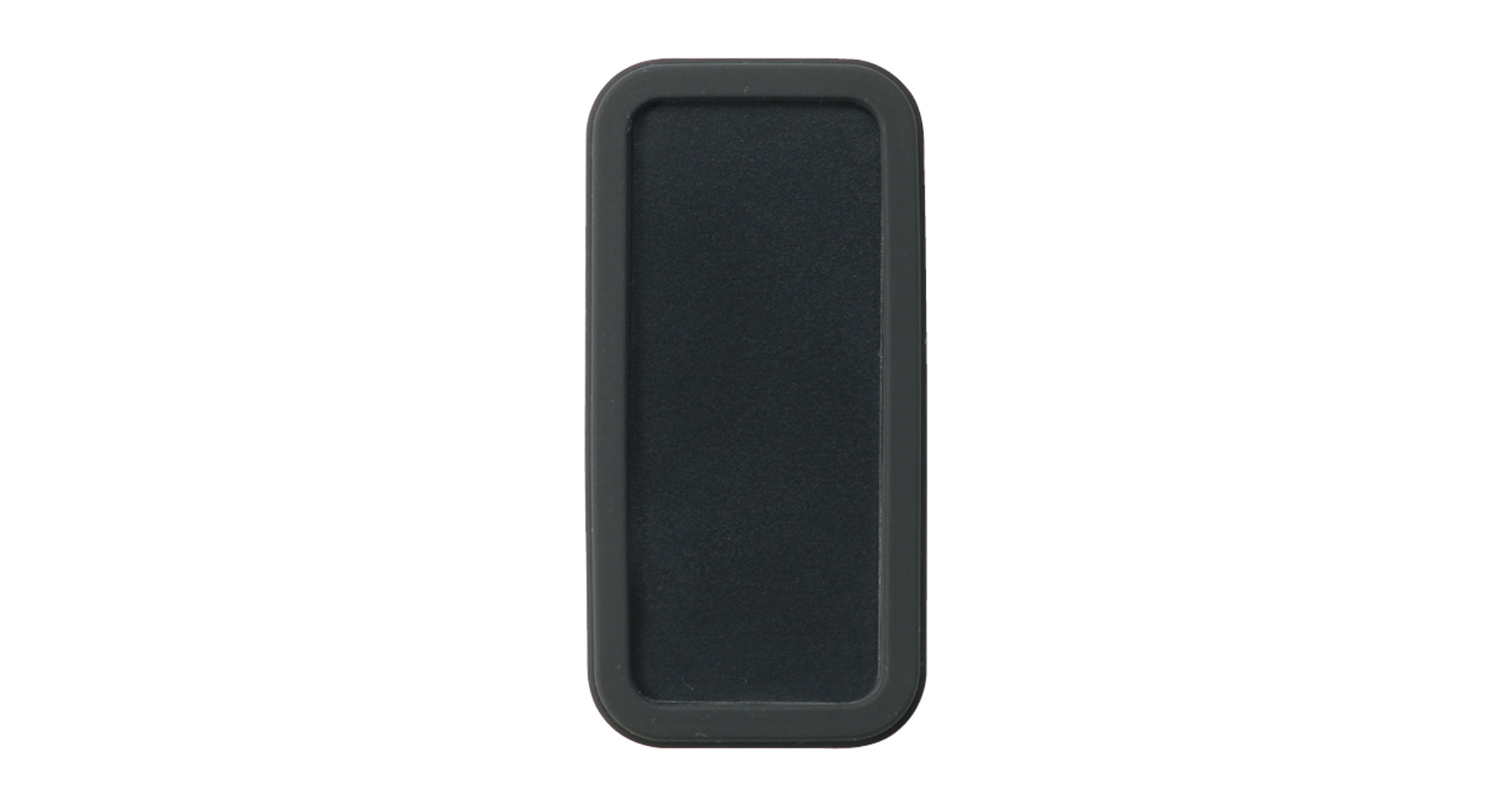

BBBlack/Black

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Black

BOBlack/Orange

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Orange

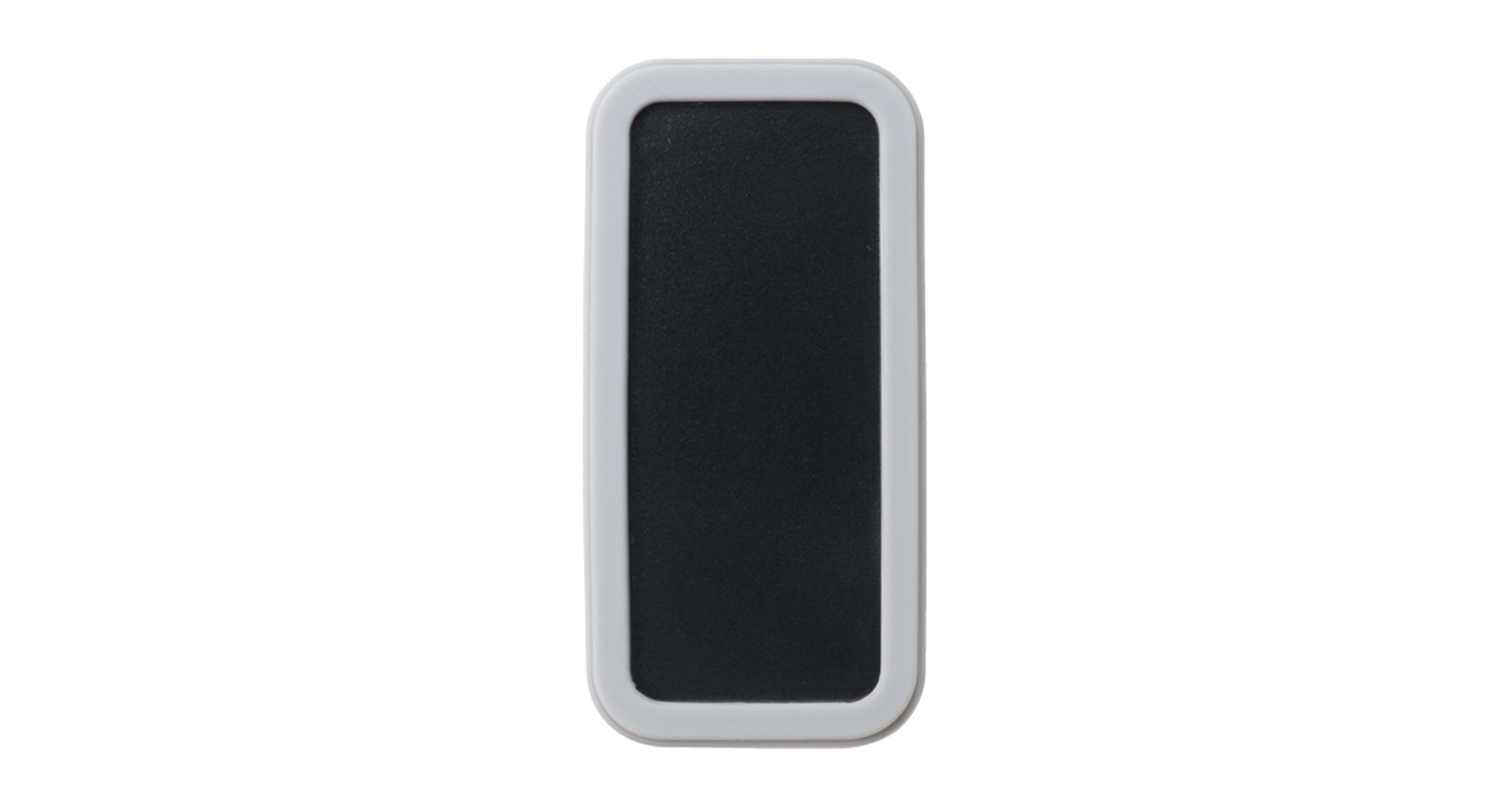

BLBlack/Light gray

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Light gray

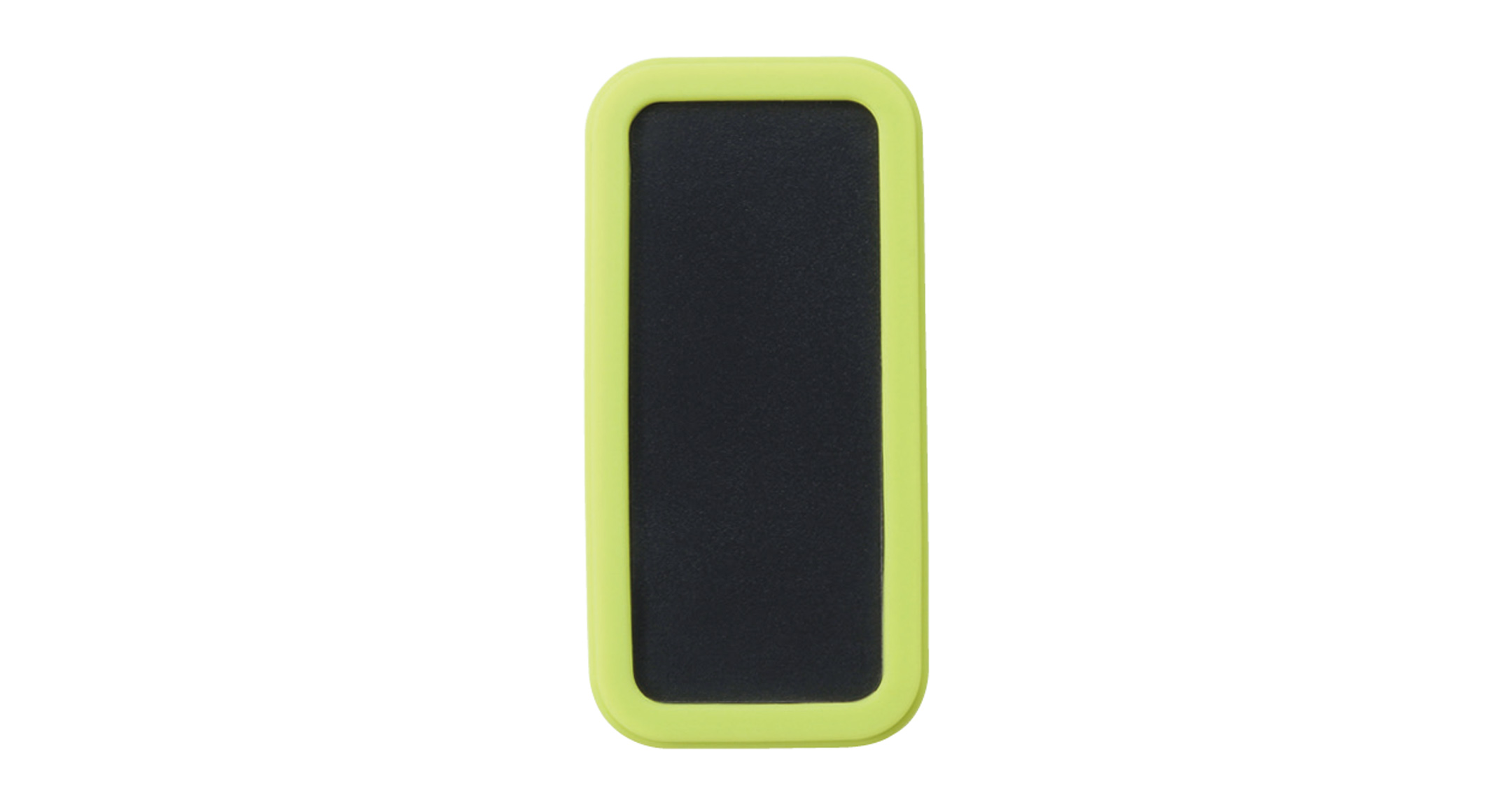

BGBlack/Green

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Green

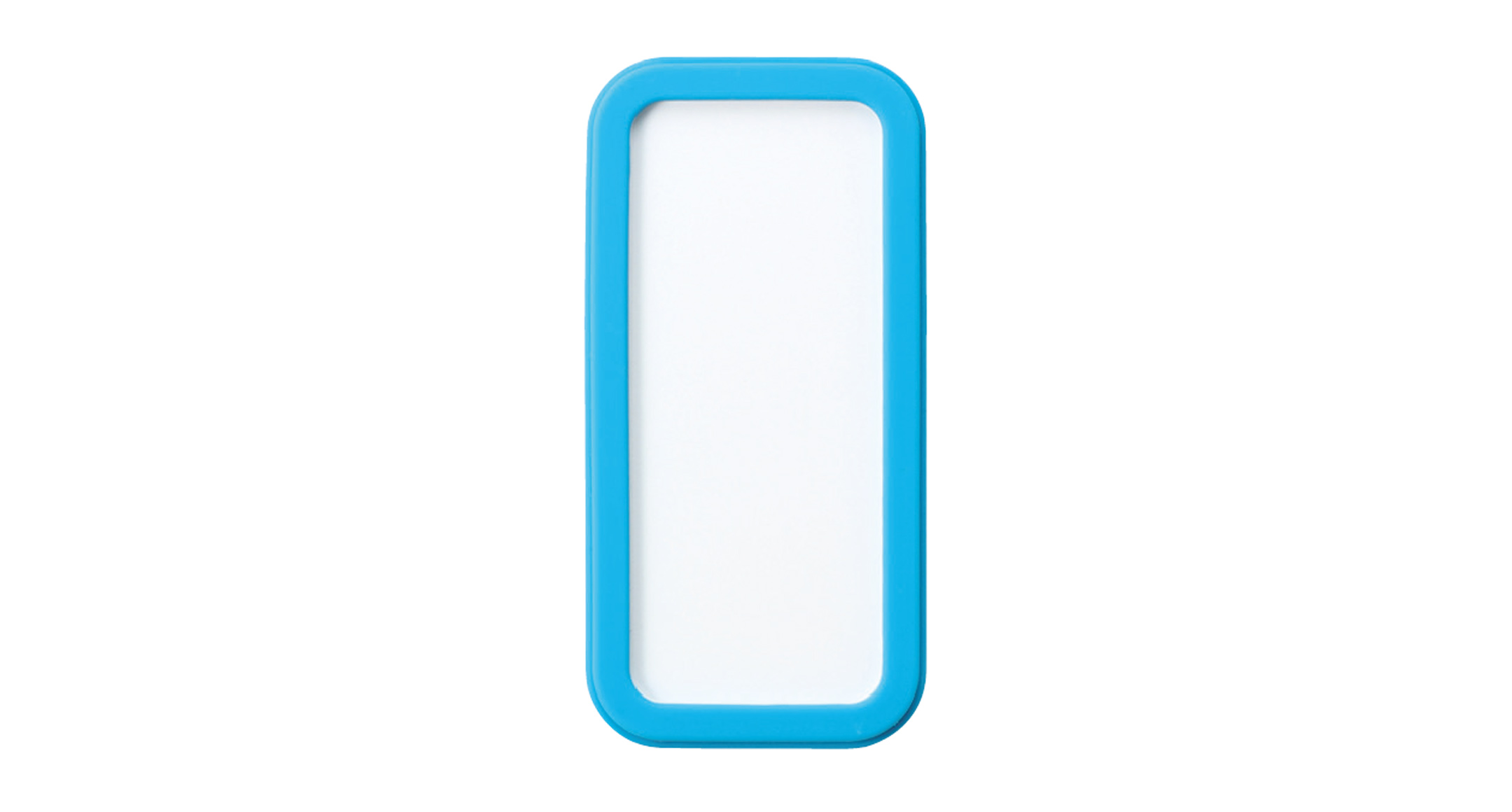

WCWhite/Cyan

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Cyan

WBWhite/Black

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Black

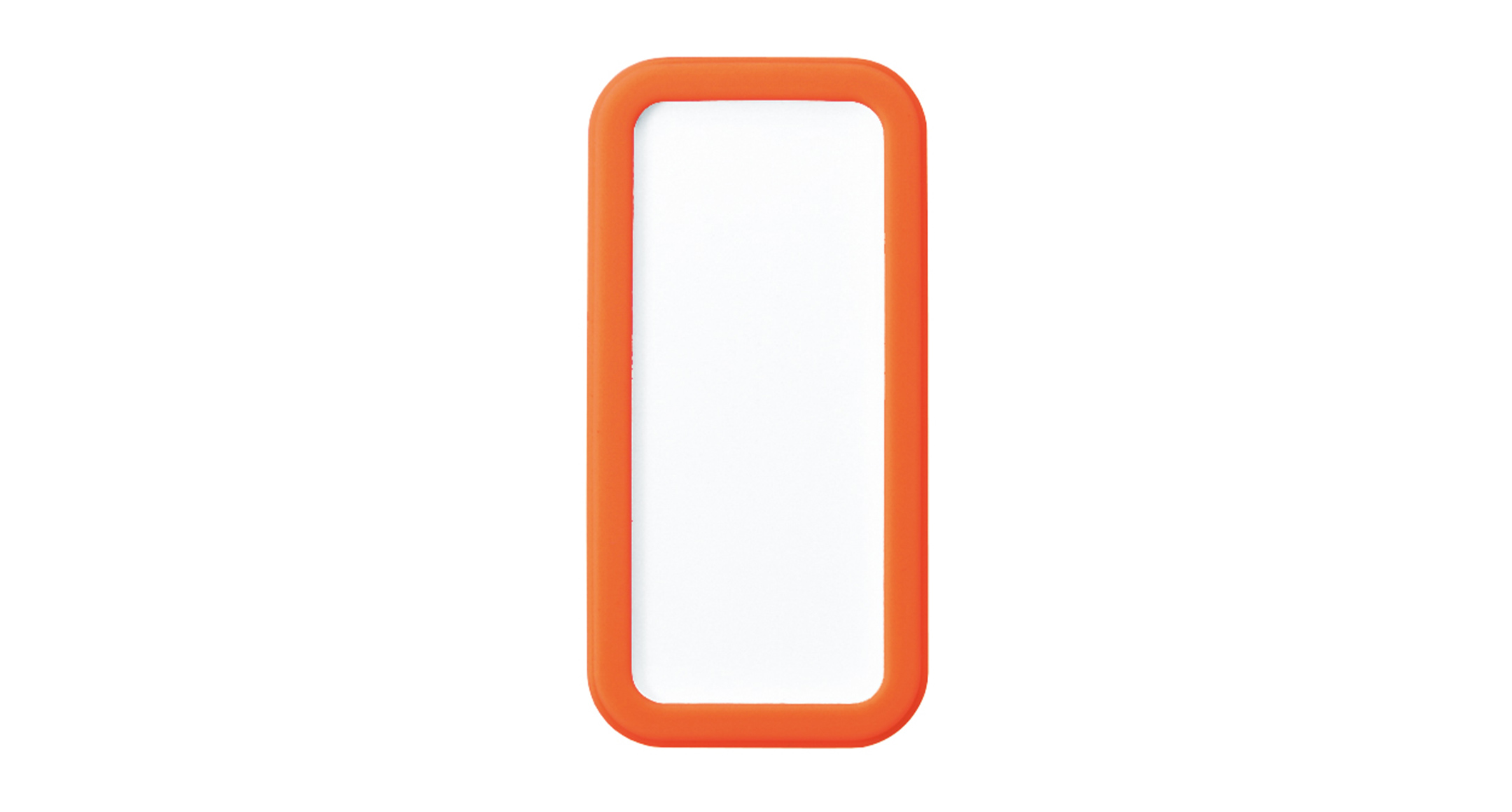

WOWhite/Orange

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Orange

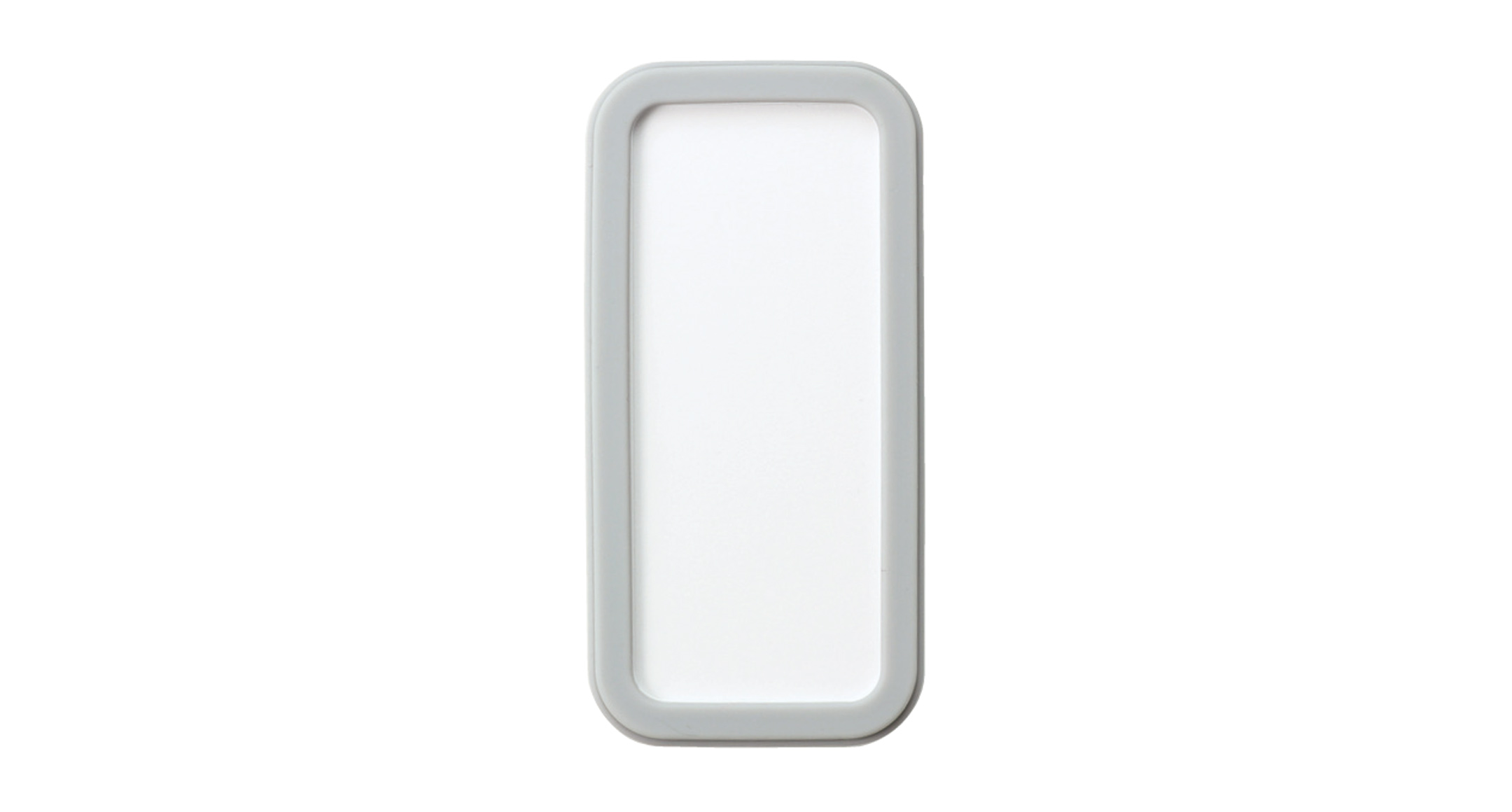

WLWhite/Light gray

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Light gray

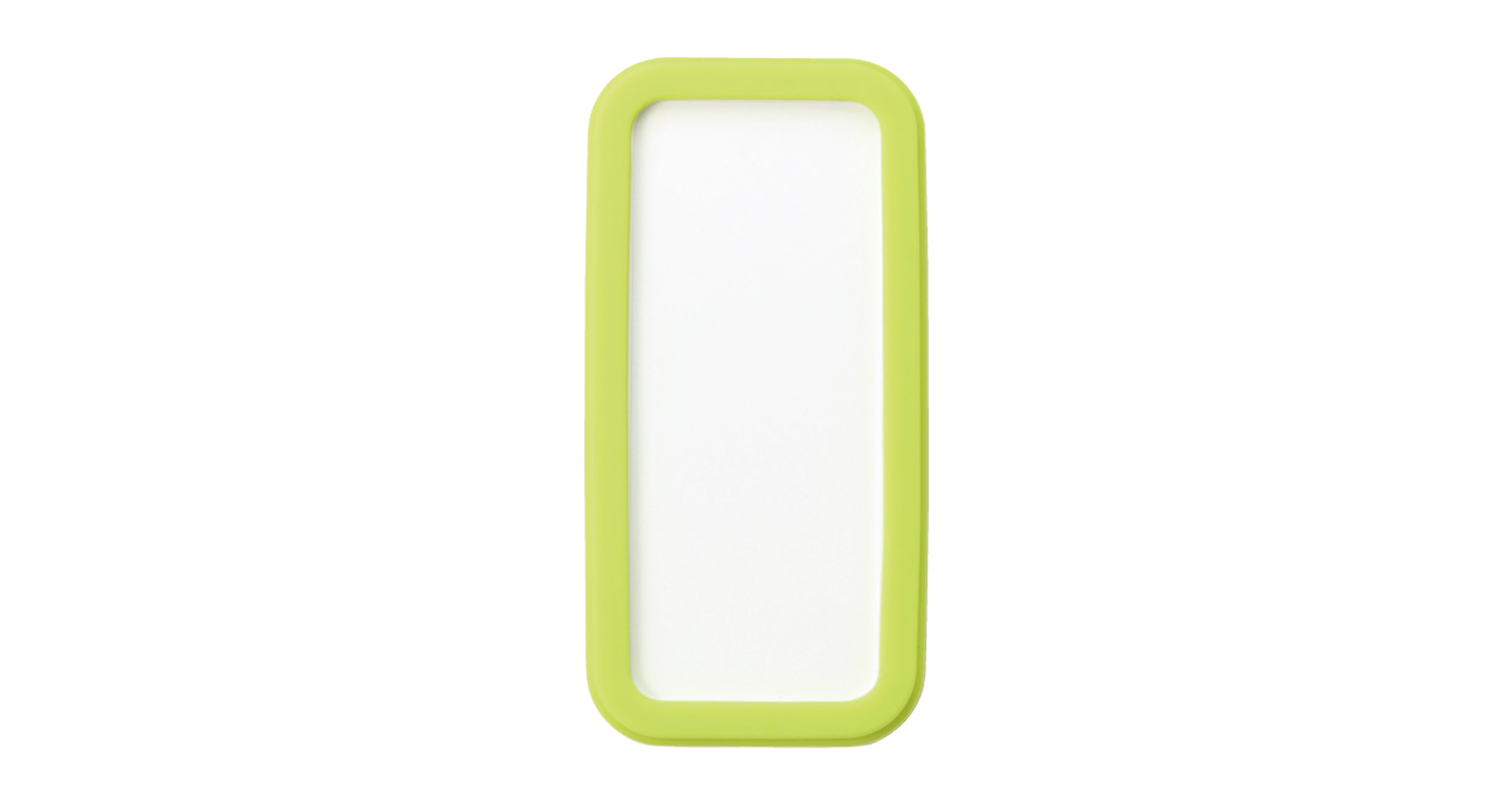

WGWhite/Green

PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Green
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Cyan
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Black
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Orange
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Light gray
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:Black/Green
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Cyan
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Black
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Orange
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Light gray
PORTABLE PLASTIC CASE with SILICONE COVER - CSS series:White/Green

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Battery compartment Silicone cover type Weight (g) PDF DXF DWG STP
W H D w h d
CSS75N-CL-□ 38.6 15.5 78.6 26.6 5.3 59 None Closed 24 PDF DXF DWG
CSS75N-OP-□ 38.6 15.5 78.6 26.6 5.3 59 None Open 24 PDF DXF DWG
CSS75-CL-□ 38.6 15.5 78.6 26.6 5.3 25.4 CR2032×1 Closed 25 PDF DXF DWG
CSS75-OP-□ 38.6 15.5 78.6 26.6 5.3 25.4 CR2032×1 Open 25 PDF DXF DWG
CSS90N-CL-□ 48.6 15.5 93.6 36.6 5.3 74 None Closed 36 PDF DXF DWG
CSS90N-OP-□ 48.6 15.5 93.6 36.6 5.3 74 None Open 35 PDF DXF DWG
CSS90-CL-□ 48.6 15.5 93.6 36.6 5.3 40.4 CR2032×1 Closed 38 PDF DXF DWG
CSS90-OP-□ 48.6 15.5 93.6 36.6 5.3 40.4 CR2032×1 Open 37 PDF DXF DWG
CSS100N-CL-□ 54.1 20.8 104.1 41.6 10.1 82 None Closed 52 PDF DXF DWG
CSS100N-OP-□ 54.1 20.8 104.1 41.6 10.1 82 None Open 51 PDF DXF DWG
CSS100-CL-□ 54.1 20.8 104.1 44.1 6.8 46 CR2450×1 / CR2477×1 Closed 54 PDF DXF DWG
CSS100-OP-□ 54.1 20.8 104.1 44.1 6.8 46 CR2450×1 / CR2477×1 Open 53 PDF DXF DWG
CSS115N-CL-□ 67 16 119 54.6 5.3 98 None Closed 62 PDF DXF DWG
CSS115N-OP-□ 67 16 119 54.6 5.3 98 None Open 61 PDF DXF DWG
CSS115-CL-□ 67 16 119 54.6 5.3 64.9 CR2032×2 Closed 65 PDF DXF DWG
CSS115-OP-□ 67 16 119 54.6 5.3 64.9 CR2032×2 Open 64 PDF DXF DWG

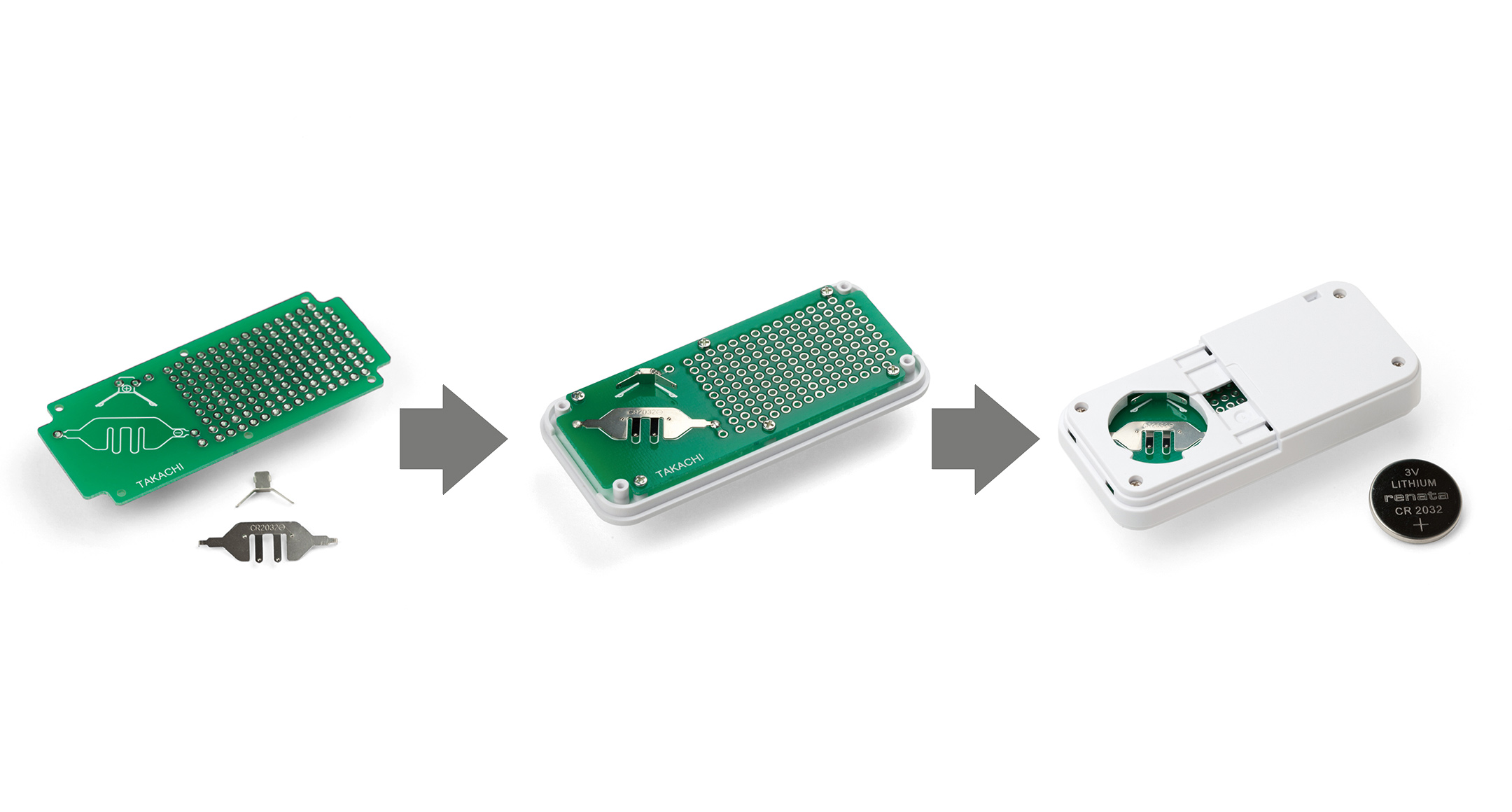

Suitable pcb (Option) PDF DXF DWG STP
CSPB-75 PDF DXF DWG
CSPB-75 PDF DXF DWG
CSPB-90 PDF DXF DWG
CSPB-90 PDF DXF DWG
CSPB-100 PDF DXF DWG
CSPB-100 PDF DXF DWG
CSPB-115 PDF DXF DWG
CSPB-115 PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.
