Simple aluminum box with an flat aluminum cover.
Detachable top cover allows easy assembly and maintenance access.
Internal surface of the sheet aluminium is unfinished, making conductive and grounding possible.

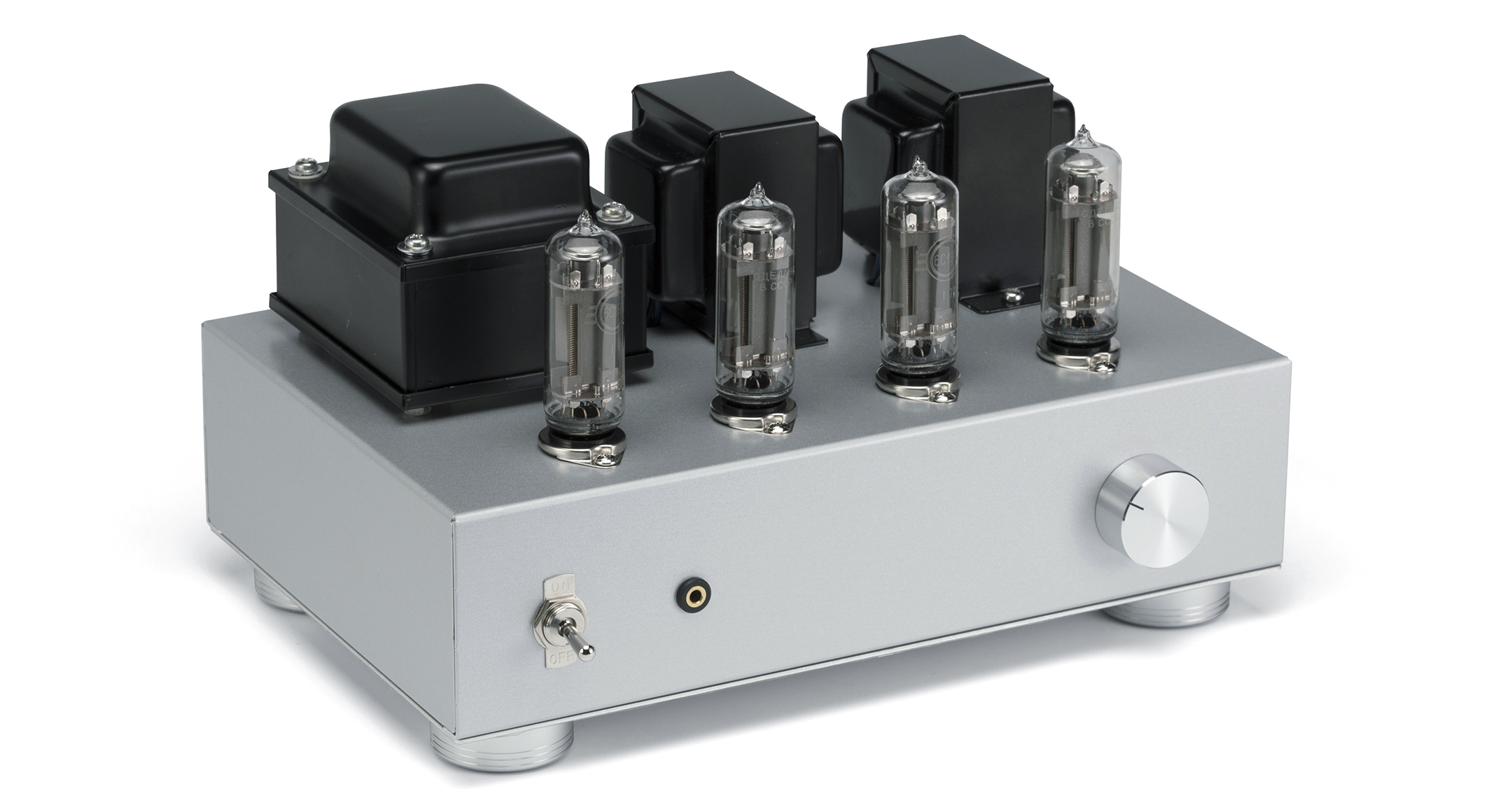

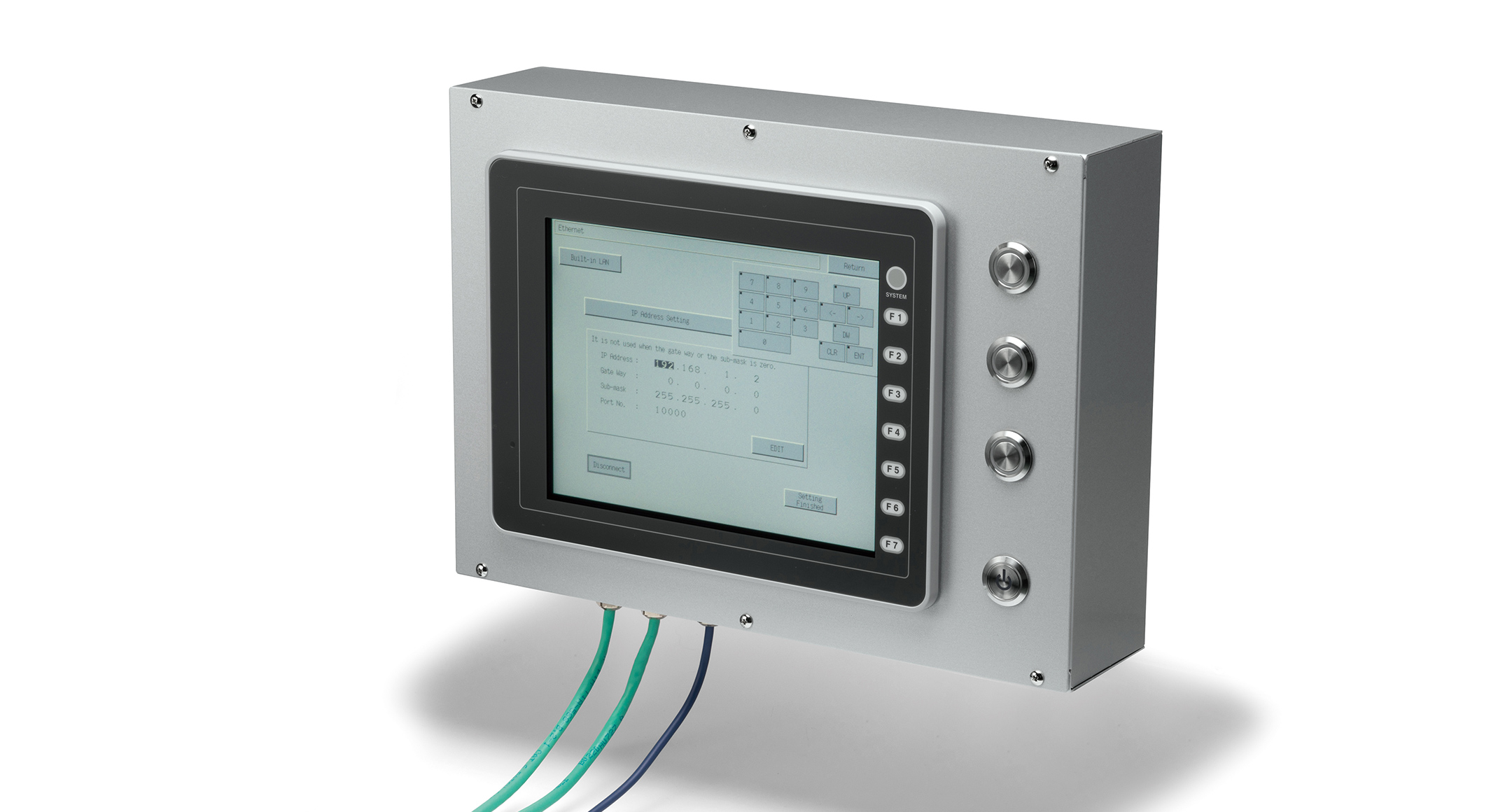

Suitable to be used for various electronics use, such as tube amplifier, controllers, switch boxes, touch panel devices, junction boxes or DIY-box.

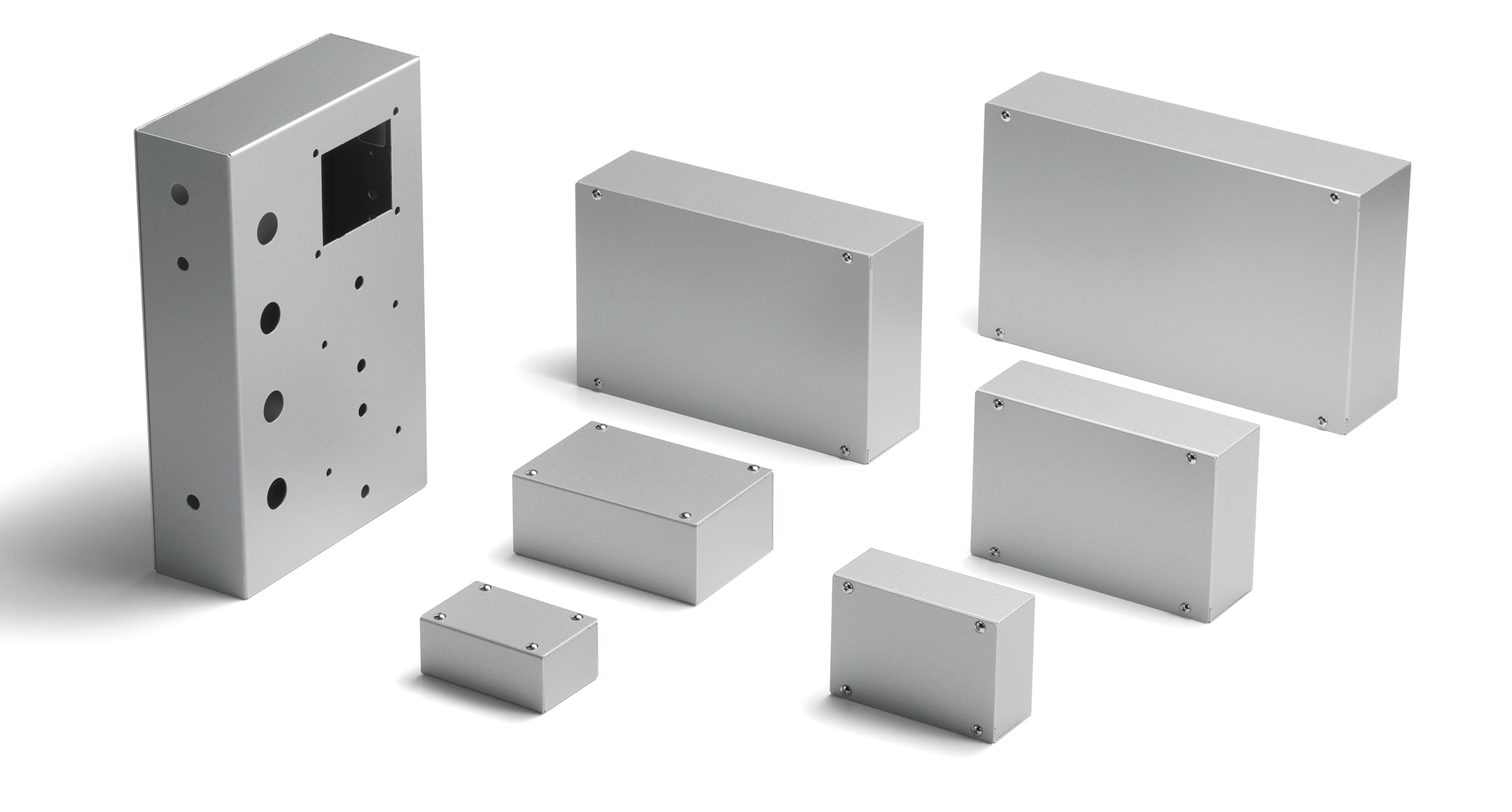

6 different sizes are available.

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
T8-4-5. 80 35 50 69 32 33 49.5 PDF DXF DWG
T10-4-7. 100 40 70 89 37 53 78 PDF DXF DWG
T12-5-8. 120 50 80 109 47 63 110 PDF DXF DWG
T15-5-10. 150 50 100 139 47 83 153 PDF DXF DWG
T20-6-13. 200 60 130 189 57 113 252.5 PDF DXF DWG
T25-6-15. 250 60 150 239 57 133 339 PDF DXF DWG

OPTIONAL PARTS

1
ADHESIVE STANDOFF - AST series
DETAILS
1
ADHESIVE PCB STANDOFF - ASR series
DETAILS
1
LOW COST UNIVERSAL PCB
DETAILS
1
EMBEDDED BATTERY BOX - BC series
DETAILS
1
ALUMINIUM HANDLE - BH series
DETAILS
1

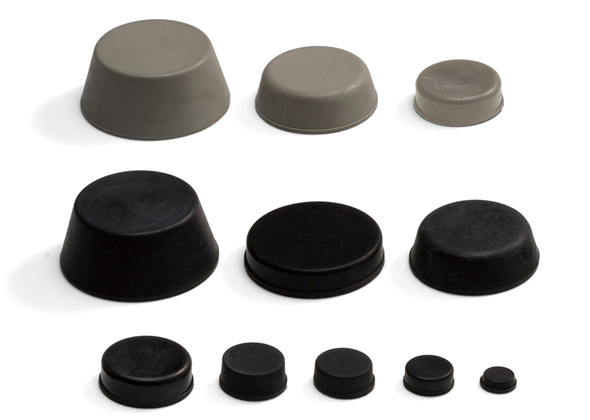

LOW COST ADHESIVE RUBBER FEET - B series
