CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series1
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series2
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series3
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series4
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series5
CUSTOM SIZED FLANGED STAINLESS STEEL ENCLOSURE - MBSF series6

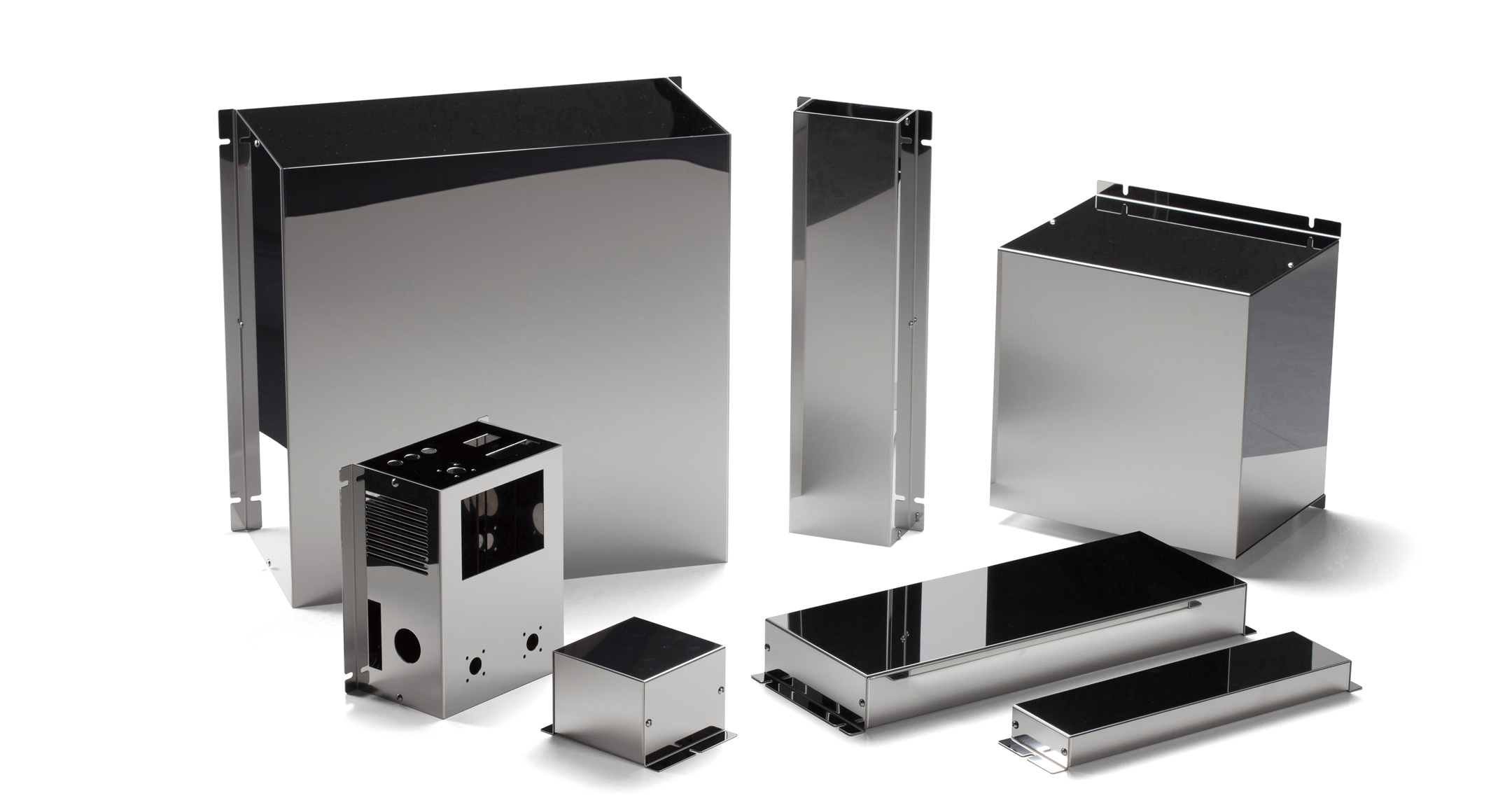

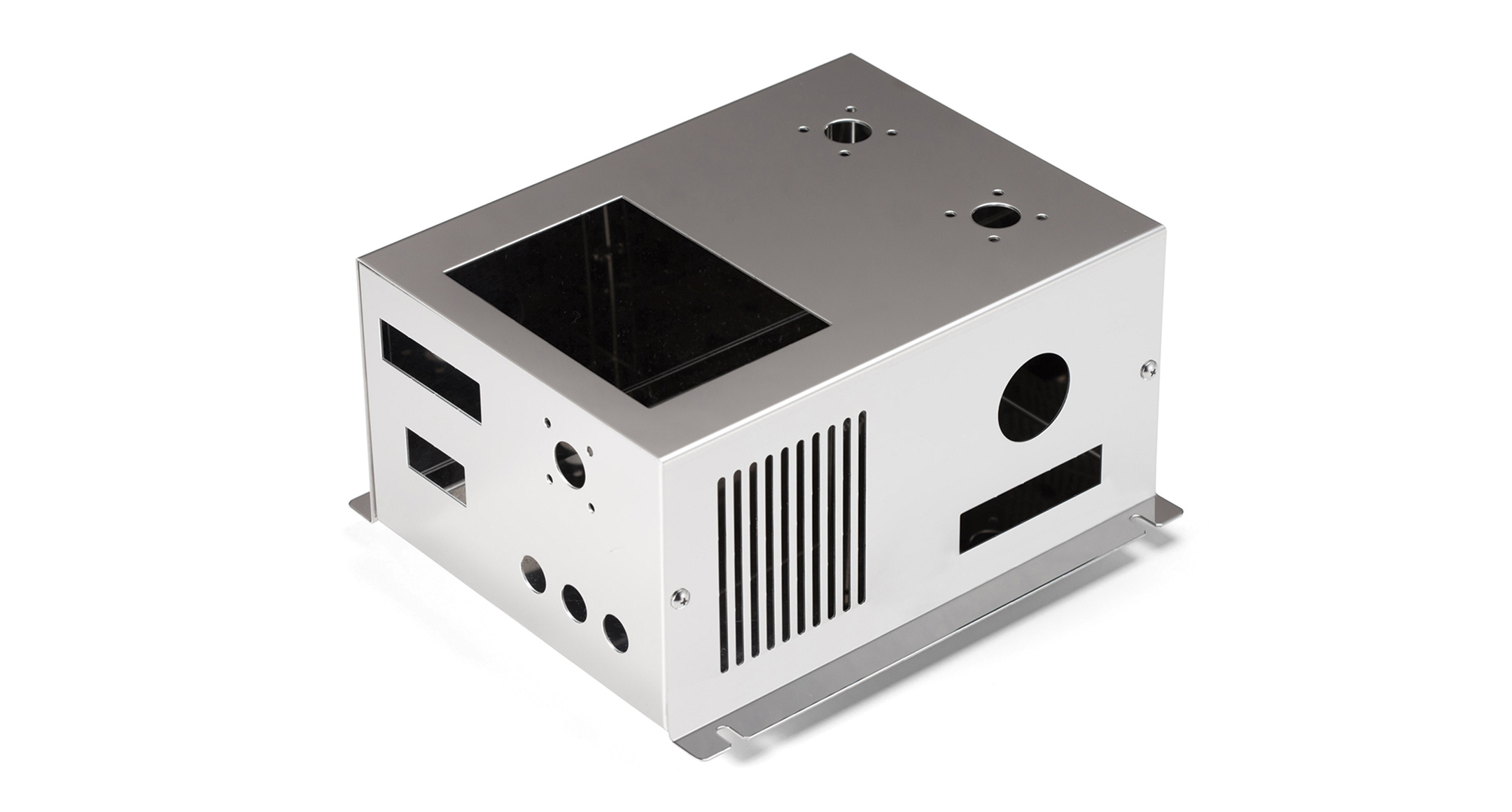

Custom sized, simple, stainless steel enclosure with wall mounting flange.
SUS304 stainless steel allowing the enclosure to be conductive.

All W, H, and D dimensions can be specified as 50~500mm for W dimension, 50~400mm for D dimension, and 20~250mm for H dimension in 1mm intervals.

PRODUCT NO. / DIMENSIONS

Product No. Steel thickness Base type Wall mount flange hole Fixing screws PDF DXF DWG
MBSF□-□-□A10-2 ・ Depth shorter than 300mm 1.0mm Reinforced 2 4 pcs PDF DXF DWG
MBSF□-□-□A10-2 ・ Depth longer than 301mm 1.0mm Reinforced 2 6 pcs PDF DXF DWG
MBSF□-□-□B10-2 ・ Depth shorter than 300mm 1.0mm Reinforced 2 4 pcs PDF DXF DWG
MBSF□-□-□B10-2 ・ Depth longer than 301mm 1.0mm Reinforced 2 6 pcs PDF DXF DWG
MBSF□-□-□B12-2 ・ Depth shorter than 300mm 1.2mm Reinforced 2 4 pcs PDF DXF DWG
MBSF□-□-□B12-2 ・ Depth longer than 301mm 1.2mm Reinforced 2 6 pcs PDF DXF DWG
MBSF□-□-□A10-4 ・ Depth shorter than 300mm 1.0mm Reinforced 4 4 pcs PDF DXF DWG
MBSF□-□-□A10-4 ・ Depth longer than 301mm 1.0mm Reinforced 4 6 pcs PDF DXF DWG
MBSF□-□-□B10-4 ・ Depth shorter than 300mm 1.0mm Reinforced 4 4 pcs PDF DXF DWG
MBSF□-□-□B10-4 ・ Depth longer than 301mm 1.0mm Reinforced 4 6 pcs PDF DXF DWG
MBSF□-□-□B12-4 ・ Depth shorter than 300mm 1.2mm Reinforced 4 4 pcs PDF DXF DWG
MBSF□-□-□B12-4 ・ Depth longer than 301mm 1.2mm Reinforced 4 6 pcs PDF DXF DWG
