CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series1
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series2
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series3
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series4
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series5
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series6

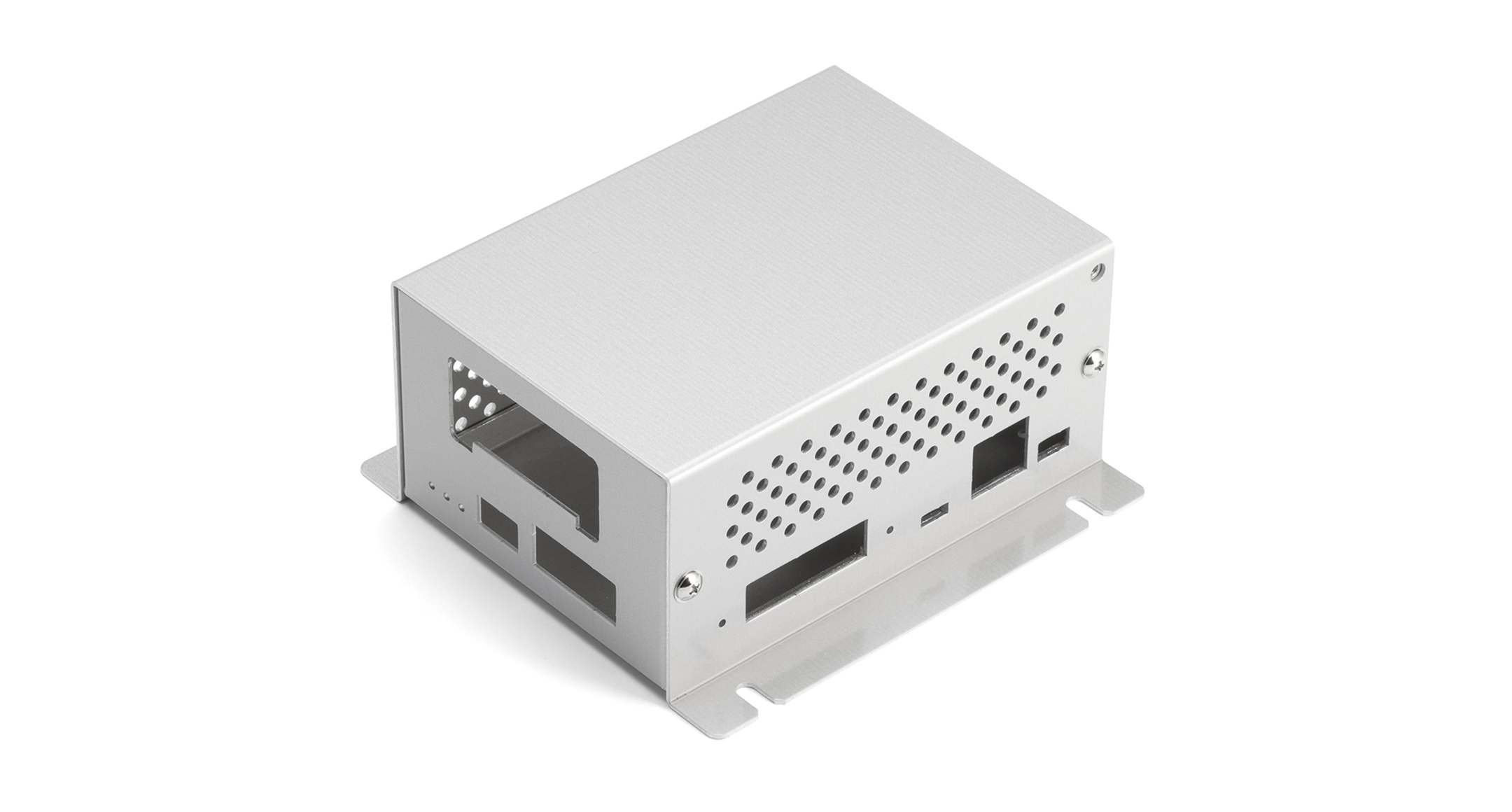

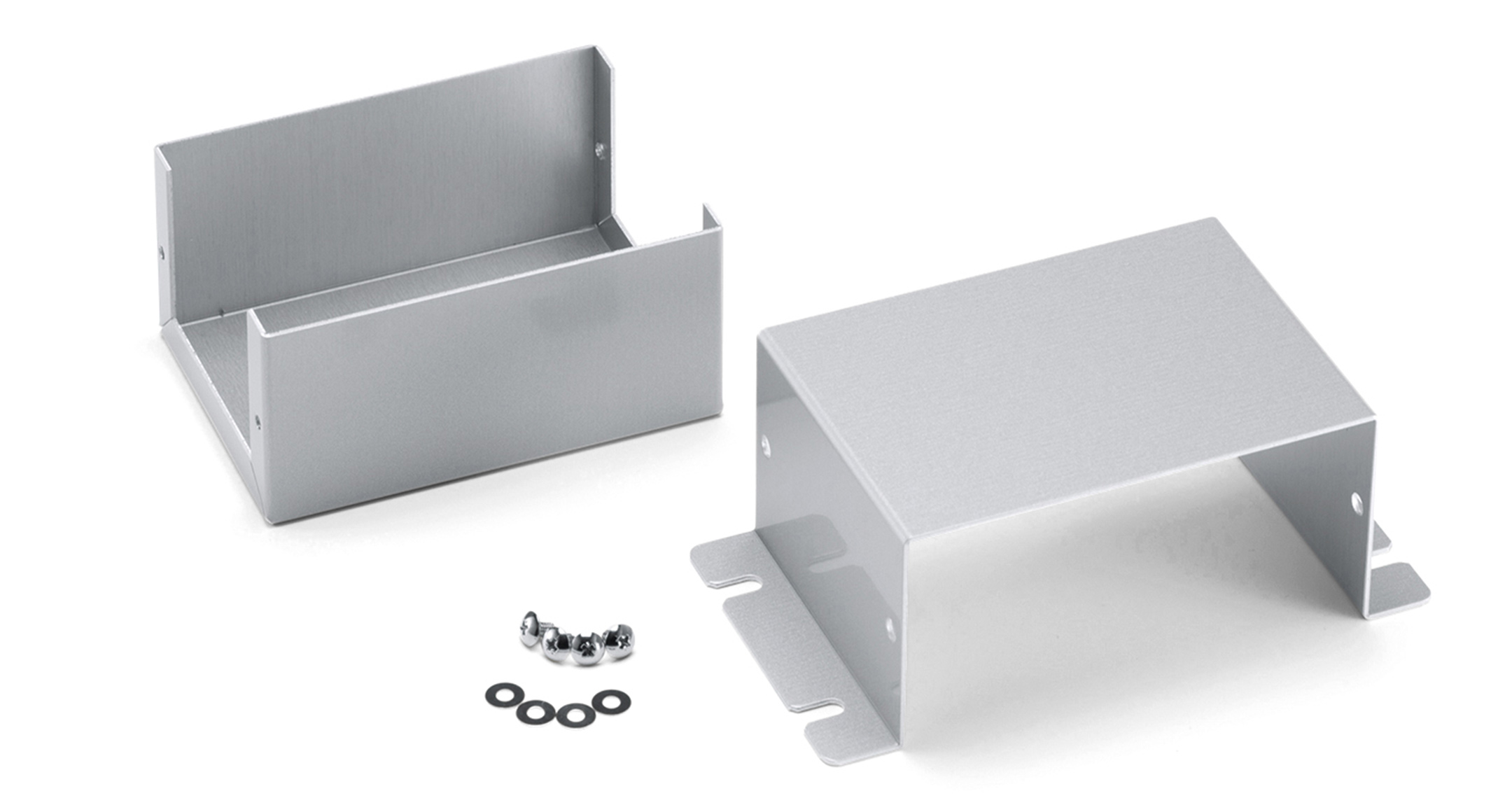

Custom sized, simple, low-cost aluminum case with wall mounting flange.
The inner surface is unfinished, allowing the enclosure to be conductive.

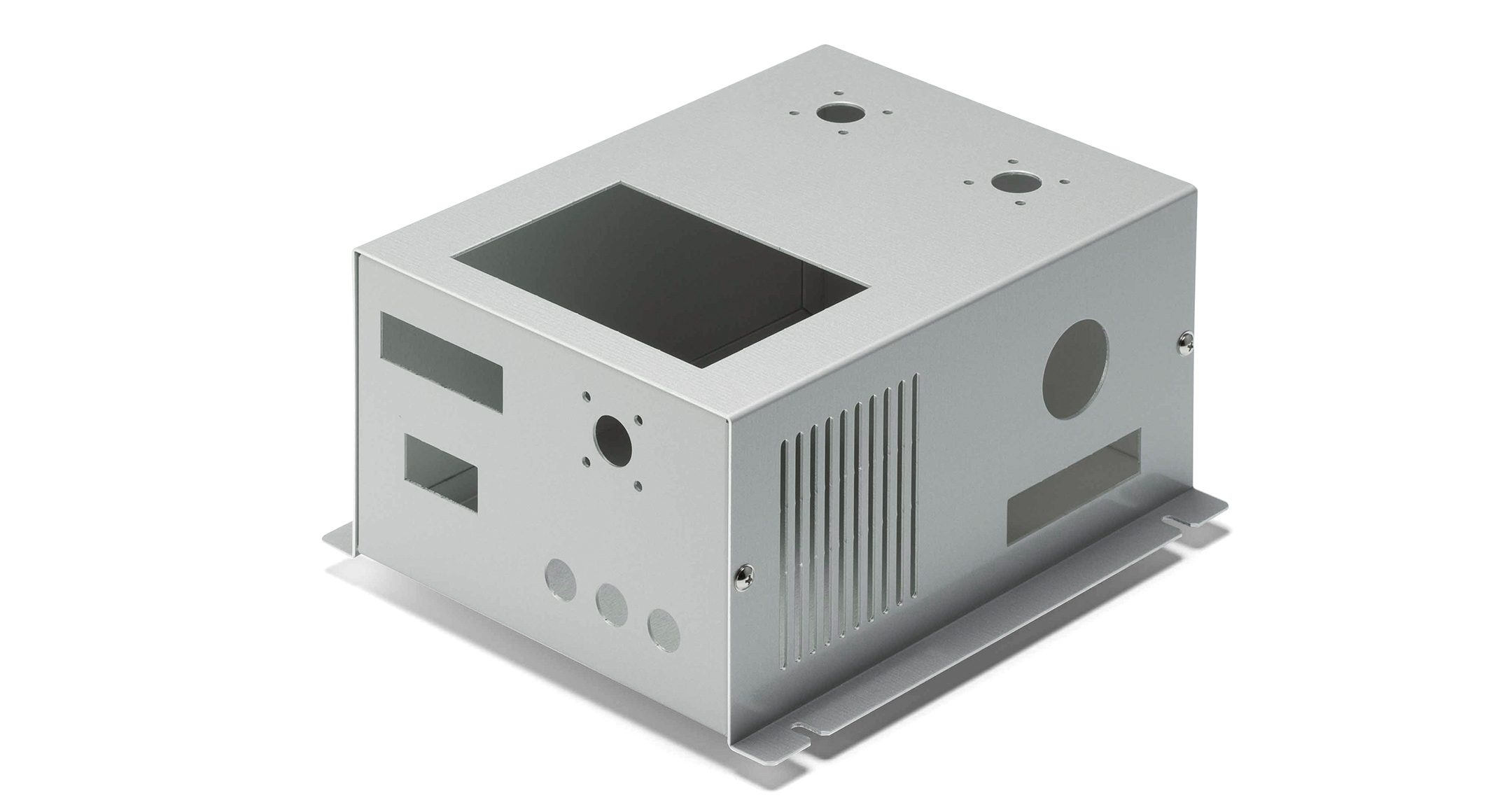

All W, H, and D dimensions can be specified as 50～500mm for W and D dimensions and 20～250mm for H dimension in 1mm intervals.
3D View 

PRODUCT NO. / DIMENSIONS

Product No. Aluminum thickness Base type Wall mount flange hole Fixing screws PDF DXF DWG
MBCF□-□-□A12-2 ・ Depth shorter than 300mm 1.2mm Normal 2 holes 4 pcs PDF DXF DWG
MBCF□-□-□A12-2 ・ Depth longer than 301mm 1.2mm Normal 2 holes 6 pcs PDF DXF DWG
MBCF□-□-□B12-2 ・ Depth shorter than 300mm 1.2mm Reinforced 2 holes 4 pcs PDF DXF DWG
MBCF□-□-□B12-2 ・ Depth longer than 301mm 1.2mm Reinforced 2 holes 6 pcs PDF DXF DWG
MBCF□-□-□B15-2 ・ Depth shorter than 300mm 1.5mm Reinforced 2 holes 4 pcs PDF DXF DWG
MBCF□-□-□B15-2 ・ Depth longer than 301mm 1.5mm Reinforced 2 holes 6 pcs PDF DXF DWG
MBCF□-□-□A12-4 ・ Depth shorter than 300mm 1.2mm Normal 4 holes 4 pcs PDF DXF DWG
MBCF□-□-□A12-4 ・ Depth longer than 301mm 1.2mm Normal 4 holes 6 pcs PDF DXF DWG
MBCF□-□-□B12-4 ・ Depth shorter than 300mm 1.2mm Reinforced 4 holes 4 pcs PDF DXF DWG
MBCF□-□-□B12-4 ・ Depth longer than 301mm 1.2mm Reinforced 4 holes 6 pcs PDF DXF DWG
MBCF□-□-□B15-4 ・ Depth shorter than 300mm 1.5mm Reinforced 4 holes 4 pcs PDF DXF DWG
MBCF□-□-□B15-4 ・ Depth longer than 301mm 1.5mm Reinforced 4 holes 6 pcs PDF DXF DWG
