DIN-RAIL MOUNT BRACKET - DRM-1 series


DRM-1 Series -PDF

CATEGORY:DIN Rail mounting bracket, DIN Rail mounting base, DIN Rail mounting plate, DIN Rail adapter

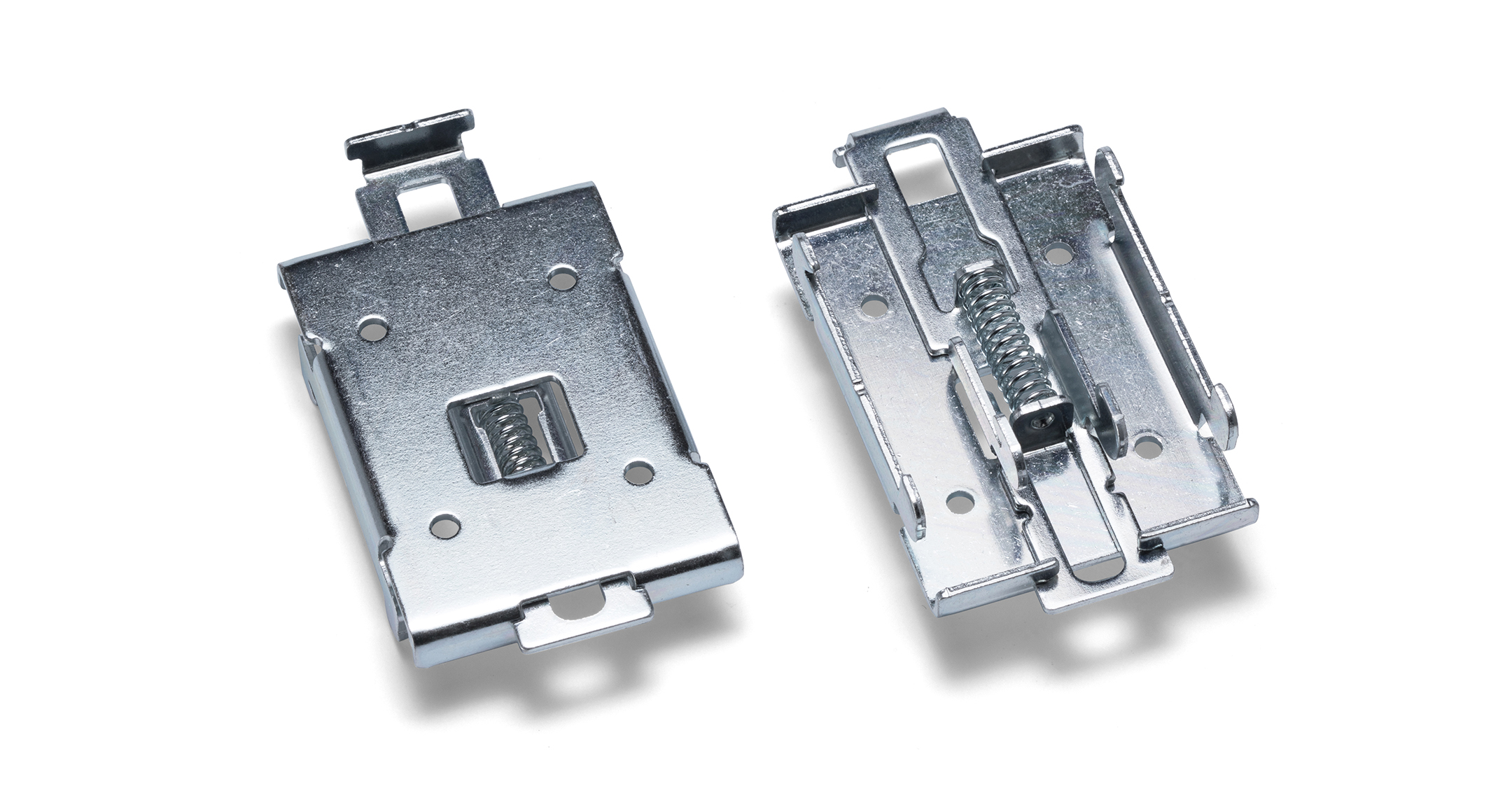

DIN-RAIL MOUNT BRACKET - DRM-1 series
DIN-RAIL MOUNT BRACKET - DRM-1 series
DIN-RAIL MOUNT BRACKET - DRM-1 series1
DIN-RAIL MOUNT BRACKET - DRM-1 series2

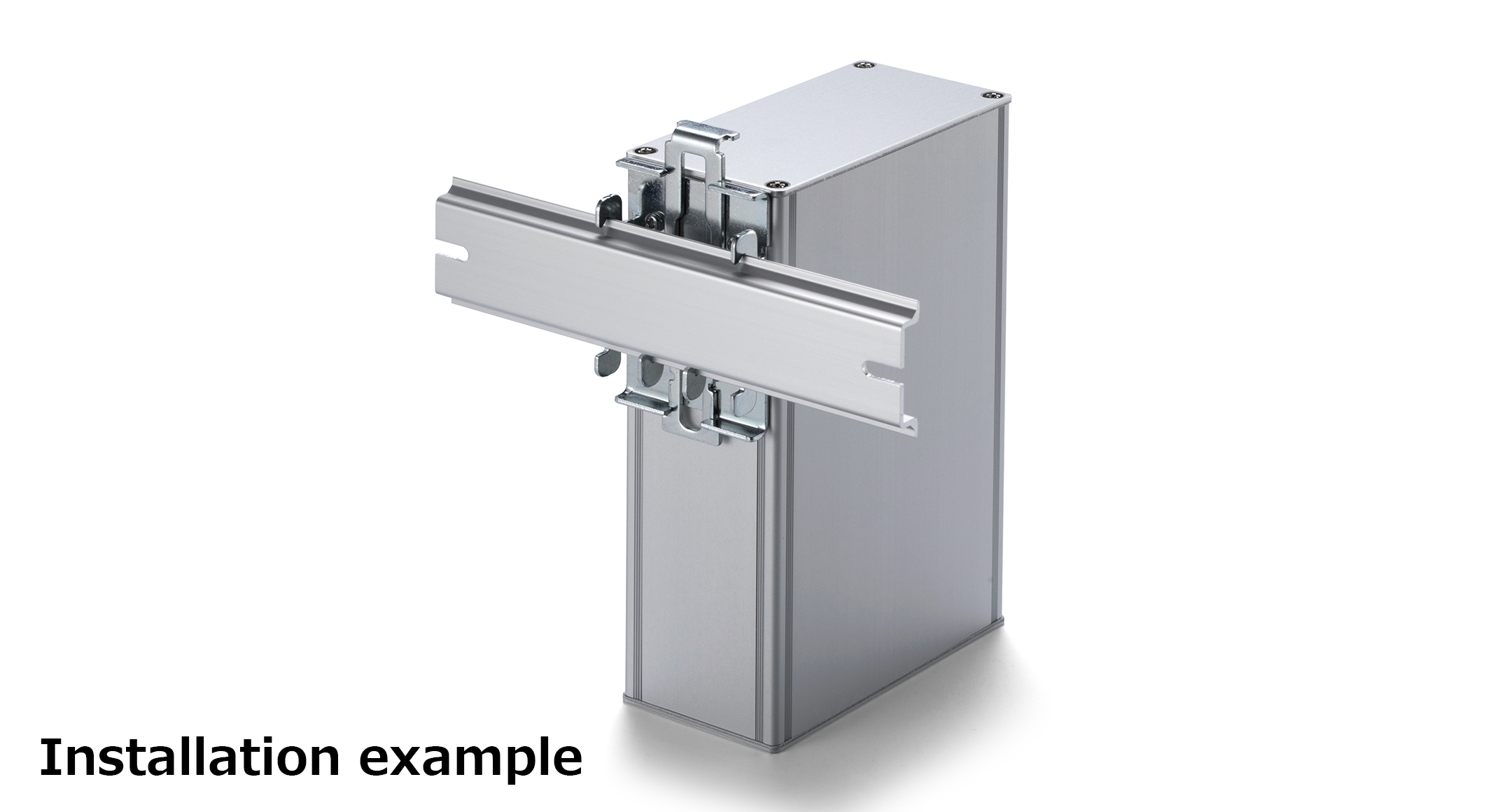

For installation of enclosures, PCB and other parts onto a DIN rail.
Robust metallic material allows rigid mounting on DIN rails.
Simple installation and removal via the pull lever.

Max load : 10kg

【Materials】
Base, Lever : Plated steel
Spring : Steel

PRODUCT NO. / DIMENSIONS

Product No. External dimensions (W×H×D) Weight (g) PDF DXF DWG
DRM-1 44.2×65.2×19.4 57.5 PDF DXF DWG
