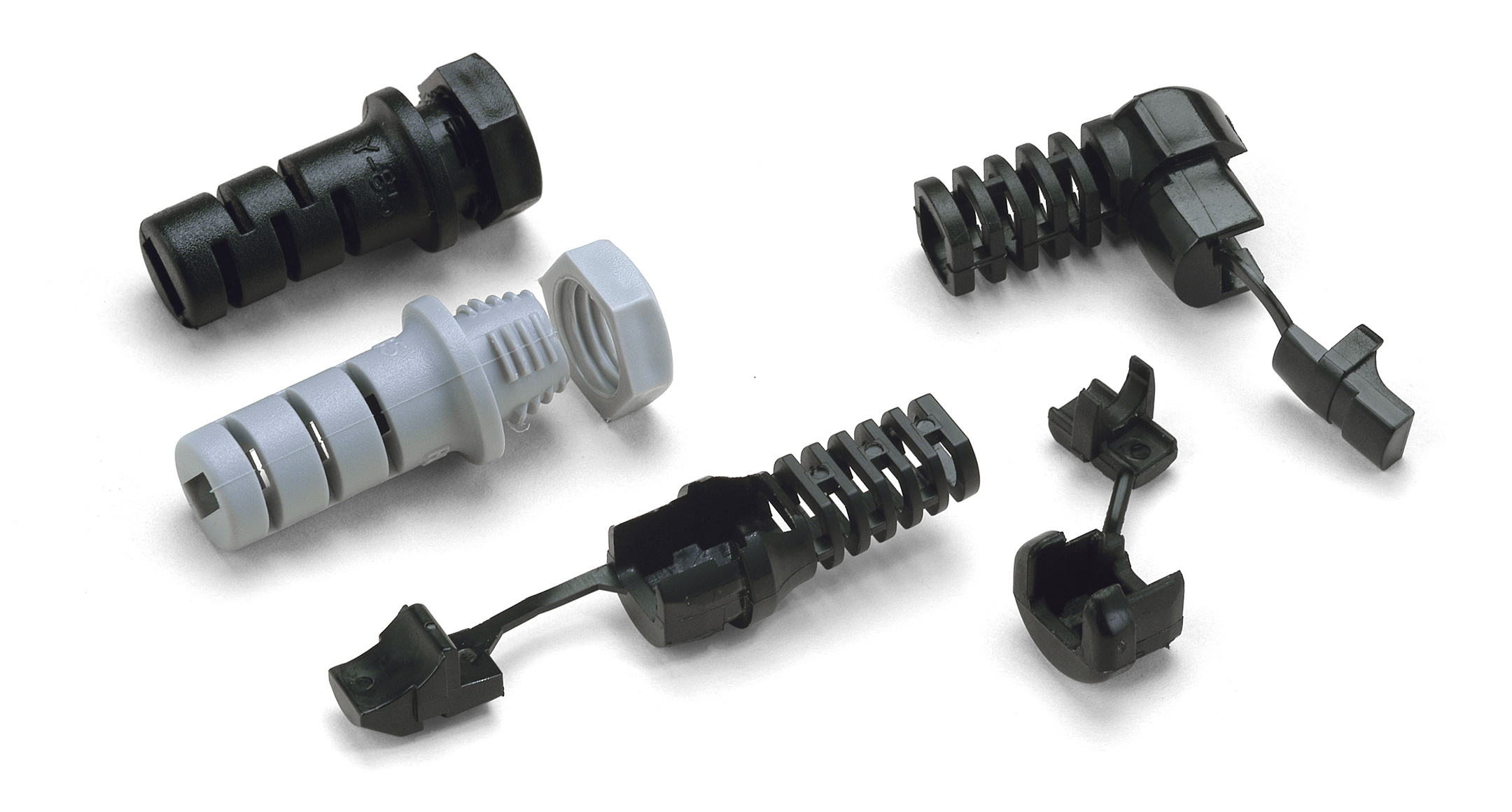

CABLE BUSHING - CP series


CP Series -PDF

CATEGORY:Cable bushing, Cable bush, Cable strain relief, Cord stopper, Cord protector

CABLE BUSHING - CP series
CABLE BUSHING - CP series1
Cord protector for protection against cord twists and breakage.
Nut can be secured from the back side of the panel for additional stability.

Sold in 10 pcs pack.

PRODUCT NO. / DIMENSIONS

Product No. Cord diameter Panel thickness Color / Similar matching Weight (g) / 1pcs Pack of Inventory status PDF DXF DWG
CP-Y85B VFF0.75×2 1.5 - 2.0mm Black / PANTONE Black 6C 1.9 10 pcs PDF DXF DWG
CP-Y85G VFF0.75×2 1.5 - 2.0mm Light gray / PANTONE 429C 1.9 10 pcs PDF DXF DWG
CP-127B φ5.8 - φ6.8 1.5 - 2.0mm Black / PANTONE Black 6C 3.4 10 pcs PDF DXF DWG
CP-127G φ5.8 - φ6.8 1.5 - 2.0mm Light gray / PANTONE 429C 3.3 10 pcs Discontinued - Sold out. DXF DWG
