MOUNTING PLATE for UC・UCG - UCC series


UCC Series -PDF

CATEGORY:Aluminum mounting plate, Mount plate, Mounting base

MOUNTING PLATE for UC・UCG - UCC series
MOUNTING PLATE for UC・UCG - UCC series1

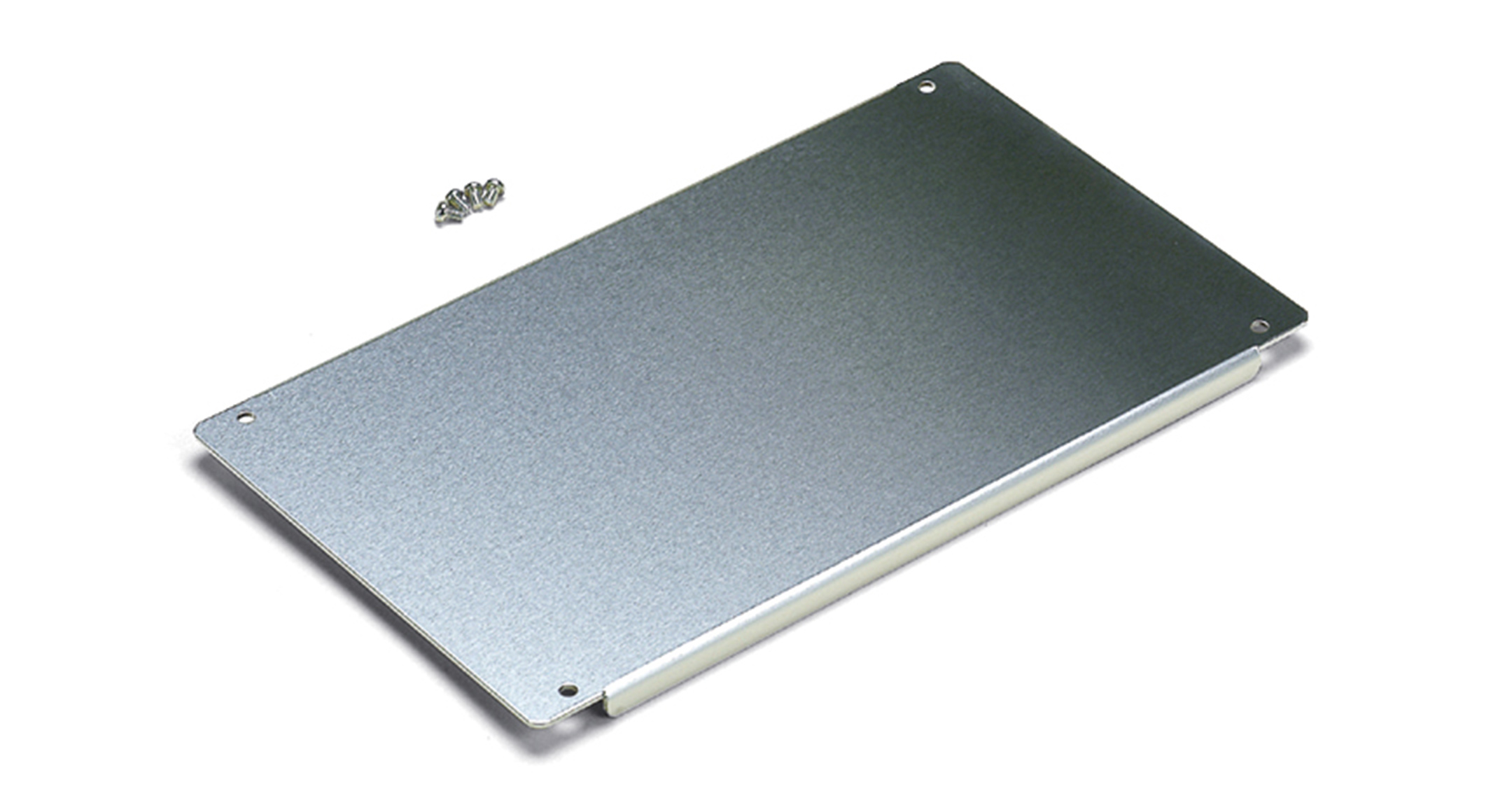

Aluminum mounting plate for UC・UCG series.
Plate material : Aluminum thickness 1.5mm

UCK bracket is needed to install the UCC mounting plate.
*UCK bracket is sold separately.

PRODUCT NO. / DIMENSIONS

Product No. Suitable case Weight (g) PDF DXF DWG
UCC6-8 UC6-3-8 13 PDF DXF DWG
UCC7-10 UC7-3-10 21 PDF DXF DWG
UCC7-14 UC7-8-14 24 PDF DXF DWG
UCC8-6 UC8-3-6 13 PDF DXF DWG
UCC9-12 UC9-5-12 30 PDF DXF DWG
UCC10-14 UC10-4-14 34 PDF DXF DWG
UCC10-18 UC10-11-18 47 PDF DXF DWG
UCC11-8 UC11-3-8・UC11-5-8 25 PDF DXF DWG
UCC12-16 UC12-7-16 48 PDF DXF DWG
UCC12-22 UC12-14-22・UCY12-14-22 73 PDF DXF DWG
UCC13-18 UC13-4-18 63 PDF DXF DWG
UCC14-10 UC14-4-10・UC14-6-10 43 PDF DXF DWG
UCC15-12 UC15-10-12 54 PDF DXF DWG
UCC15-20 UC15-8-20・UCG15-9-20 85 PDF DXF DWG
UCC15-28 UC15-18-28・UCY15-18-28 140 PDF DXF DWG
UCC16-22 UC16-5-22 113 PDF DXF DWG
UCC17-12 UC17-5-12・UC17-7-12 61 PDF DXF DWG
UCC18-24 UC18-10-34・UCY18-10-34・UCG18-10-24 138 PDF DXF DWG
UCC18-34 UC18-21-34 209 PDF DXF DWG
UCC20-14 UC20-5-14・UC20-8-14・UCG20-9-24 83 PDF DXF DWG
UCC20-16 UC20-12-16 95 PDF DXF DWG
UCC22-26 UC22-12-26 188 PDF DXF DWG
UCC24-34 UC24-14-34 285 PDF DXF DWG
UCC26-18 UC26-5-18・UC26-10-18・UCG26-10-18 145 PDF DXF DWG
UCC26-20 UC26-7-20 165 PDF DXF DWG
UCC32-22 UC32-5-22・UC32-12-22・UCG32-12-22 230 PDF DXF DWG
UCC32-24 UC32-8-24 253 PDF DXF DWG
UCC35-26 UC35-13-26 313 PDF DXF DWG
UCC43-28 UC43-5-28・UC43-14-28 418 PDF DXF DWG
