DIECAST ALUMINIUM TERMINAL JUNCTION BOX - TMA series


TMA Series -PDF

CATEGORY:Aluminium junction box, Terminal block box, Terminal enclosure, IP65 Diecast aluminum enclosure

DIECAST ALUMINIUM TERMINAL JUNCTION BOX - TMA series
DIECAST ALUMINIUM TERMINAL JUNCTION BOX - TMA series
DIECAST ALUMINIUM TERMINAL JUNCTION BOX - TMA series
DIECAST ALUMINIUM TERMINAL JUNCTION BOX - TMA series1
DIECAST ALUMINIUM TERMINAL JUNCTION BOX - TMA series2
DIECAST ALUMINIUM TERMINAL JUNCTION BOX - TMA series3
IP65 protection class and impact resistant diecast aluminium terminal junction box.
Diecast aluminum box has superior heat dissipation, heat resistance, and oil resistance compared to plastic box.

Protection class : IP65
Operating temperature : -40℃ ~ +80℃
Recommended torque : 1N・m

Terminal block spec
Rated voltage : 400V
Rated current : 17.5A
Applicable wire : 1.5m㎡
Standard tightening torque : 0.8N・m
Color : Gray (Similar to Munsell 5B6/1)

Available in 6 different sizes with 6 to 30 poles configurations.

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Number of poles Rated voltage/current Applicable wire Weight (g) PDF DXF DWG
W H D
TMA-6P 75 57.5 80 6P AC400V 17.5A 1.5m㎡ 341 PDF DXF DWG
TMA-9P 100 80 100 9P AC400V 17.5A 1.5m㎡ 642 PDF DXF DWG
TMA-15P 160 80 100 15P AC400V 17.5A 1.5m㎡ 867 PDF DXF DWG
TMA-20P 220 80 120 10P×2 AC400V 17.5A 1.5m㎡ 1394 PDF DXF DWG
TMA-20P-AS 150 90 132 20P AC400V 17.5A 1.5m㎡ 1426 PDF DXF DWG
TMA-30P-AS 220 80 120 15P×2 AC400V 17.5A 1.5m㎡ 1529 PDF DXF DWG

OPTIONAL PARTS

1

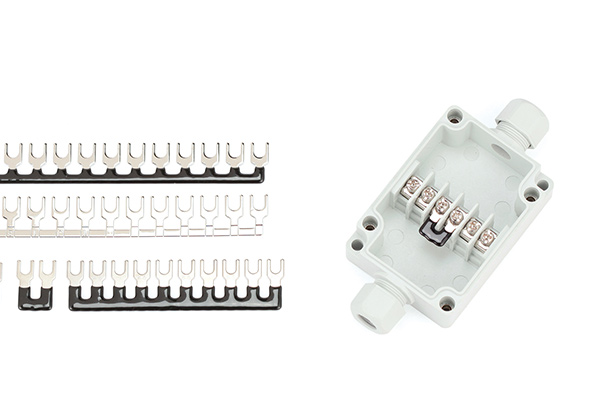

SHORTING BAR - SBR series
