BLIND PLUG with O-ring - SHP series


SHP Series -PDF

CATEGORY：Blind plug, Hole plug, Screw plug, Hole cover

BLIND PLUG with O-ring - SHP series
BLIND PLUG with O-ring - SHP series
BLIND PLUG with O-ring - SHP series1
BLIND PLUG with O-ring - SHP series2

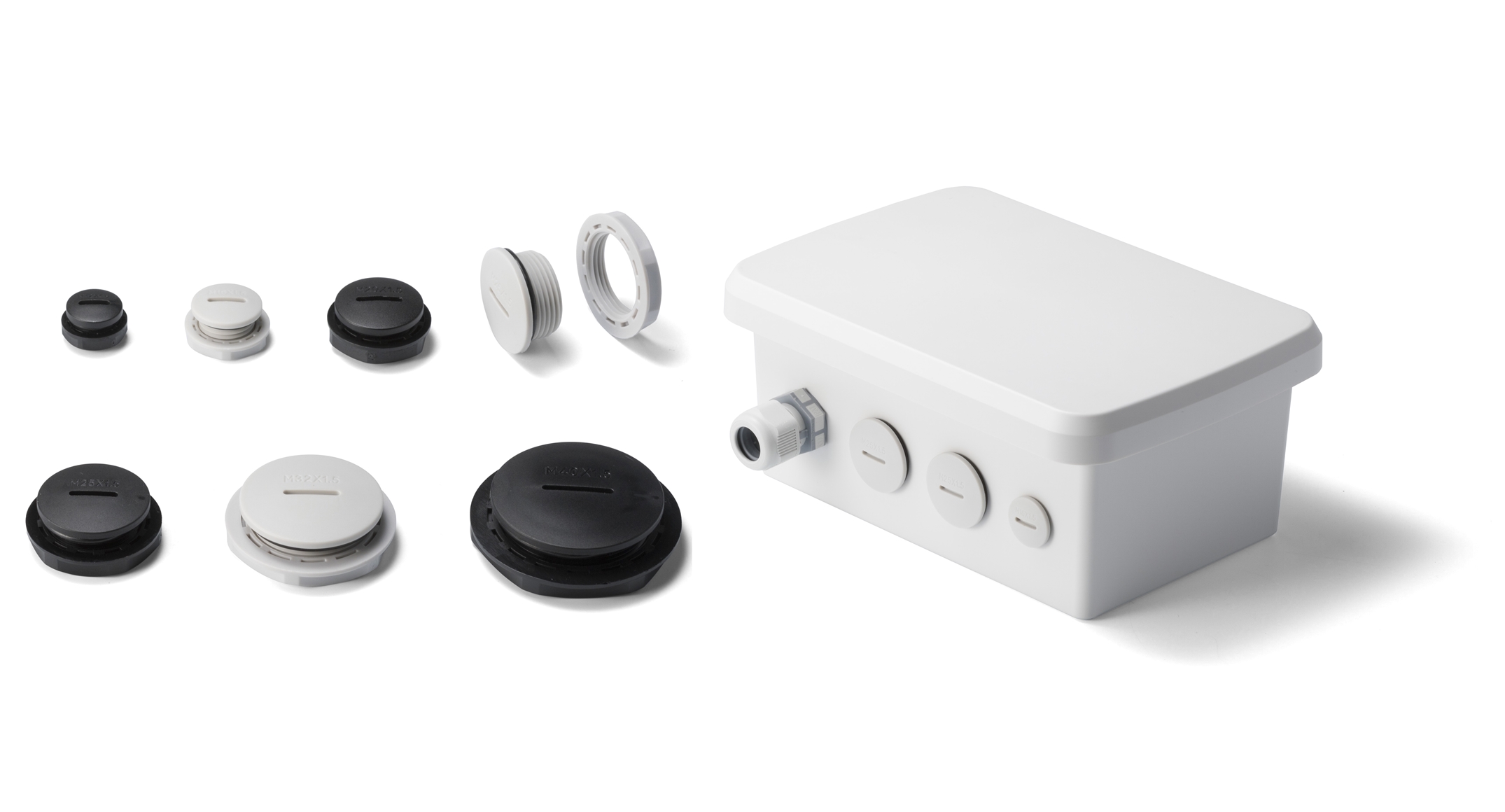

Hole plug for sealing holes that are not in use.

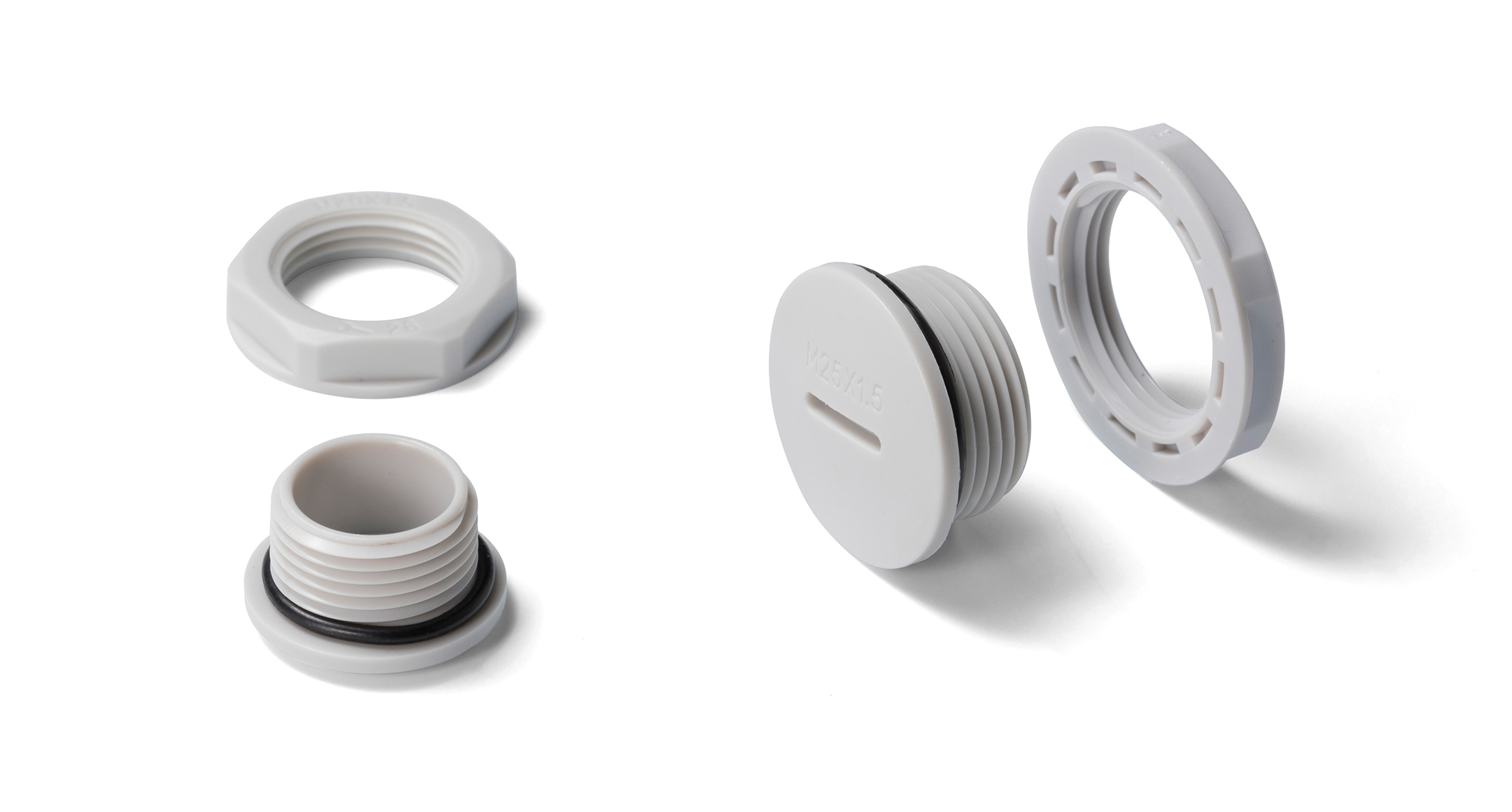

IP67 rating is achieved through the use of a lock nut.
Available in 6 sized for φ12.2 to φ40.3 holes in Black and Light gray colors.

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole (mm) Color / Similar matching Weight (g) Pack of PDF DXF DWG
SHP-12B M12×1.5 φ12.2 Black / RAL9005 2 1 pc PDF DXF DWG
SHP-12S M12×1.5 φ12.2 Light Gray / RAL7035 2 1 pc PDF DXF DWG
SHP-16B M16×1.5 φ16.2 Black / RAL9005 3 1 pc PDF DXF DWG
SHP-16S M16×1.5 φ16.2 Light Gray / RAL7035 3 1 pc PDF DXF DWG
SHP-20B M20×1.5 φ20.2 Black / RAL9005 5 1 pc PDF DXF DWG
SHP-20S M20×1.5 φ20.2 Light Gray / RAL7035 5 1 pc PDF DXF DWG
SHP-25B M25×1.5 φ25.2 Black / RAL9005 7.5 1 pc PDF DXF DWG
SHP-25S M25×1.5 φ25.2 Light Gray / RAL7035 7.5 1 pc PDF DXF DWG
SHP-32B M32×1.5 φ32.3 Black / RAL9005 11.5 1 pc PDF DXF DWG
SHP-32S M32×1.5 φ32.3 Light Gray / RAL7035 11.5 1 pc PDF DXF DWG
SHP-40B M40×1.5 φ40.3 Black / RAL9005 18 1 pc PDF DXF DWG
SHP-40S M40×1.5 φ40.3 Light Gray / RAL7035 18 1 pc PDF DXF DWG
