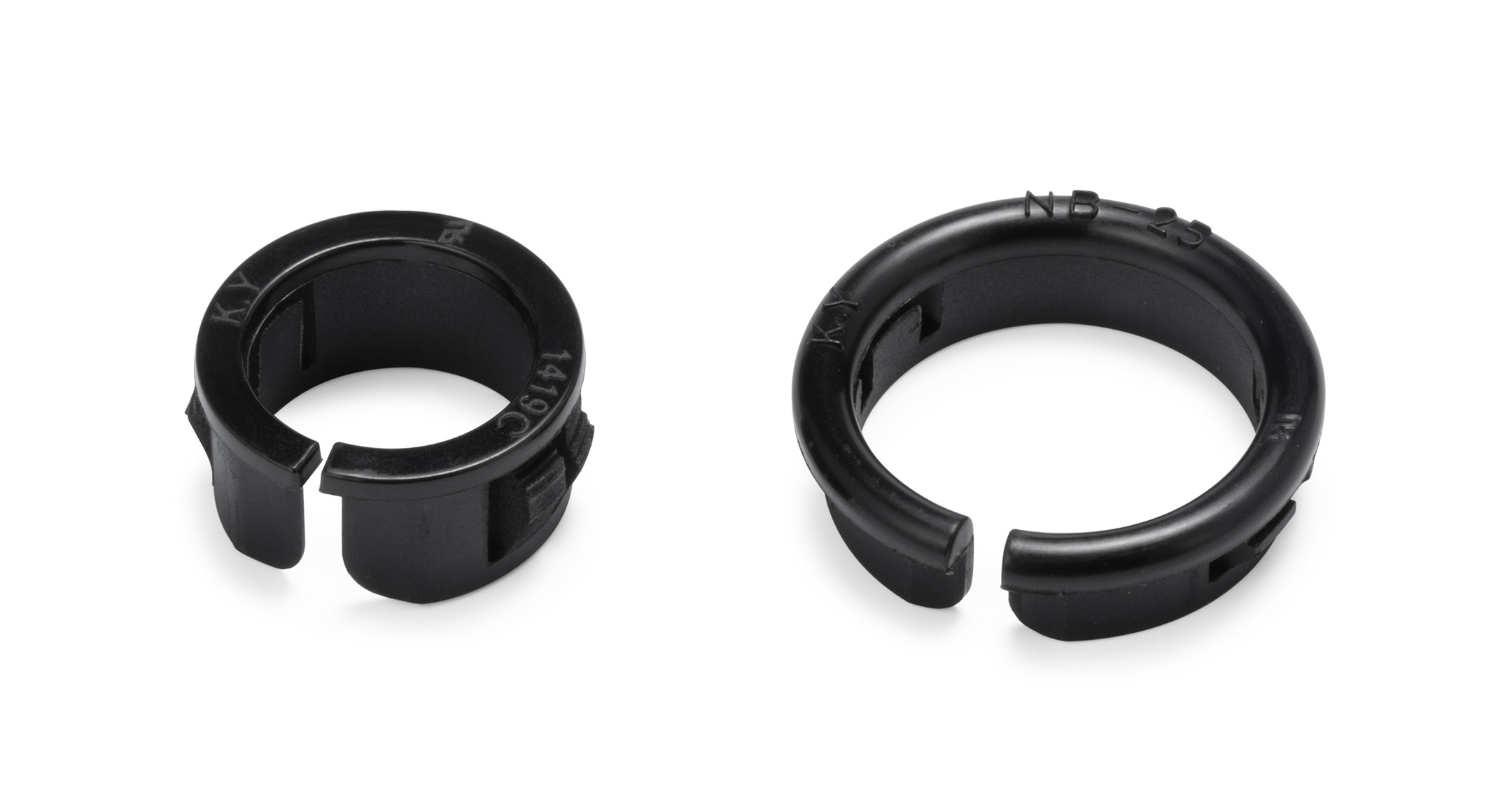

CATEGORY：Nylon grommet, Nylon bushing, Cable Bushing

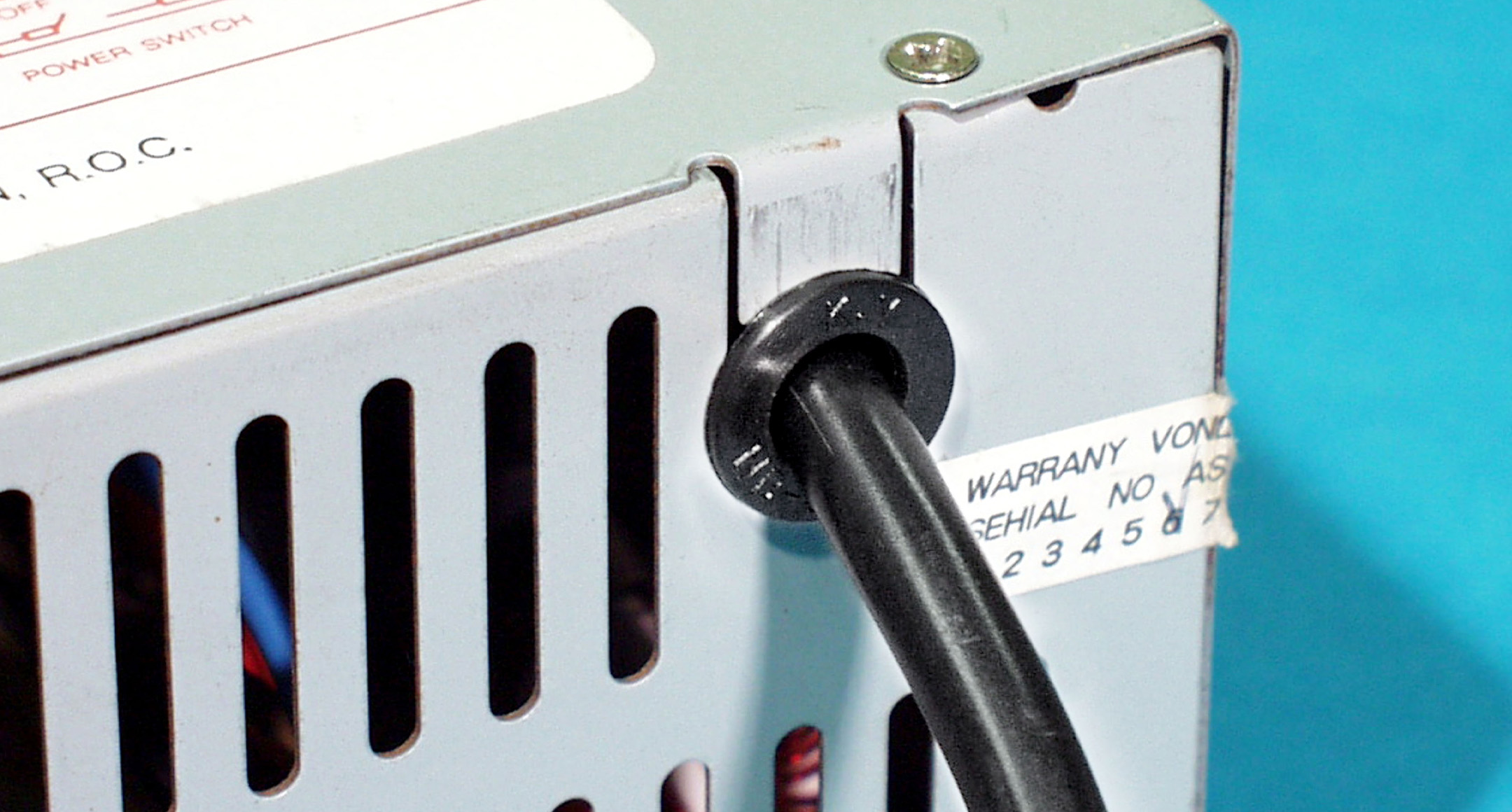

Bushing grommet to be installed on the cut edge of the hole to protect cables and components from damage.
Total 11 different sizes available for selection.
Material : PA66 Color : Black
Mounting thickness (mm) : φ9.5～φ25.4
Total 11 different sizes available for selection.
Material : PA66 Color : Black
Mounting thickness (mm) : φ9.5～φ25.4
PRODUCT NO. / DIMENSIONS
| Product No. | Mounting hole (φ) | Cable range (φ) | Mounting thickness (mm) | Weight (g) | Pack of | DXF | DWG | STP | |
|---|---|---|---|---|---|---|---|---|---|
| NB7-15 | 9.5 | 7.3 | 0.6～1.6 | 0.2 (1 piece) | 10 pcs | DXF | DWG | ||
| NB8-10 | 9.5 | 7.6 | 0.8～1.2 | 0.2 (1 piece) | 10 pcs | DXF | DWG | ||
| NB10-35 | 12.7 | 9.7 | 0.8～3.3 | 0.5 (1 piece) | 10 pcs | DXF | DWG | ||
| NB11-30 | 14.3 | 10.6 | 0.8～3.2 | 0.5 (1 piece) | 10 pcs | DXF | DWG | ||
| NB11-10 | 12.7 | 10.8 | 0.8～1.2 | 0.4 (1 piece) | 10 pcs | DXF | DWG | ||
| NB13-35 | 15.9 | 12.8 | 0.8～3.3 | 0.7 (1 piece) | 10 pcs | DXF | DWG | ||
| NB14-10 | 15.9 | 14.1 | 0.8～1.0 | 0.5 (1 piece) | 10 pcs | DXF | DWG | ||
| NB15-35 | 19.5 | 15.1 | 0.8～3.3 | 0.9 (1 piece) | 10 pcs | DXF | DWG | ||
| NB17-10 | 19.5 | 16.5 | 0.8～1.0 | 0.7 (1 piece) | 10 pcs | DXF | DWG | ||
| NB20-10 | 22 | 20 | 0.8～1.0 | 0.8 (1 piece) | 10 pcs | DXF | DWG | ||
| NB22-15 | 25.4 | 22 | 0.8～1.6 | 1.3 (1 piece) | 10 pcs | DXF | DWG |
