RACK MOUNT ALUMINUM ENCLOSURE - MOR series

RACK MOUNT ALUMINUM ENCLOSURE - MOR series

MOR Series -PDF

CATEGORY：19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount aluminum chassis

RACK MOUNT ALUMINUM ENCLOSURE - MOR series

RACK MOUNT ALUMINUM ENCLOSURE - MOR series1

RACK MOUNT ALUMINUM ENCLOSURE - MOR series2

RACK MOUNT ALUMINUM ENCLOSURE - MOR series3

RACK MOUNT ALUMINUM ENCLOSURE - MOR series4

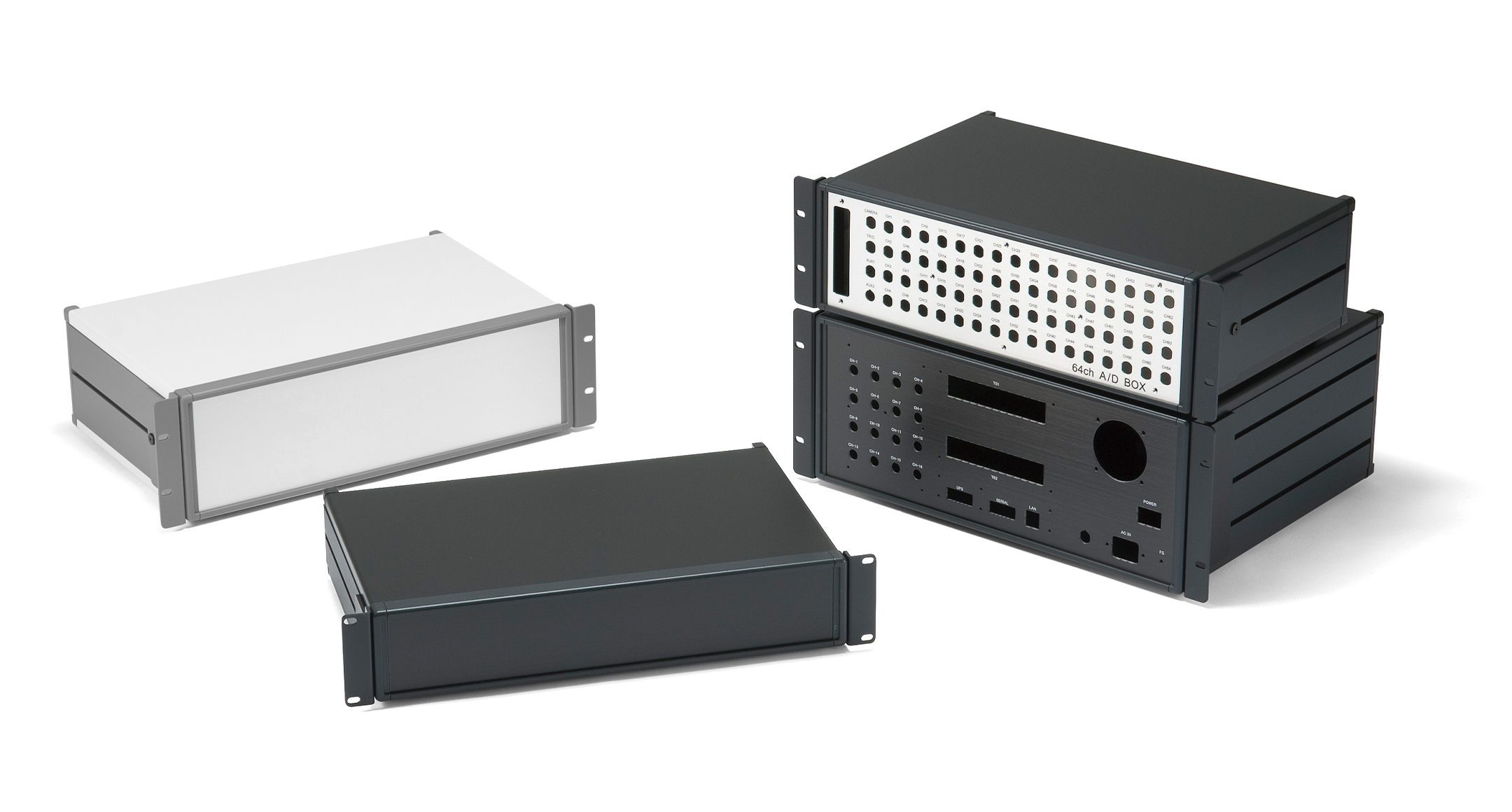

19” rack mount aluminium enclosure with rounded corners.
Relatively light-weight as top/bottom covers are made of aluminium.
Screws are hidden out of view for a sophisticated and elegant look.

Available in 28 different sizes for 2U, 3U, 4U, and 5U rack height and 3 colors.

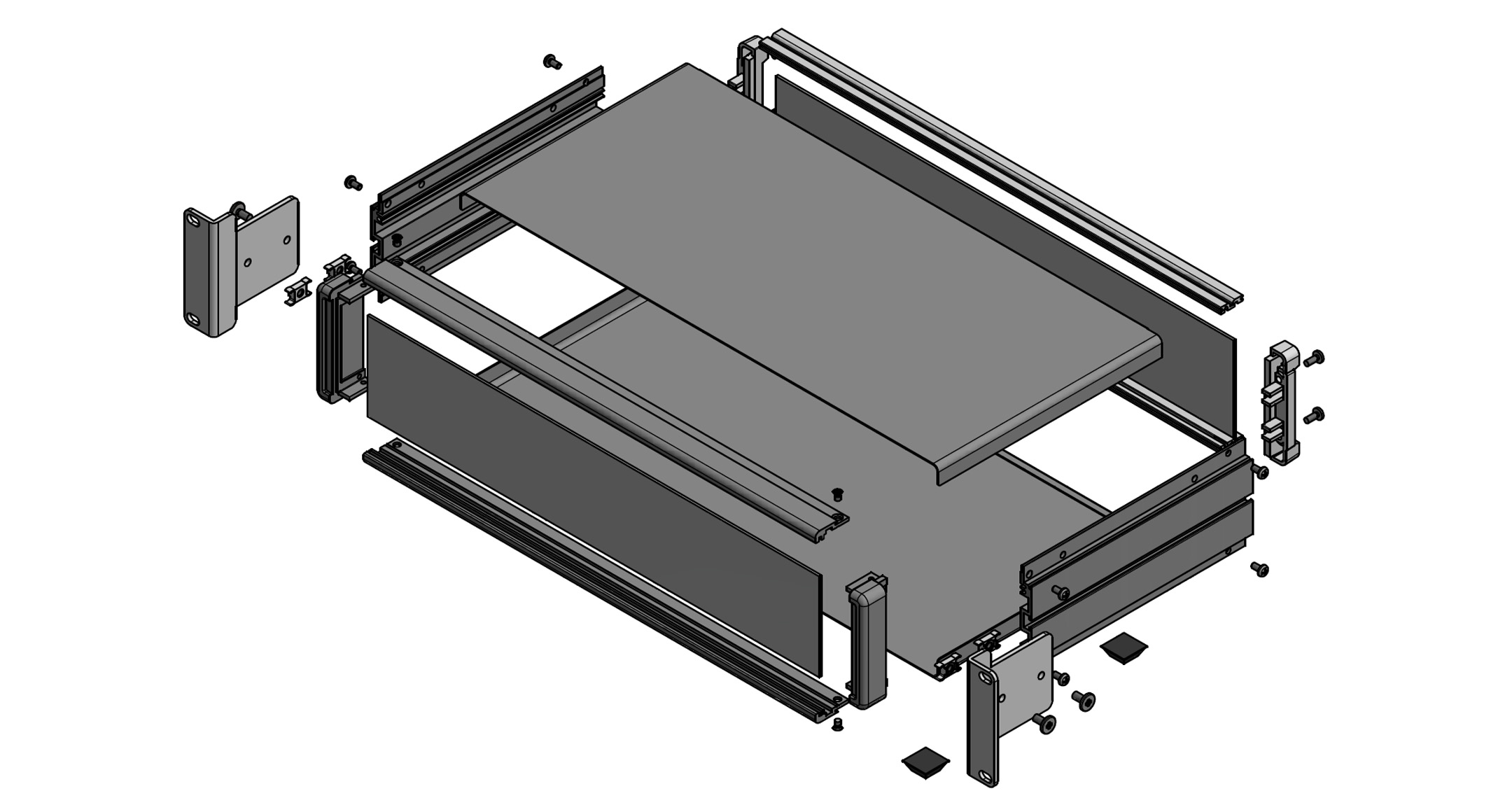

3D View - Gray/Silver 3D View - Back/Silver Exploded View Color Change Notice Color code

COLOR TYPE

GSGray/Silver

RACK MOUNT ALUMINUM ENCLOSURE - MOR series:Gray/Silver

BSBlack/Silver

RACK MOUNT ALUMINUM ENCLOSURE - MOR series:Black/Silver

BBlack/Black

RACK MOUNT ALUMINUM ENCLOSURE - MOR series:Black/Black

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Weight (g)	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Weight (g)	PDF	DXF	DWG	STP
MOR88-43-23□	430	88	230	400	71.5	205	2200	PDF	DXF	DWG
MOR88-43-28□	430	88	280	400	71.5	255	2400	PDF	DXF	DWG
MOR88-43-35□	430	88	350	400	71.5	325	2800	PDF	DXF	DWG
MOR88-43-45□	430	88	450	400	71.5	425	3400	PDF	DXF	DWG
MOR133-43-23□	430	132.5	230	400	116	205	2700	PDF	DXF	DWG
MOR133-43-28□	430	132.5	280	400	116	255	3000	PDF	DXF	DWG
MOR133-43-35□	430	132.5	350	400	116	325	3400	PDF	DXF	DWG
MOR133-43-45□	430	132.5	450	400	116	425	4000	PDF	DXF	DWG
MOR177-43-23□	430	177	230	400	160.5	205	3400	PDF	DXF	DWG
MOR177-43-28□	430	177	280	400	160.5	255	3700	PDF	DXF	DWG
MOR177-43-35□	430	177	350	400	160.5	325	4300	PDF	DXF	DWG
MOR177-43-45□	430	177	450	400	160.5	425	5000	PDF	DXF	DWG
MOR222-43-23□	430	221.5	230	400	205	205	3800	PDF	DXF	DWG
MOR222-43-28□	430	221.5	280	400	205	255	4100	PDF	DXF	DWG
MOR222-43-35□	430	221.5	350	400	205	325	4700	PDF	DXF	DWG
MOR222-43-45□	430	221.5	450	400	205	425	5600	PDF	DXF	DWG
MOR99-43-23□	430	99	230	400	82.5	205	2300	PDF	DXF	DWG
MOR99-43-28□	430	99	280	400	82.5	255	2600	PDF	DXF	DWG
MOR99-43-35□	430	99	350	400	82.5	325	2900	PDF	DXF	DWG
MOR99-43-45□	430	99	450	400	82.5	425	3500	PDF	DXF	DWG
MOR149-43-23□	430	149	230	400	132.5	205	2800	PDF	DXF	DWG
MOR149-43-28□	430	149	280	400	132.5	255	3200	PDF	DXF	DWG
MOR149-43-35□	430	149	350	400	132.5	325	3600	PDF	DXF	DWG
MOR149-43-45□	430	149	450	400	132.5	425	4300	PDF	DXF	DWG
MOR199-43-23□	430	199	230	400	182.5	205	3600	PDF	DXF	DWG
MOR199-43-28□	430	199	280	400	182.5	255	3900	PDF	DXF	DWG
MOR199-43-35□	430	199	350	400	182.5	325	4500	PDF	DXF	DWG
MOR199-43-45□	430	199	450	400	182.5	425	5200	PDF	DXF	DWG

Mounting plate (Option)	PDF	DXF	DWG	STP
Mounting plate (Option)	PDF	DXF	DWG	STP
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
