MOUNTNG PLATE for SPCP・SPCM series


SMP Series -PDF

CATEGORY:Aluminium mounting plate, Mount plate, Mounting base

MOUNTNG PLATE for SPCP・SPCM series
MOUNTNG PLATE for SPCP・SPCM series
MOUNTNG PLATE for SPCP・SPCM series1
MOUNTNG PLATE for SPCP・SPCM series2

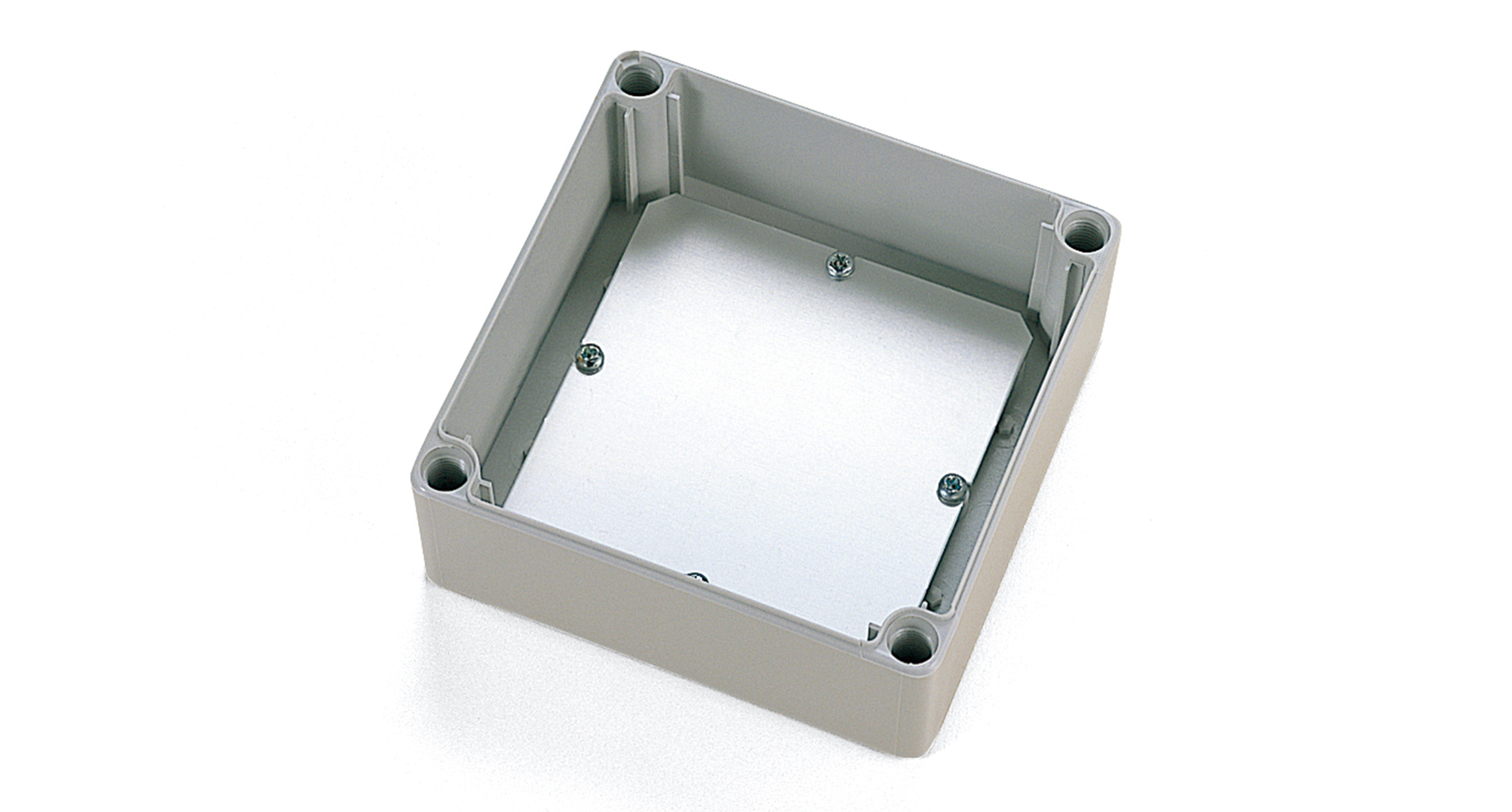

Aluminium mounting plate for SPCP・SPCM series.

Material/Finish:Aluminium A1050P t1.5 / Silver anodized.

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Weight (g) PDF DXF DWG
SMP0813 SPCM・SPCP 0813 18.0 PDF DXF DWG
SMP1010 SPCM・SPCP 1010 24.0 PDF DXF DWG
SMP1313 SPCM・SPCP 1313 40.5 PDF DXF DWG
SMP1318 SPCM・SPCP 1318 61.0 PDF DXF DWG
SMP1818 SPCM・SPCP 1818 93.0 PDF DXF DWG
SMP1825 SPCM・SPCP 1825 140.5 PDF DXF DWG

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

CNC punch pressing

DETAILS

Fiber laser cutting

DETAILS

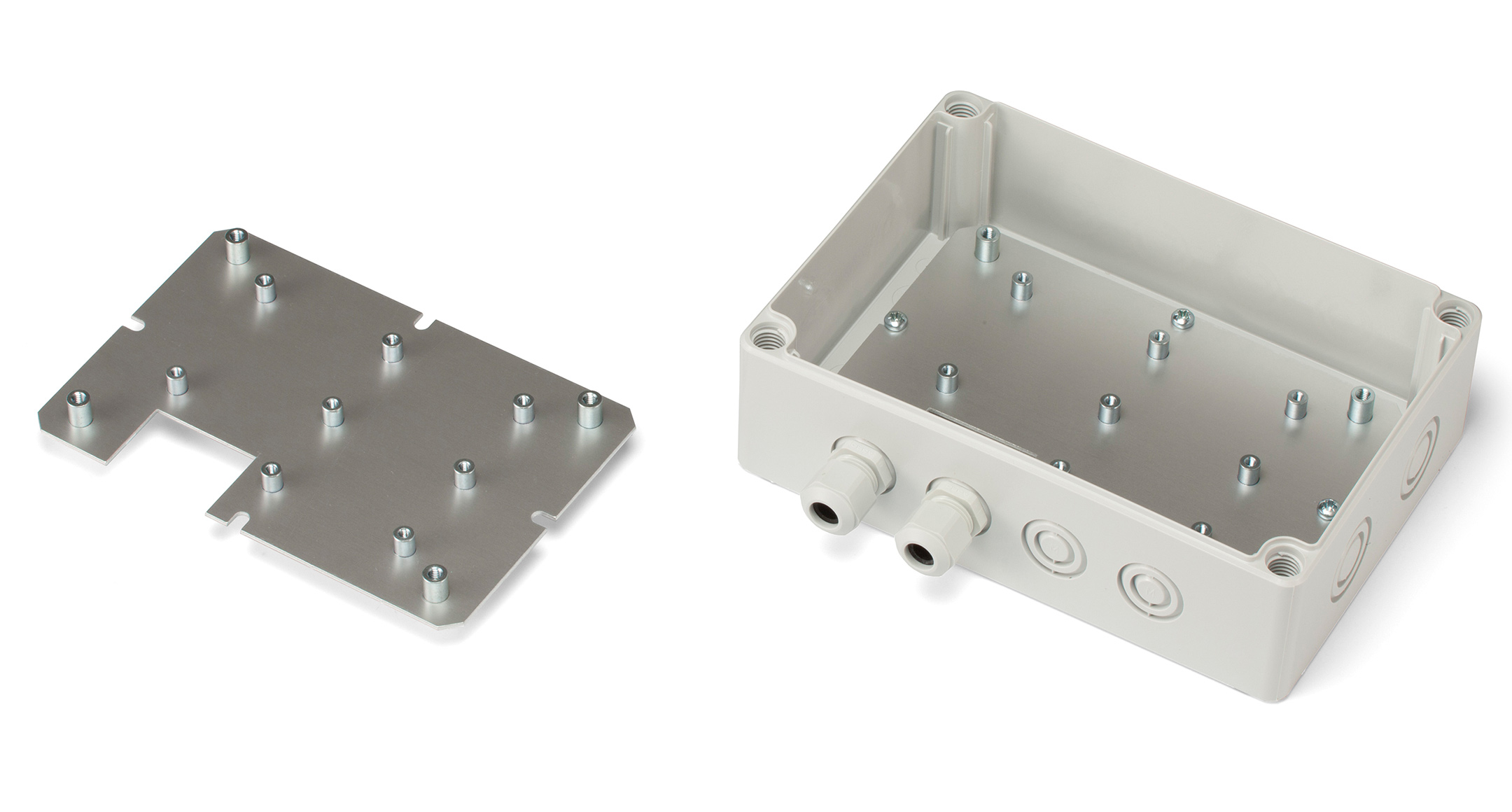

Clinching standoff pressing

DETAILS
