PANEL INSTALLATION KIT for NK・NKK


NKAP-KIT Series -PDF

CATEGORY:Panel Installation Kit

PANEL INSTALLATION KIT for NK・NKK
PANEL INSTALLATION KIT for NK・NKK
PANEL INSTALLATION KIT for NK・NKK
PANEL INSTALLATION KIT for NK・NKK1
PANEL INSTALLATION KIT for NK・NKK2
PANEL INSTALLATION KIT for NK・NKK3

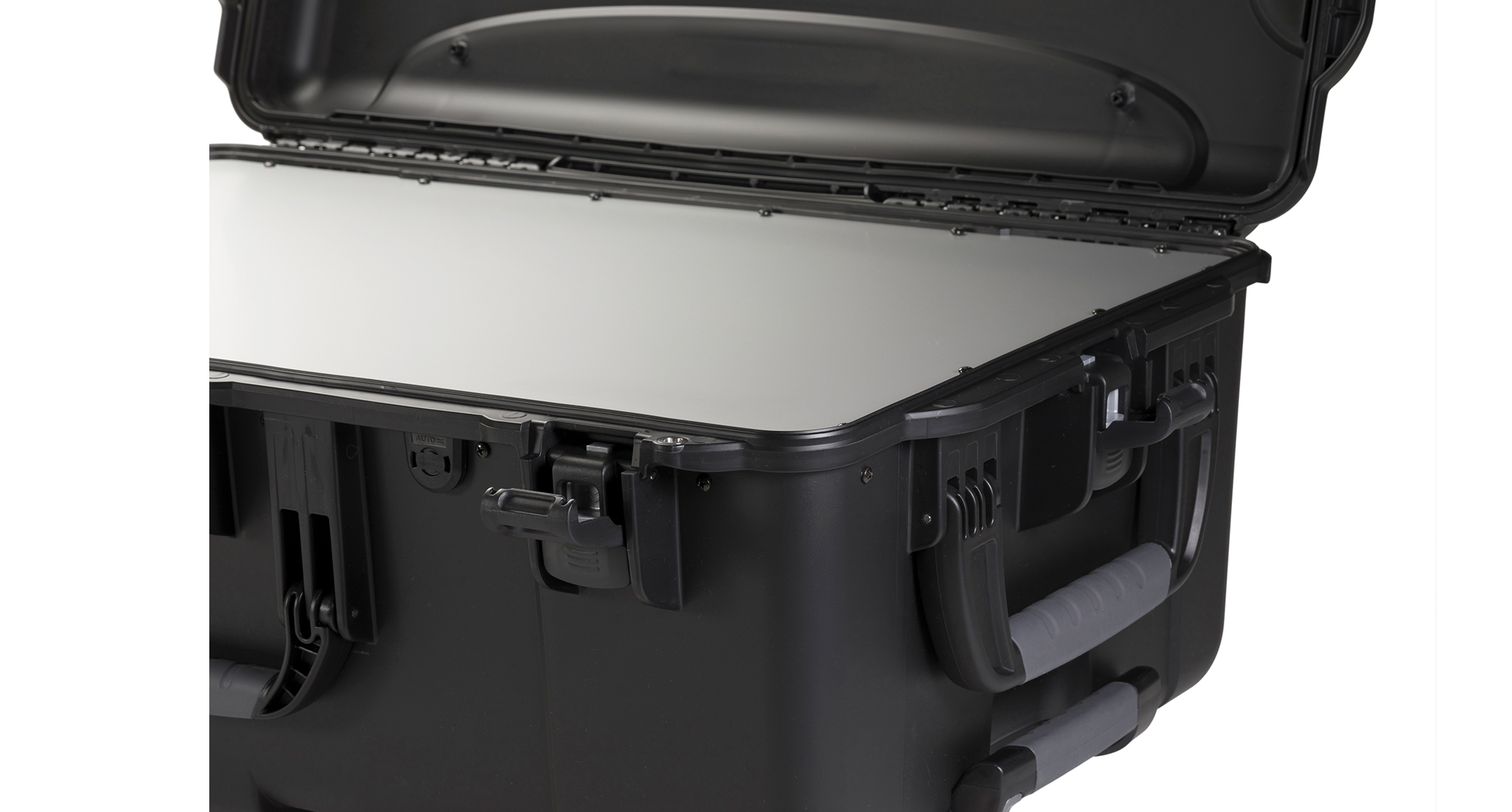

Panel installation kit for NK・NKK963, NK970, and NK975 models.
Use this kit to install NKAP panels for NK・NKK963, NK970, and NK975 models that do not have mounting bosses.

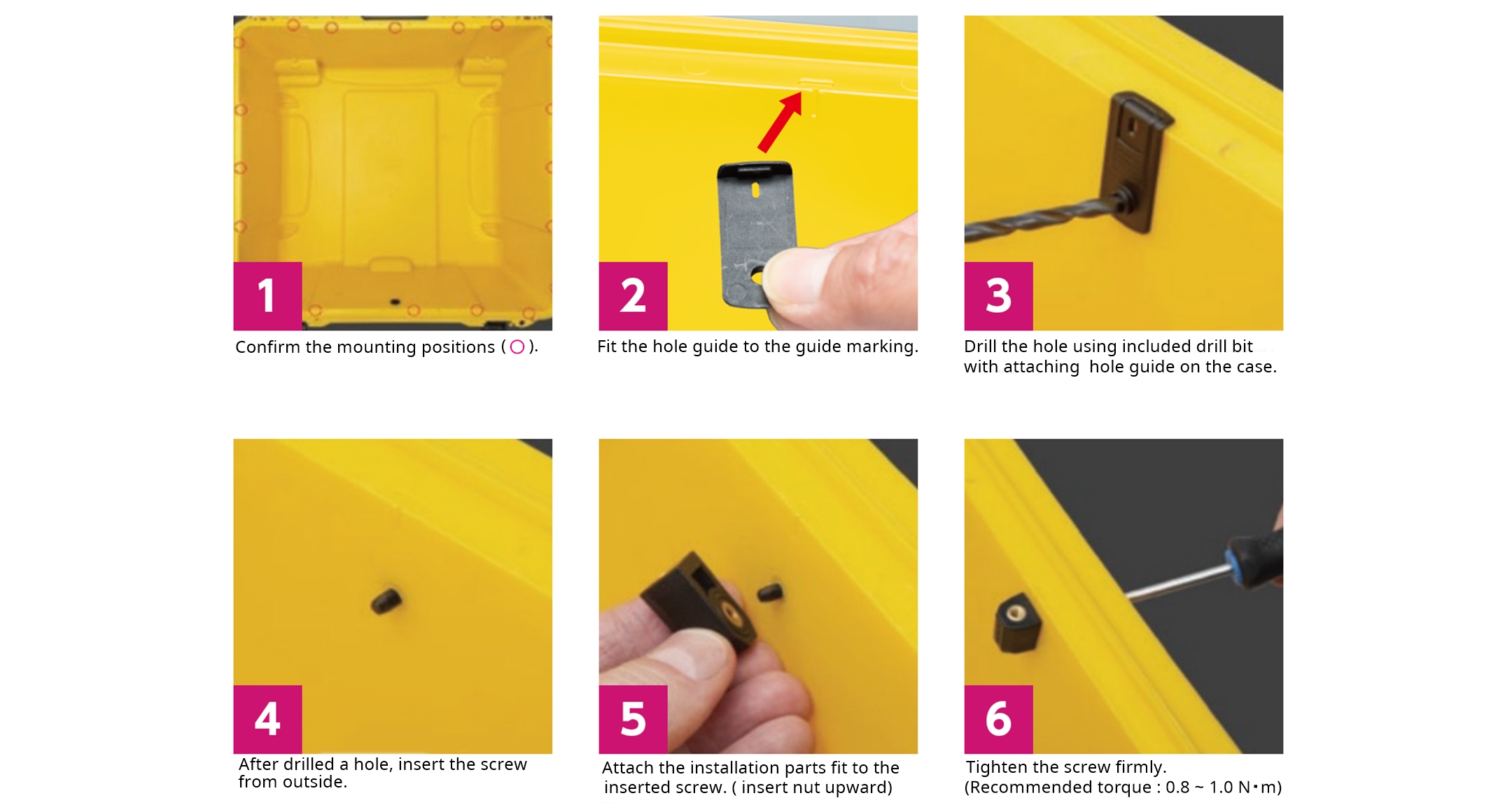

Use included drill bit to drill the holes to mount. ※Use electric screw driver for drilling the holes.

The waterproof performance will be lost once hole is drilled on NK・NKK cases.

※ Drilling would be done by customer.
※ Kit cannot be mounted on cover side of NK・NKK963 model.

PRODUCT NO. / DIMENSIONS

Product No. Suitable case Included parts Weight (g) PDF DXF DWG

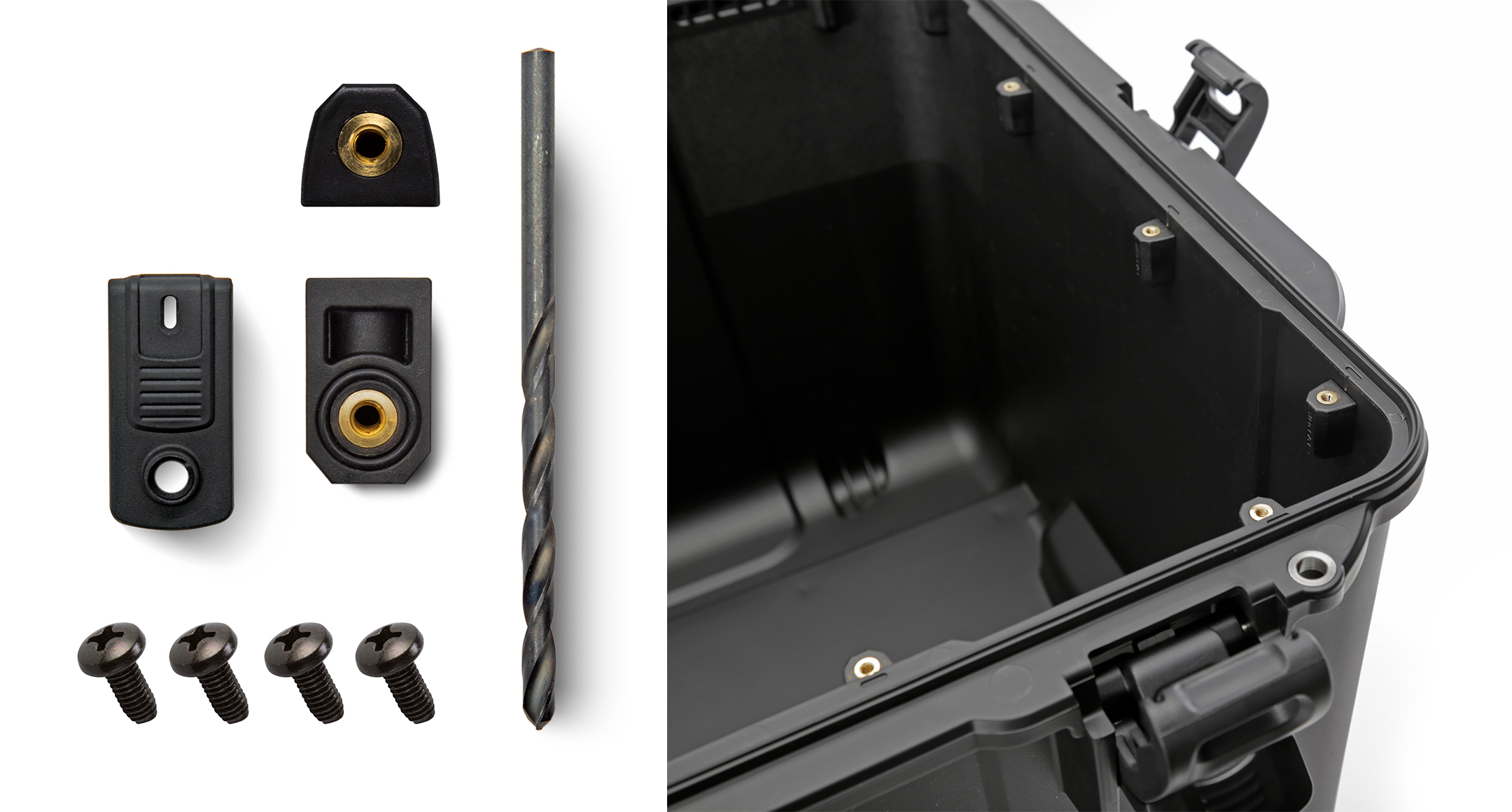

NKAP-KIT NK/NKK963、NK970、NK975 Installation parts×20pcs, Screw×40pcs, Drill bit×1pcs, Drilling guide×1pcs 158.3
