MOUNTING PLATE for HQ - HQP series


HQP Series -PDF

CATEGORY:Aluminum mounting plate, Mount plate, Mounting base

MOUNTING PLATE for HQ - HQP series
MOUNTING PLATE for HQ - HQP series1

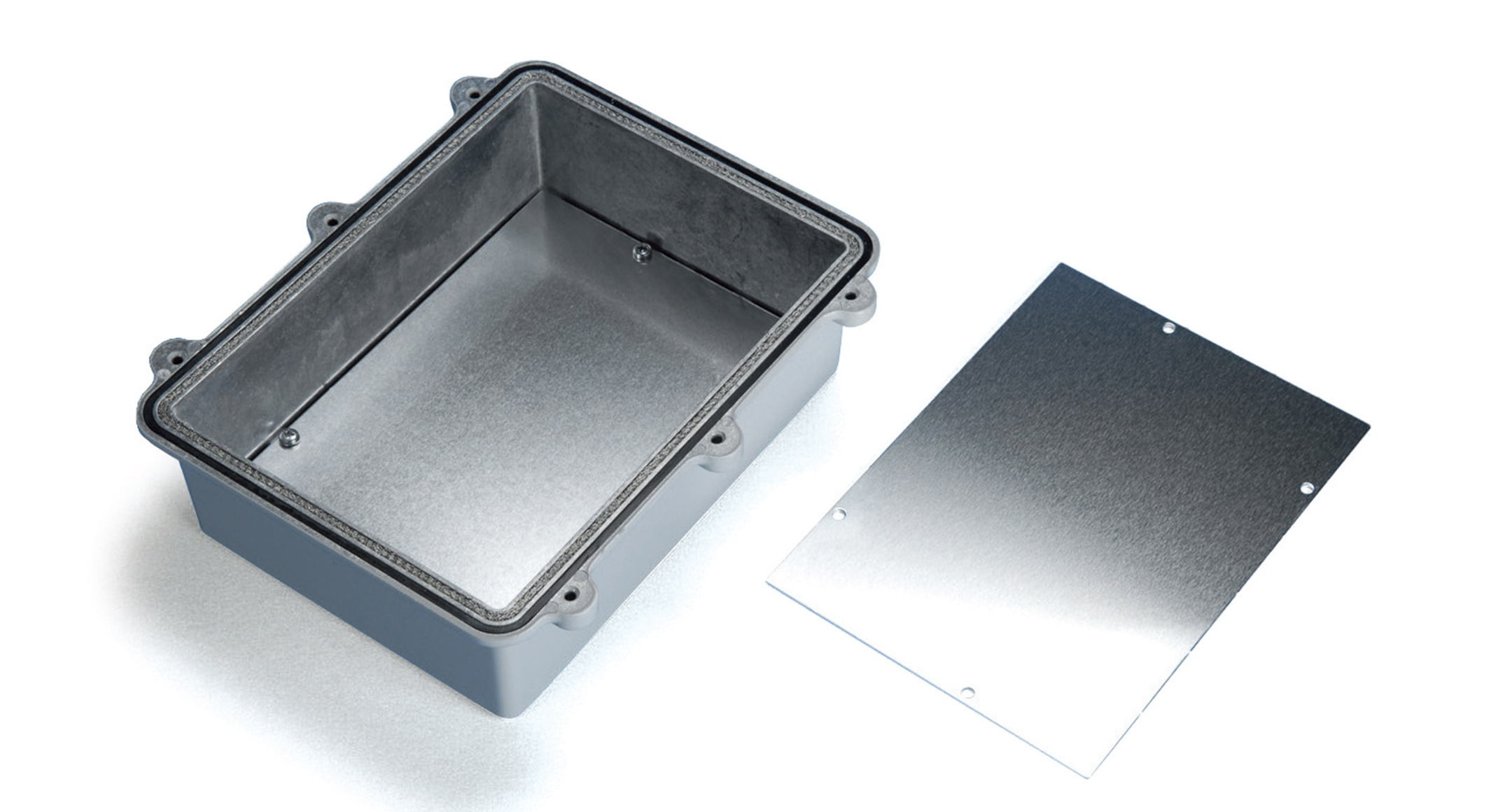

Aluminium mounting plate for HQ IP67 EMC shielded diecast aluminum boxes.
Material : Material:Aluminium thickness 1.5mm

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Weight (g) PDF DXF DWG
HQP15-10 HQ15-10-5 / HQ15-10-8 39.8 PDF DXF DWG
HQP16-16 HQ16-16-6 / HQ16-16-8 71.2 PDF DXF DWG
HQP20-15 HQ20-15-5 / HQ20-15-8 88.5 PDF DXF DWG
HQP26-18 HQ26-18-6 148.5 PDF DXF DWG
HQP27-17 HQ27-17-7 / HQ27-17-10 153.5 PDF DXF DWG
