EMC SHIELDED FAN FILTER - EMF series


EMF Series -PDF

CATEGORY：EMC Shielding fan filter, EMC protection filter, EMC wire mesh, Metal fan screen

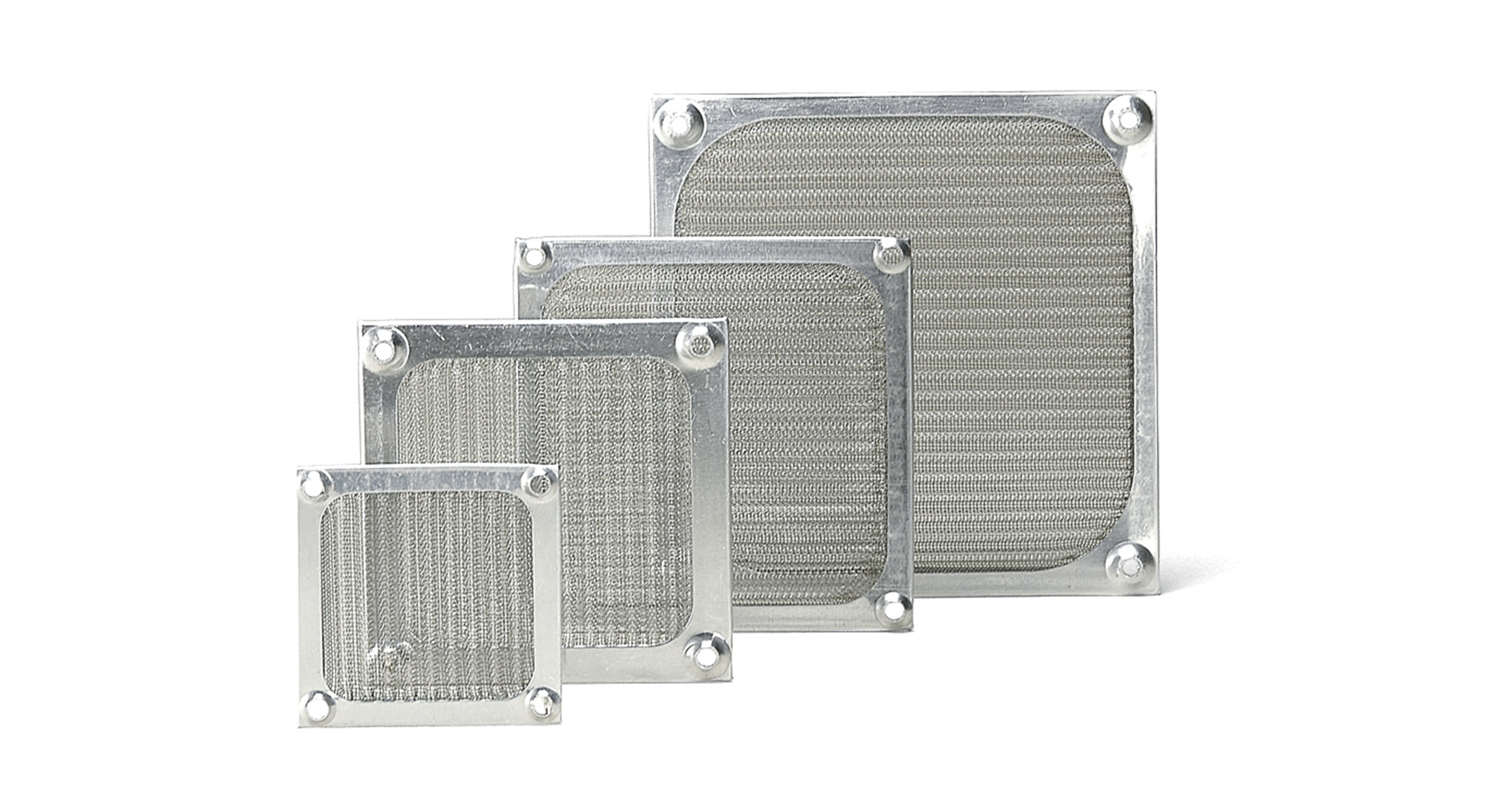

EMC SHIELDED FAN FILTER - EMF series
EMC SHIELDED FAN FILTER - EMF series1
EMC shielding filter frames for cooling fan.
Use for EMC shielding on the hole for cooling fan.

PRODUCT NO. / DIMENSIONS

Product No. Matching fan size Weight (g) PDF DXF DWG
EMF-60 60 x 60 mm 7 PDF DXF DWG
EMF-80 80 x 80 mm 15 PDF DXF DWG
EMF-90 92 x 92 mm 16 PDF DXF DWG
EMF-120 120 x 120 mm 24 PDF DXF DWG
