MOUNTING PLATE for BCAL - BMP series


BMP_BCAL Series -PDF

CATEGORY：Mounting plate, Mount plate, Mounting base

MOUNTING PLATE for BCAL - BMP series
MOUNTING PLATE for BCAL - BMP series
MOUNTING PLATE for BCAL - BMP series1
MOUNTING PLATE for BCAL - BMP series2
Mounting plate for BCAL IP65 plastic boxes.

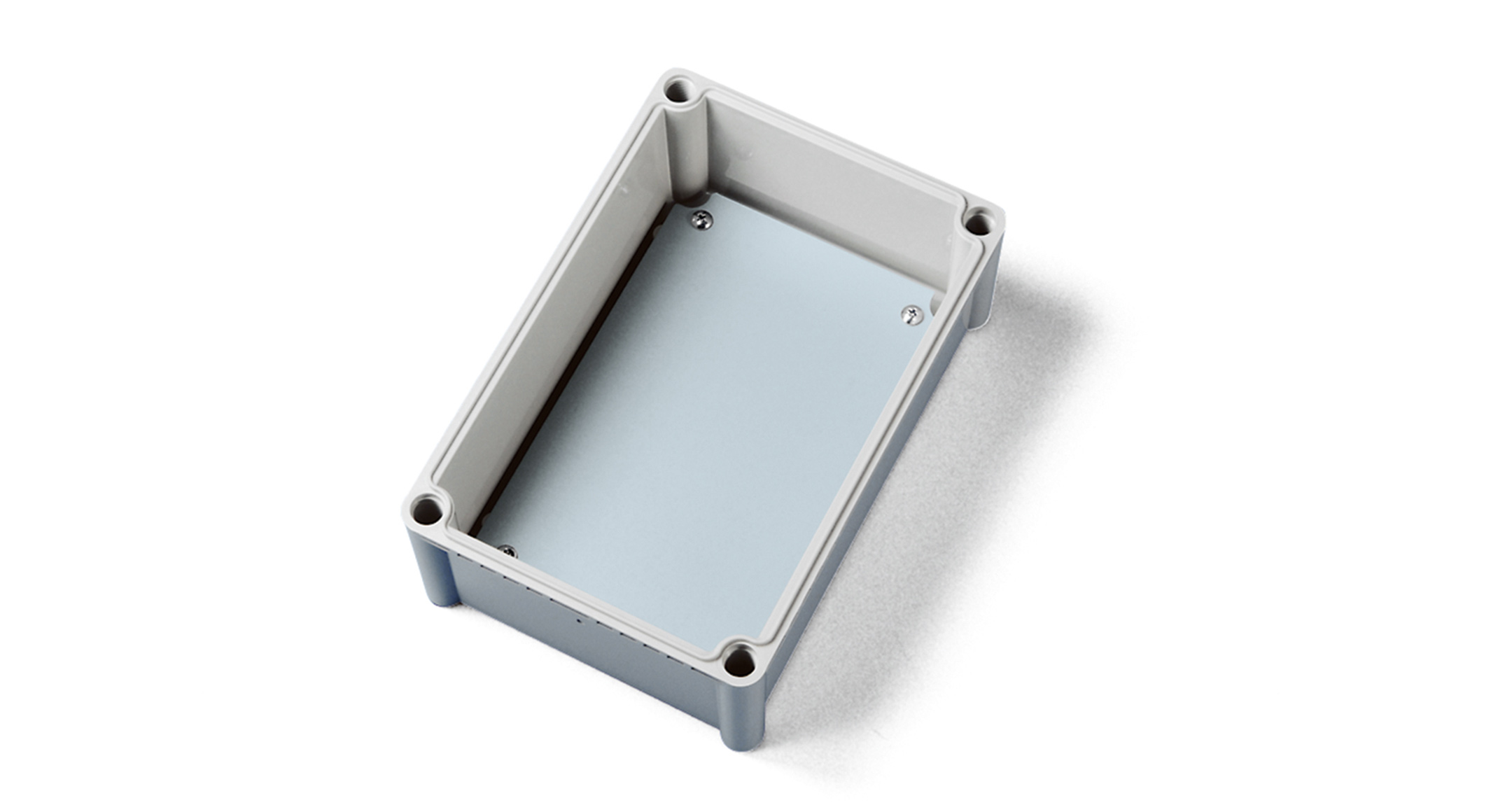

Steel and plastic mounting plates are available.

PRODUCT NO. / DIMENSIONS

Product No. Suitable boxes Material Weight (g) PDF DXF DWG
BMP1919P, BCAL191913 ABS Plastic 104 PDF DXF DWG
BMP1928P, BCAL192813, BCAL192818 ABS Plastic 162 PDF DXF DWG
BMP1938P, BCAL193813, BCAL193818 ABS Plastic 236 PDF DXF DWG
BMP2828P, BCAL282813 ABS Plastic 237 PDF DXF DWG
BMP2838P, BCAL283813, BCAL283818 ABS Plastic 368 PDF DXF DWG
BMP1919Z, BCAL191913 Steel (Zinc coated) 303 PDF DXF DWG
BMP1928Z, BCAL192813, BCAL192818 Steel (Zinc coated) 462.5 PDF DXF DWG
BMP1938Z, BCAL193813, BCAL193818 Steel (Zinc coated) 676.5 PDF DXF DWG
BMP2828Z, BCAL282813 Steel (Zinc coated) 727.5 PDF DXF DWG
BMP2834Z, BCAL283413 Steel (Zinc coated) 920 PDF DXF DWG
BMP2838Z, BCAL283813, BCAL283818 Steel (Zinc coated) 1018 PDF DXF DWG
BMP2856Z, BCAL285613 Steel (Zinc coated) 1571 PDF DXF DWG
BMP3856Z, BCAL385618 Steel (Zinc coated) 2210 PDF DXF DWG

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

CNC punch pressing

DETAILS

Fiber laser cutting

DETAILS

Clinching standoff pressing

DETAILS
