CATEGORY：Rackmount case with handle, Rack case with handle, 19" rackmount case, Rackmount chassis

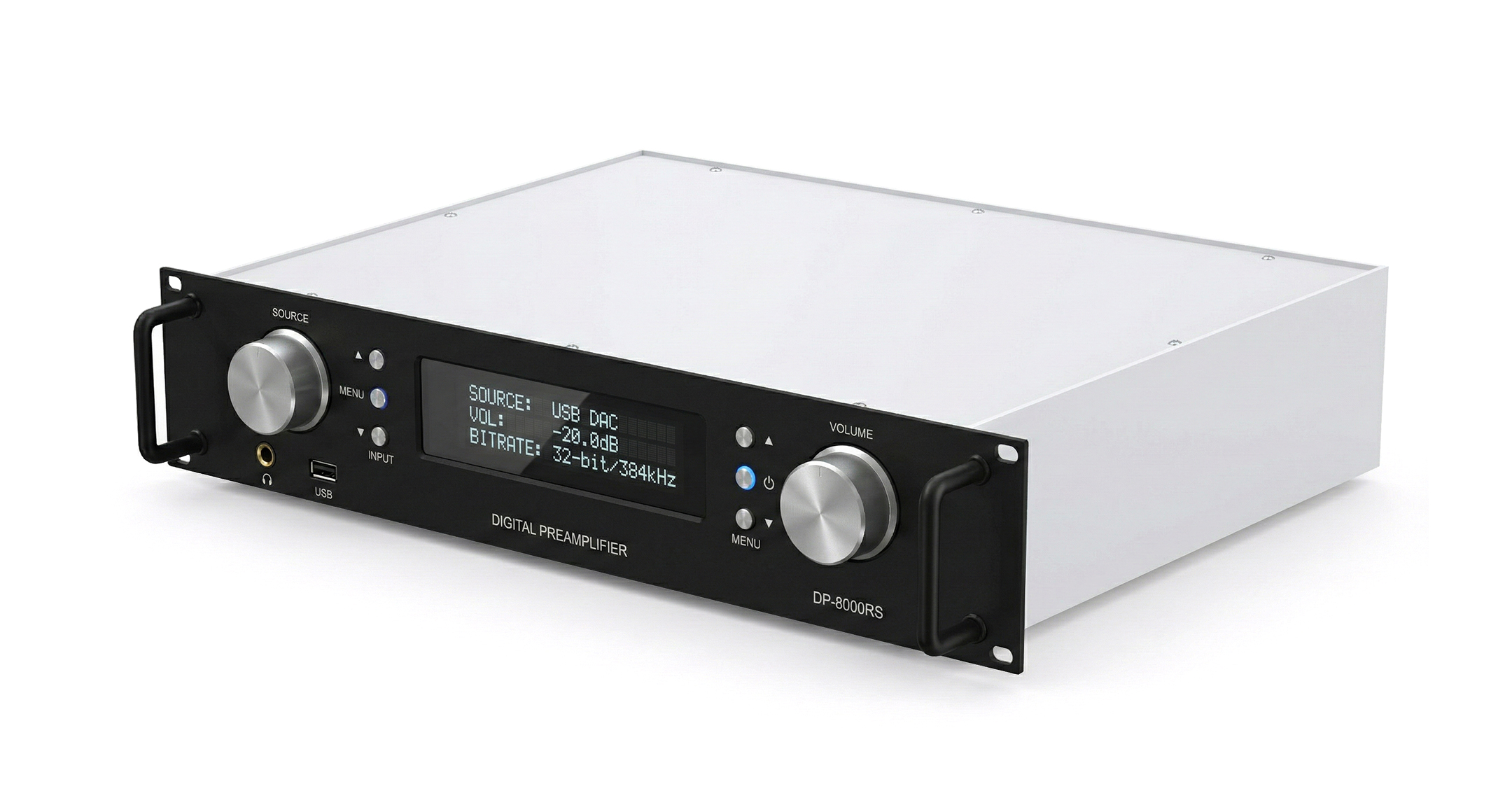

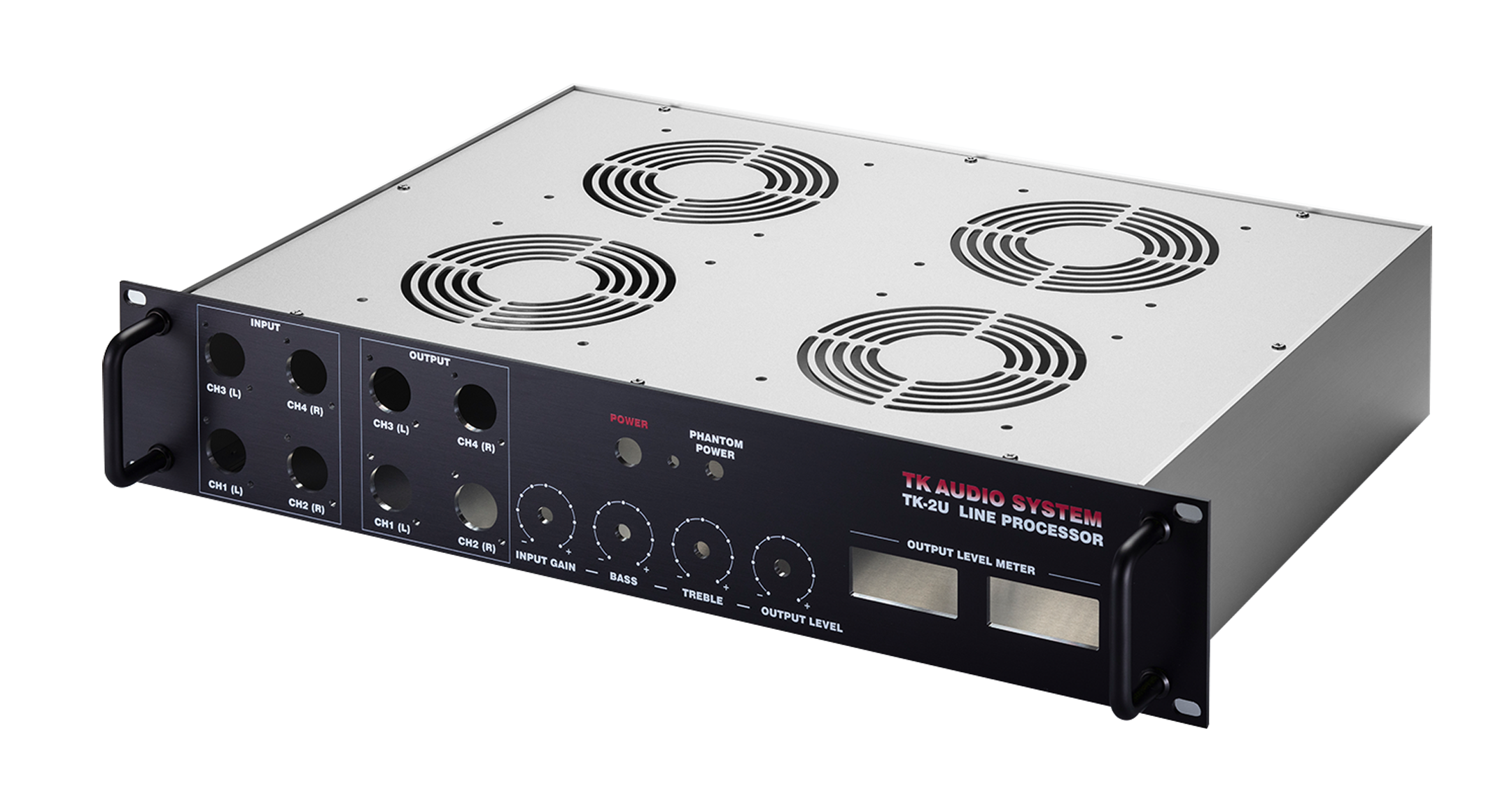

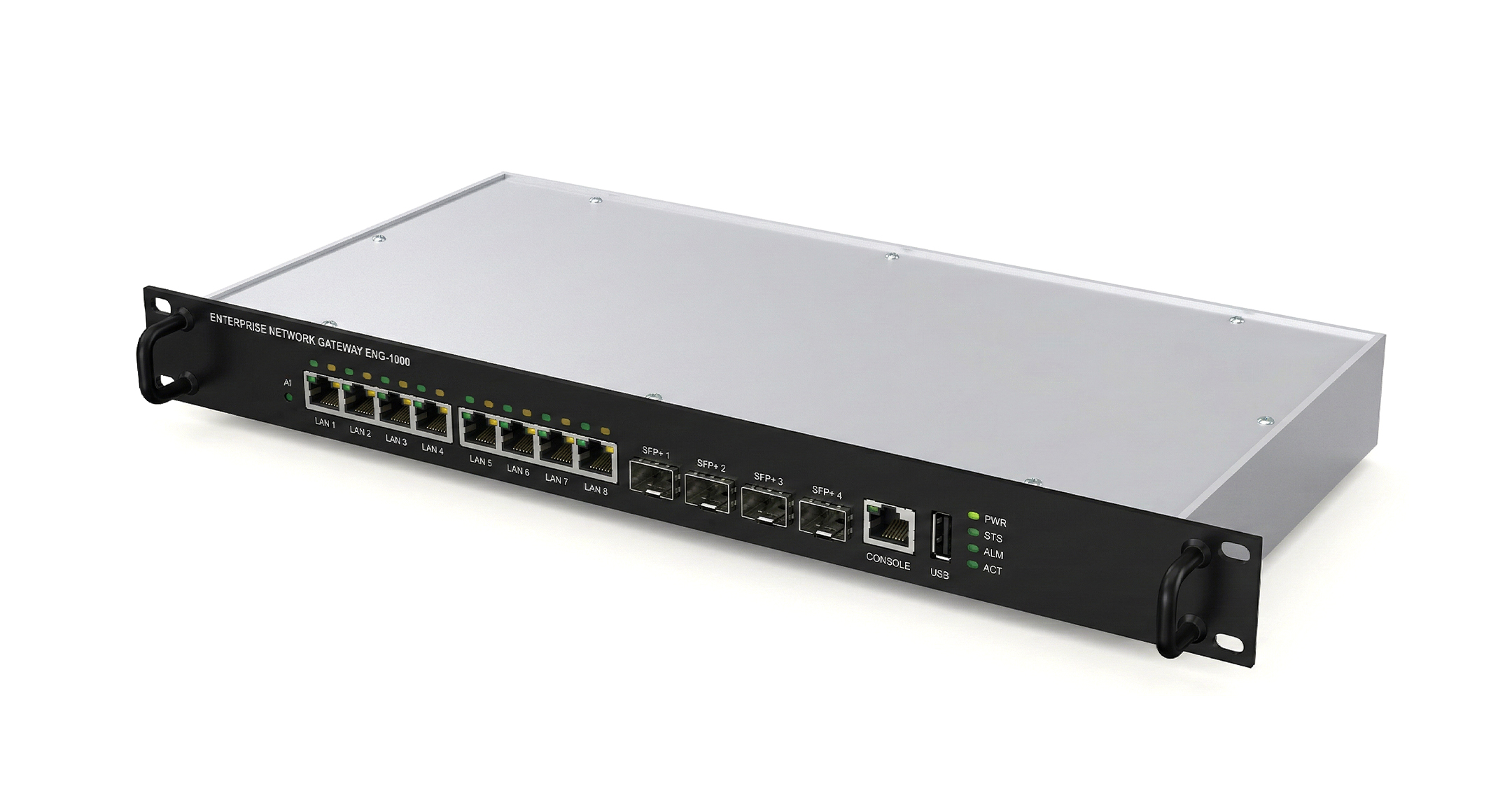

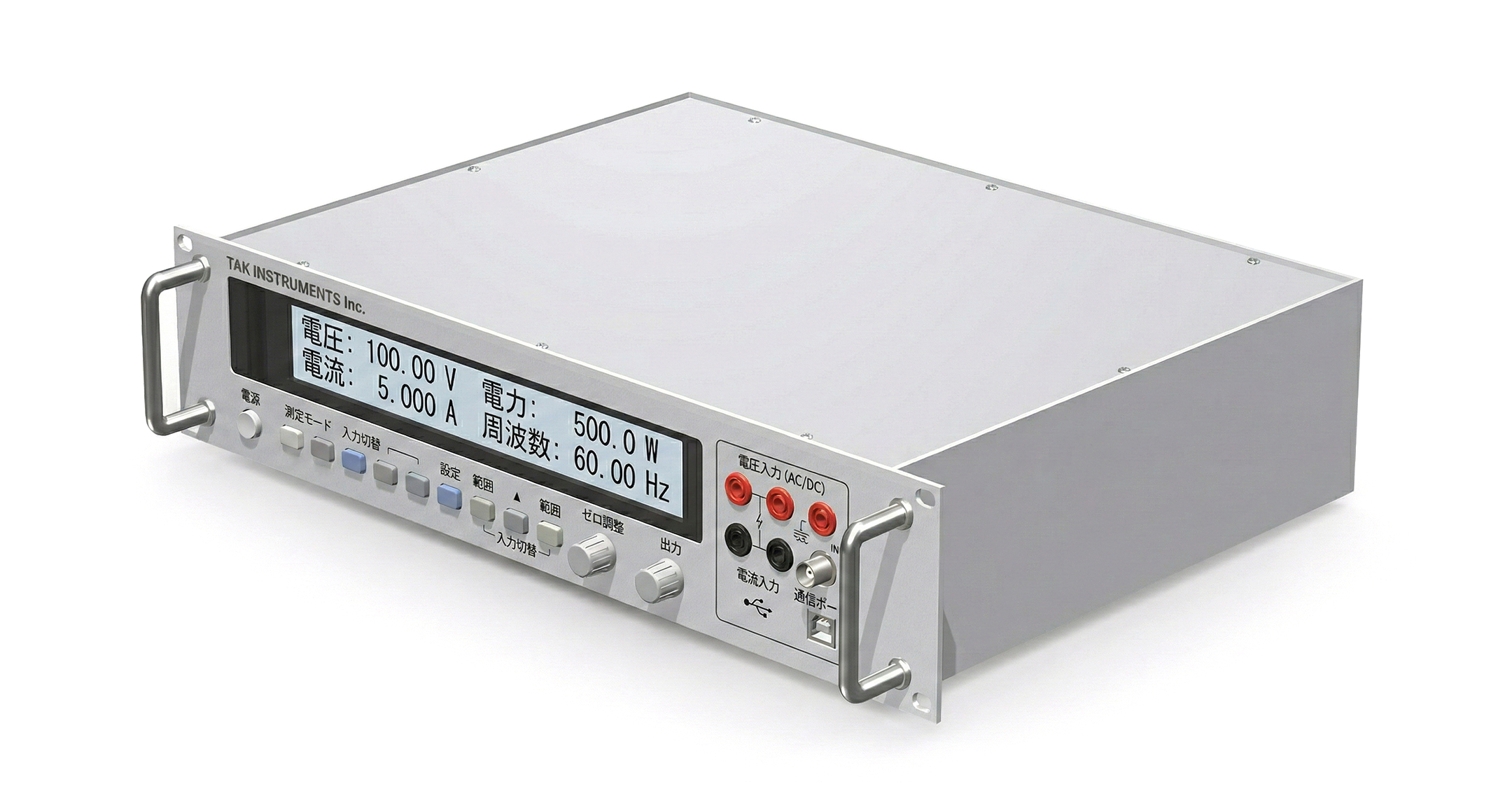

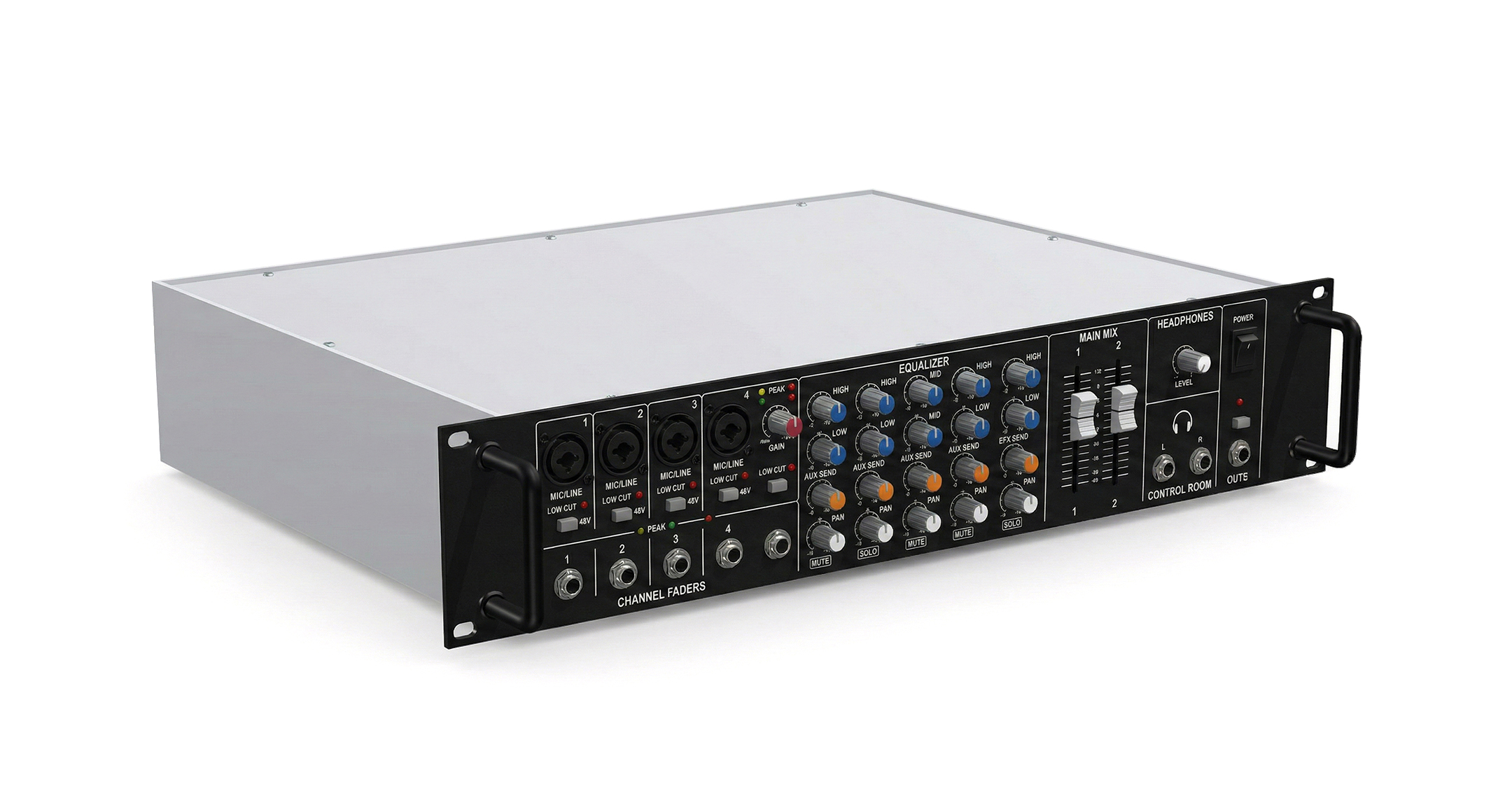

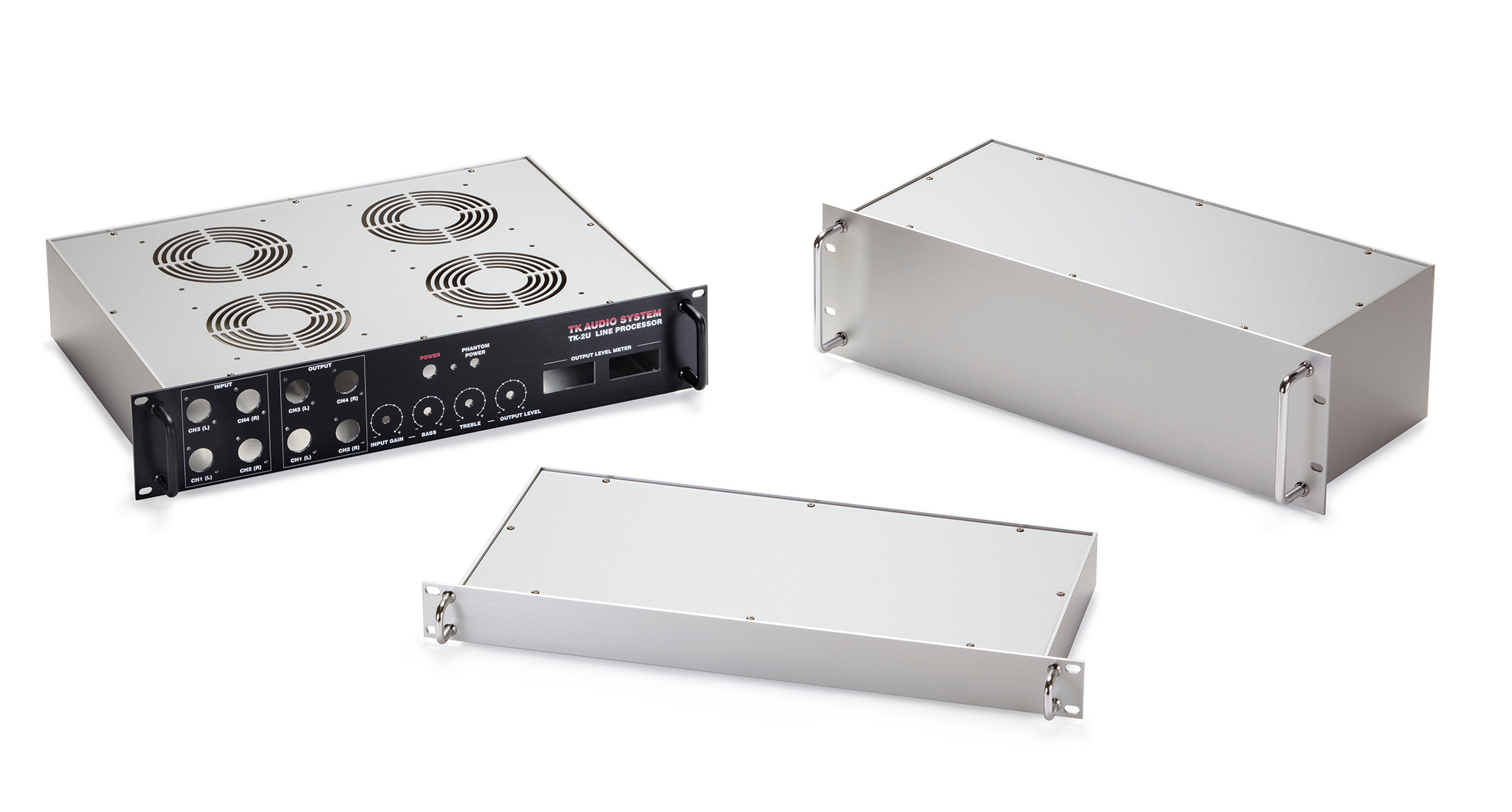

YERH is a 19" rack mount enclosure series with handles, in EIA standard sizes.
Made of extruded aluminium material on 4 sides, it has 424mm effective width; providing a large internal effective area.
2 colors, silver and black, are available for the panel.
3 height sizes and 3 depth sizes available - total 9 sizes.
Flat panels allow a wide range of customization to be performed easily, such as milling, inkjet printing, painting, and more.
Use of support angle brackets are recommended when mounting on a rack.
*New product scheduled for launch in January 2026.
Made of extruded aluminium material on 4 sides, it has 424mm effective width; providing a large internal effective area.
2 colors, silver and black, are available for the panel.
3 height sizes and 3 depth sizes available - total 9 sizes.
Flat panels allow a wide range of customization to be performed easily, such as milling, inkjet printing, painting, and more.
Use of support angle brackets are recommended when mounting on a rack.
*New product scheduled for launch in January 2026.
PRODUCT NO. / DIMENSIONS ▶︎HOW TO DRAW TECHNICAL DRAWINGS
| Product No. | External dimensions | Internal dimensions | Front panel surface finish | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| YERH44-20B | 482.6 | 44 | 200 | 424 | 36 | 194 | Black anodized | 1390 | ||||
| YERH44-20S | 482.6 | 44 | 200 | 424 | 36 | 194 | Silver anodized | 1390 | ||||
| YERH44-32B | 482.6 | 44 | 320 | 424 | 36 | 314 | Black anodized | 1950 | ||||
| YERH44-32S | 482.6 | 44 | 320 | 424 | 36 | 314 | Silver anodized | 1950 | ||||
| YERH44-43B | 482.6 | 44 | 430 | 424 | 36 | 424 | Black anodized | 2390 | ||||
| YERH44-43S | 482.6 | 44 | 430 | 424 | 36 | 424 | Silver anodized | 2390 | ||||
| YERH88-20B | 482.6 | 88 | 200 | 424 | 80 | 194 | Black anodized | 1890 | ||||
| YERH88-20S | 482.6 | 88 | 200 | 424 | 80 | 194 | Silver anodized | 1890 | ||||
| YERH88-32B | 482.6 | 88 | 320 | 424 | 80 | 314 | Black anodized | 2530 | ||||
| YERH88-32S | 482.6 | 88 | 320 | 424 | 80 | 314 | Silver anodized | 2530 | ||||
| YERH88-43B | 482.6 | 88 | 430 | 424 | 80 | 424 | Black anodized | 3020 | ||||
| YERH88-43S | 482.6 | 88 | 430 | 424 | 80 | 424 | Silver anodized | 3020 | ||||
| YERH133-20B | 482.6 | 132.5 | 200 | 424 | 124.5 | 194 | Black anodized | 2270 | ||||
| YERH133-20S | 482.6 | 132.5 | 200 | 424 | 124.5 | 194 | Silver anodized | 2270 | ||||
| YERH133-32B | 482.6 | 132.5 | 320 | 424 | 124.5 | 314 | Black anodized | 2970 | ||||
| YERH133-32S | 482.6 | 132.5 | 320 | 424 | 124.5 | 314 | Silver anodized | 2970 | ||||
| YERH133-43B | 482.6 | 132.5 | 430 | 424 | 124.5 | 424 | Black anodized | 3630 | ||||
| YERH133-43S | 482.6 | 132.5 | 430 | 424 | 124.5 | 424 | Silver anodized | 3630 | ||||
