OPEN END INTERCHANGEABLE HEAD


TWE Series -PDF

CATEGORY：Open end wrench head, Cable gland tightening wrench head

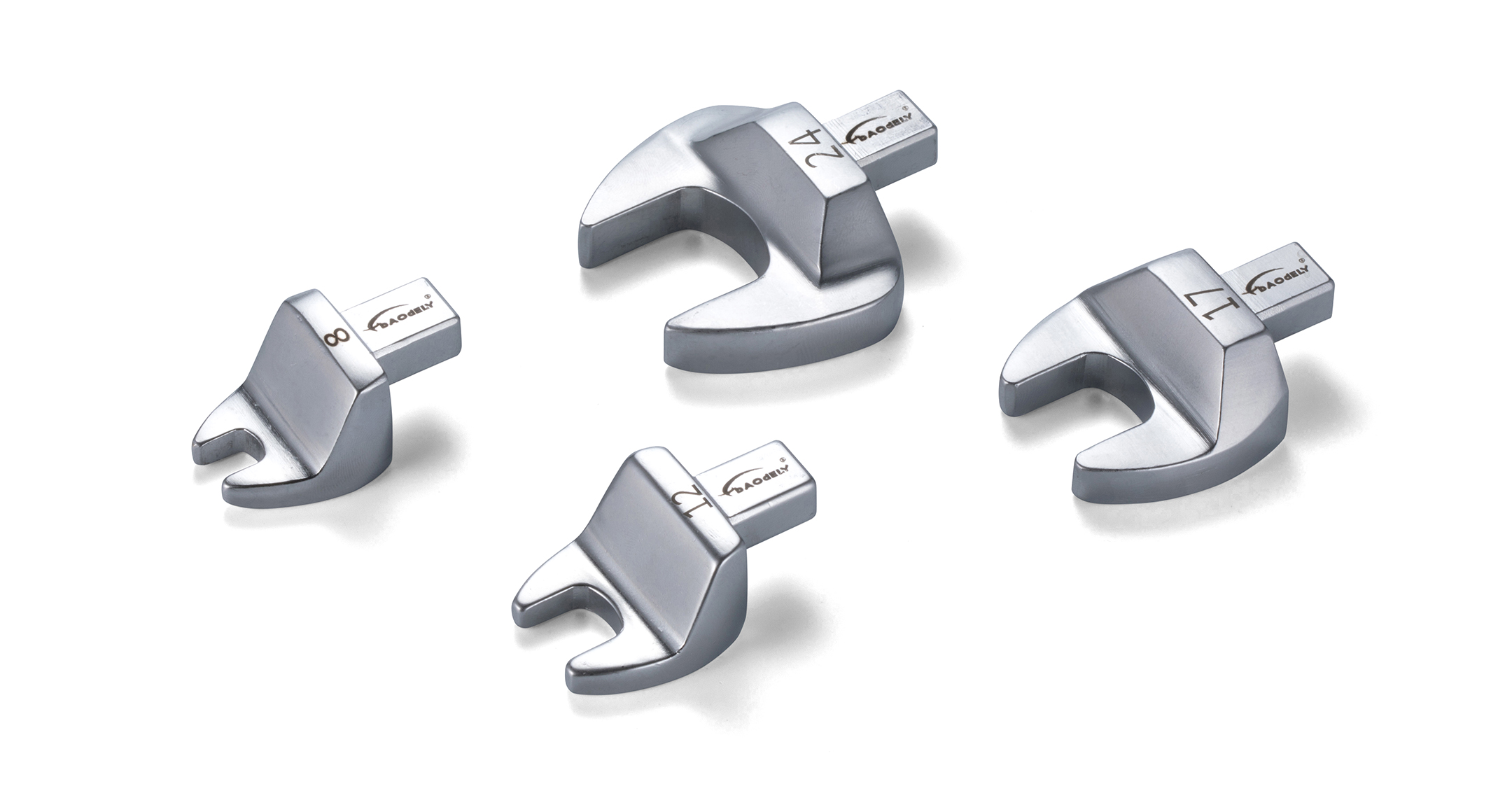

OPEN END INTERCHANGEABLE HEAD
OPEN END INTERCHANGEABLE HEAD1
Dedicated open end interchangeable head for TWH series.
Various interchangeable heads are available to fit a range of cable gland sizes.
Wrench size 8mm～36mm, 21 sizes are available.

Note: These open end head is not subject to RoHS regulations.
Torque Wrench Operation Manual  

PRODUCT NO. / DIMENSIONS

Product No. Width (mm) Wrench size (mm) Thickness (mm) Weight (g) PDF DXF DWG
TWE-8 27 8 6 67.8
TWE-9 27 9 6 70
TWE-11 27 11 6 70
TWE-12 30 12 6 74.2
TWE-13 31 13 6 73.2
TWE-15 40 15 9 116.1
TWE-16 40 16 9 108.3
TWE-17 41 17 9 114.4
TWE-18 42 18 9 112.9
TWE-19 42 19 10 126
TWE-21 47 21 10 124.3
TWE-22 52 22 10 138.8
TWE-23 53 23 11 139.3
TWE-24 55 24 11 154.8
TWE-27 58 27 13 170.8
TWE-29 58 29 13 168.2
TWE-30 65 30 14 208.4
TWE-32 65 32 14 210.6
TWE-33 65 33 14 214
TWE-34 70 34 15 262.6
TWE-36 72 36 15 292

OPTIONAL PARTS

１
INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series
