SPRING BATTERY CONTACT - IT series


IT Series -PDF

CATEGORY:Battery contact, Battery contact spring, Battery spring terminal, AA battery contact, AAA battery contact

SPRING BATTERY CONTACT - IT series
SPRING BATTERY CONTACT - IT series
SPRING BATTERY CONTACT - IT series1
SPRING BATTERY CONTACT - IT series2

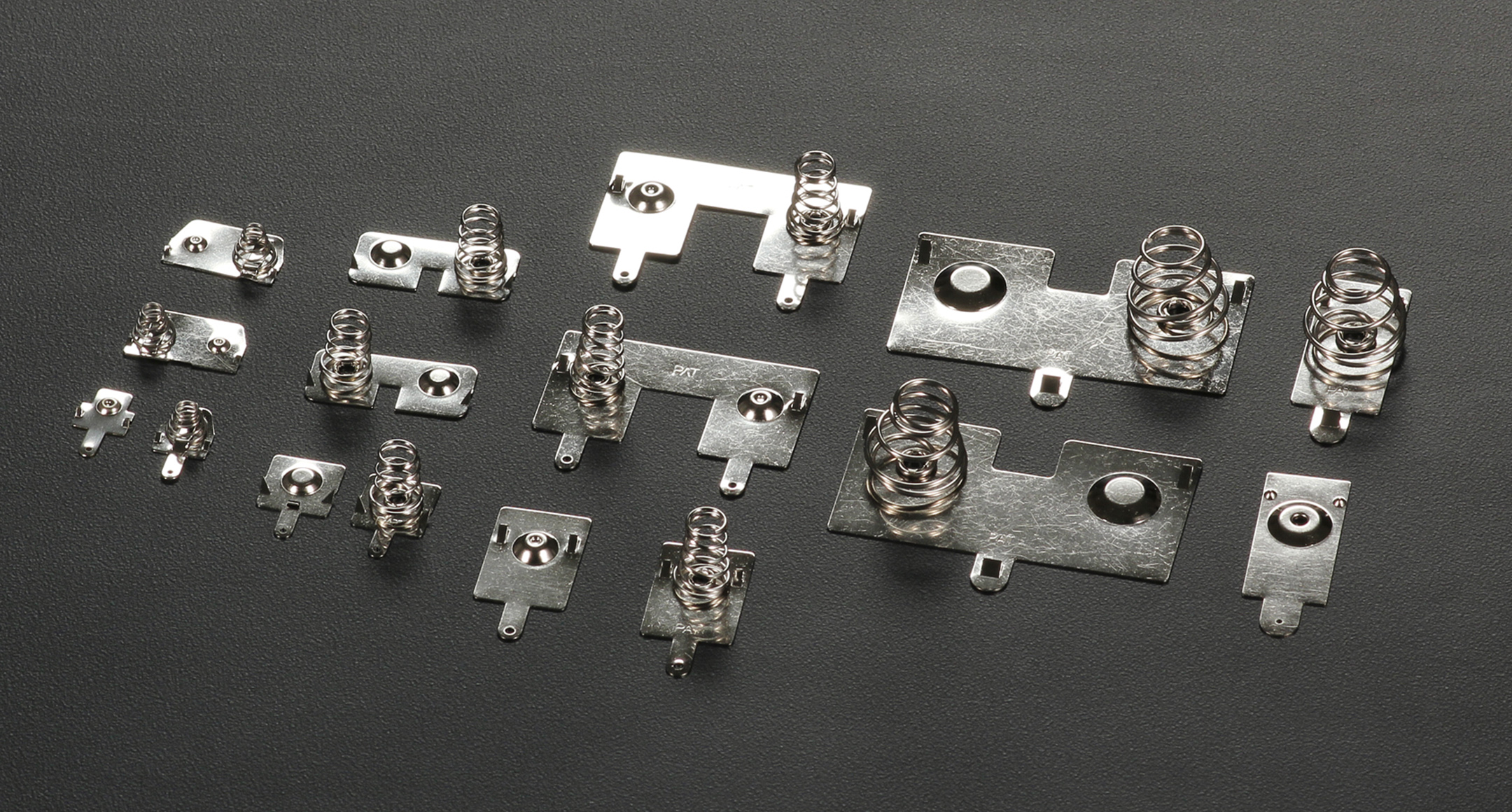

Spring battery contact for C, D, AA, and AAA batteries.
Positive (+) and negative (-) contacts are available.

Brass/nickel plated positive (+) plate contacts and steel wire or stainless steel springs for negative (-) contacts.

Sold in 10 pcs pack.

PRODUCT NO. / DIMENSIONS

Product No. Battery Contact Weight (g) / 1pc Pack of PDF DXF DWG
IT-1SP D-cell (+)Positive 1.2 10 pcs PDF DXF DWG
IT-1SM D-cell (ー)Negative 2.5 10 pcs PDF DXF DWG
IT-1WP D-cell Left:(+)Positive・ Right:(ー)Negative 5.0 10 pcs PDF DXF DWG
IT-1WM D-cell Left:(ー)Negative・ Right:(+)Positive 5.0 10 pcs PDF DXF DWG
IT-2SP C-cell (+)Positive 0.9 10 pcs PDF DXF DWG
IT-2SM C-cell (ー)Negative 1.4 10 pcs PDF DXF DWG
IT-2WP C-cell Left:(+)Positive・ Right:(ー)Negative 2.0 10 pcs PDF DXF DWG
IT-2WM C-cell Left:(ー)Negative・ Right:(+)Positive 2.7 10 pcs PDF DXF DWG
IT-3SP AA (+)Positive 0.4 10 pcs PDF DXF DWG
IT-3SM AA (ー)Negative 0.7 10 pcs PDF DXF DWG
IT-3WP AA Left:(+)Positive・ Right:(ー)Negative 1.1 10 pcs PDF DXF DWG
IT-3WM AA Left:(ー)Negative・ Right:(+)Positive 1.1 10 pcs PDF DXF DWG
IT-4SP AAA (+)Positive 0.2 10 pcs PDF DXF DWG
IT-4SM AAA (ー)Negative 0.4 10 pcs PDF DXF DWG
IT-4WP AAA Left:(+)Positive・ Right:(ー)Negative 0.6 10 pcs PDF DXF DWG
IT-4WM AAA Left:(ー)Negative・ Right:(+)Positive 0.6 10 pcs PDF DXF DWG
