DIN RAIL for BCAS series


FDR_BCAS Series -PDF

CATEGORY：DIN rail, 35mm DIN rail

DIN RAIL for BCAS series
DIN RAIL for BCAS series1

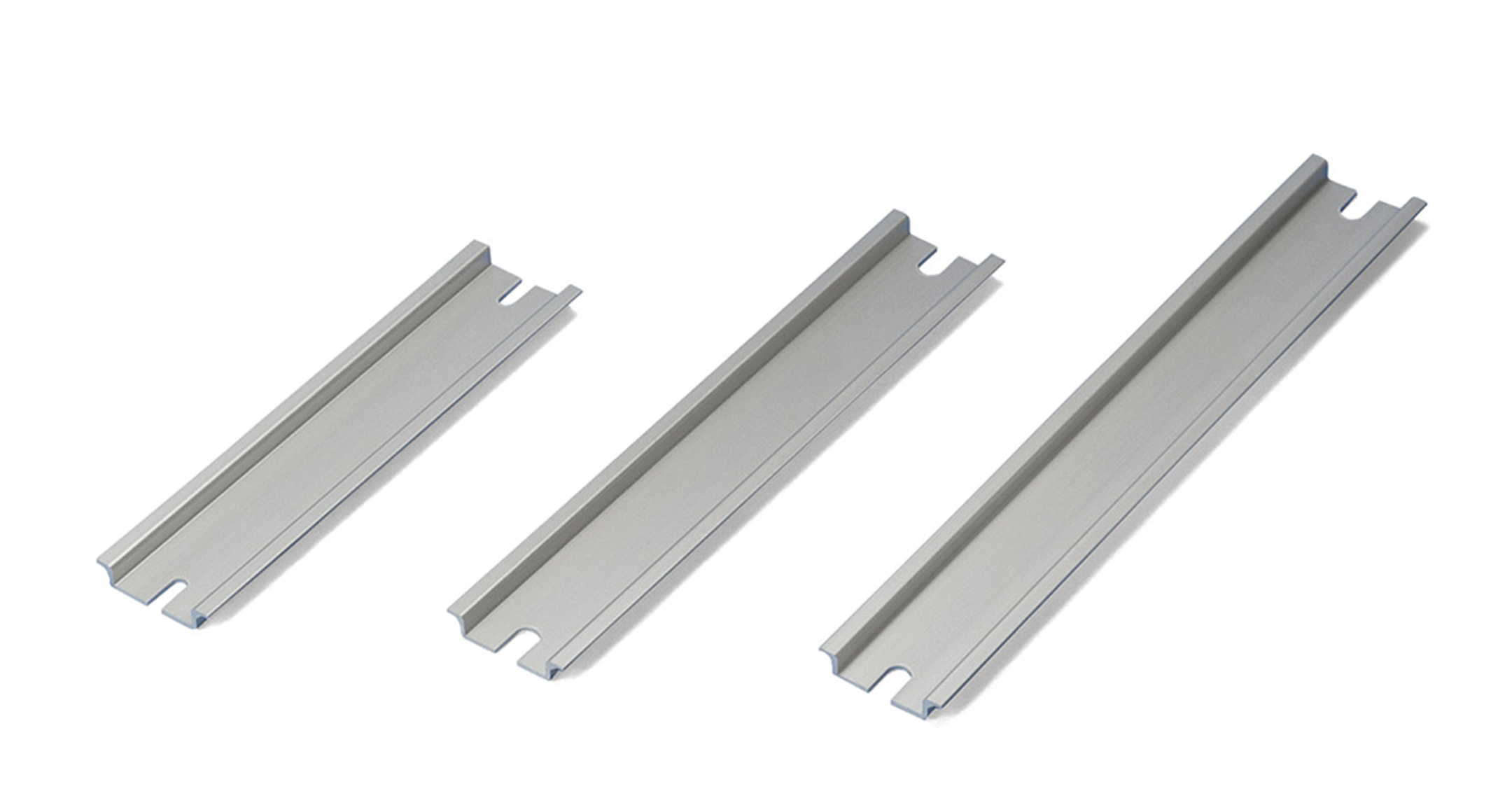

35mm DIN rail for installation of terminal blocks, modules, relays or switches inside BCAS boxes.
Available in different models and lengths to fit a wide variety of mounting boss pitch.

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Length（mm） Weight (g) PDF DXF DWG
.FDR-66 BCAS080806 66 10 PDF DXF DWG
.FDR-77 BCAS0101007・101010 77 12 PDF DXF DWG
.FDR-80 BCAS121207・121210 80 13 PDF DXF DWG
.FDR-92 BCAS081104・081107・081108 92 15 PDF DXF DWG
.FDR-110 BCAS081307・081308 110 20 PDF DXF DWG
.FDR-150 BCAS101807 150 25.8 PDF DXF DWG
.FDR-168 BCAS081807・081808 168 30 PDF DXF DWG
.FDR-170 BCAS102007 170 30 PDF DXF DWG
.FDR-202 BCAS102307 202 37 PDF DXF DWG
.FDR-235 BCAS082507・082508 235 42 PDF DXF DWG
