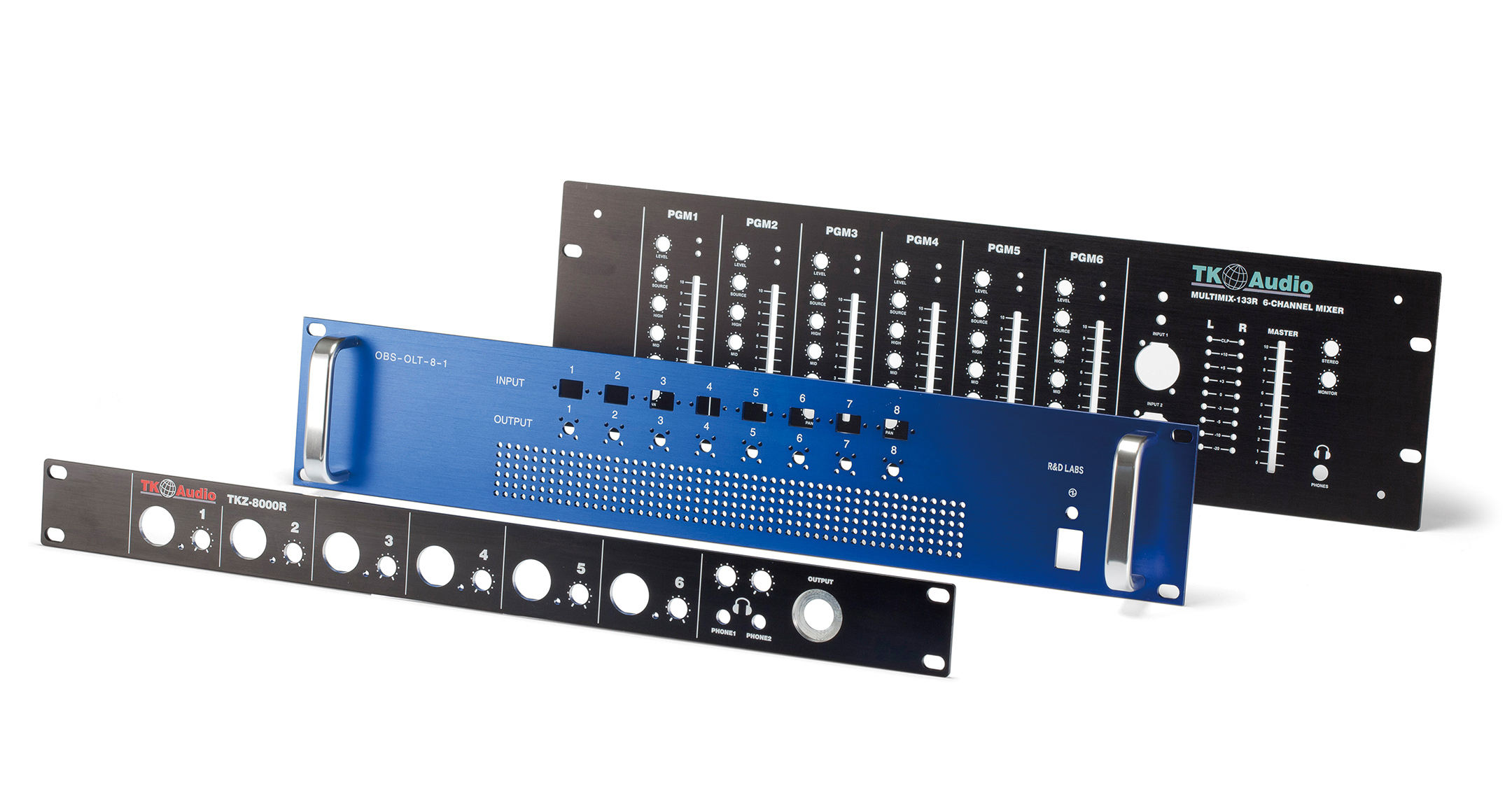

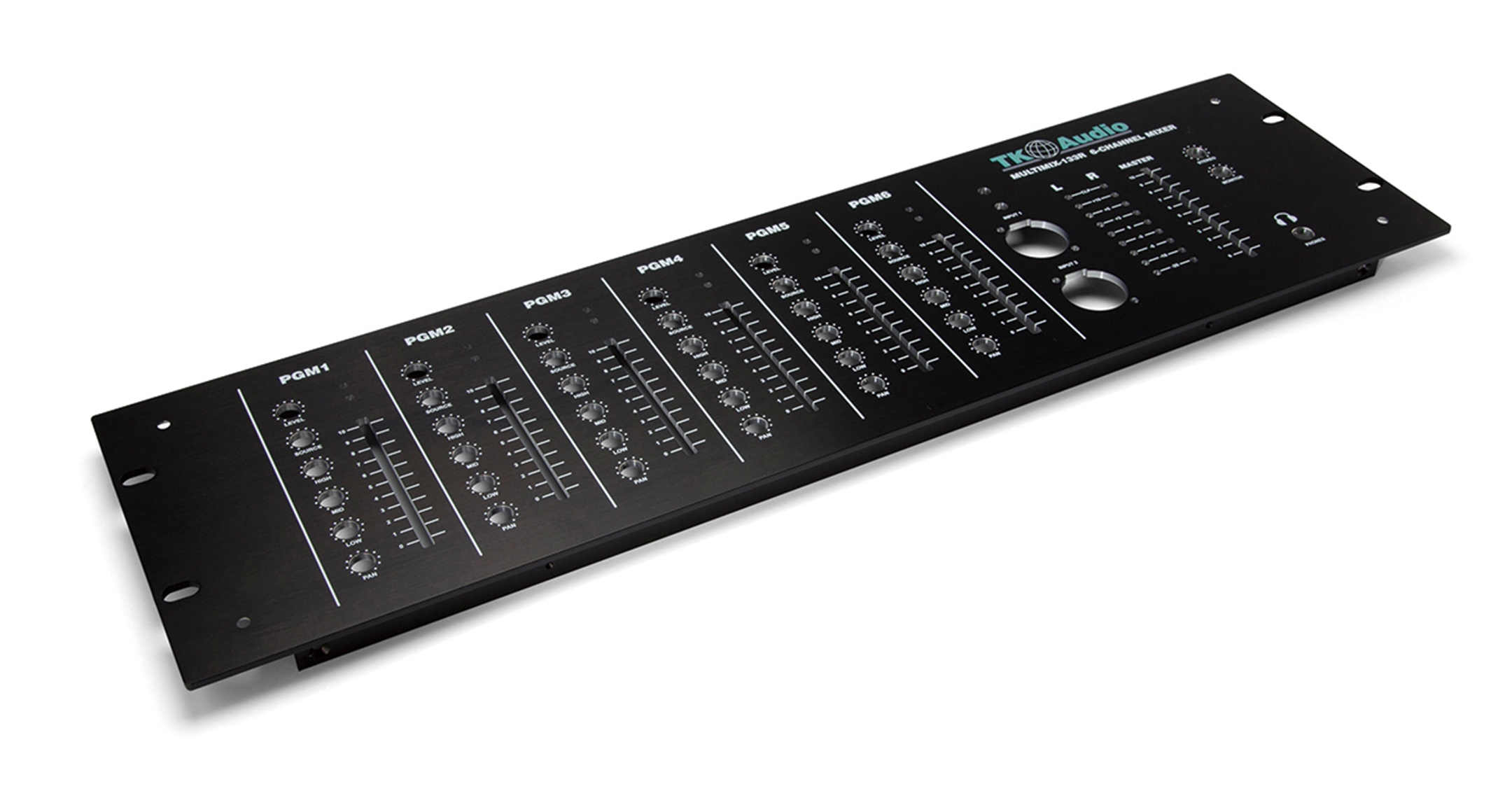

Extruded aluminium panel with reinforced rib for 19 inch rack.
1U～5U, 5 sizes in black and silver anodized colors are available.

Material : Extruded aluminium thickness=3.0mm

PRODUCT NO. / DIMENSIONS

Product No. Height Color / Finish PDF DXF DWG
EP-3-44B 1U (44mm) Black / Anodized PDF DXF DWG
EP-3-44S 1U (44mm) Silver / Anodized PDF DXF DWG
EP-3-88B 2U (88mm) Black / Anodized PDF DXF DWG
EP-3-88S 2U (88mm) Silver / Anodized PDF DXF DWG
EP-3-133B 3U (132.5mm) Black / Anodized PDF DXF DWG
EP-3-133S 3U (132.5mm) Silver / Anodized PDF DXF DWG
EP-3-177B 4U (177mm) Black / Anodized PDF DXF DWG
EP-3-177S 4U (177mm) Silver / Anodized PDF DXF DWG
EP-3-222B 5U (221.5mm) Black / Anodized PDF DXF DWG
EP-3-222S 5U (221.5mm) Silver / Anodized PDF DXF DWG
