EXPANSION PCB for Raspberry Pi 4B - RPCB-4B


RPCB-4B Series -PDF

CATEGORY:Raspberry Pi 4B expansion PCB, Raspberry Pi expansion board, Raspberry Pi 4B prototype board, Raspberry Pi breadboard

EXPANSION PCB for Raspberry Pi 4B - RPCB-4B
EXPANSION PCB for Raspberry Pi 4B - RPCB-4B
EXPANSION PCB for Raspberry Pi 4B - RPCB-4B1
EXPANSION PCB for Raspberry Pi 4B - RPCB-4B2

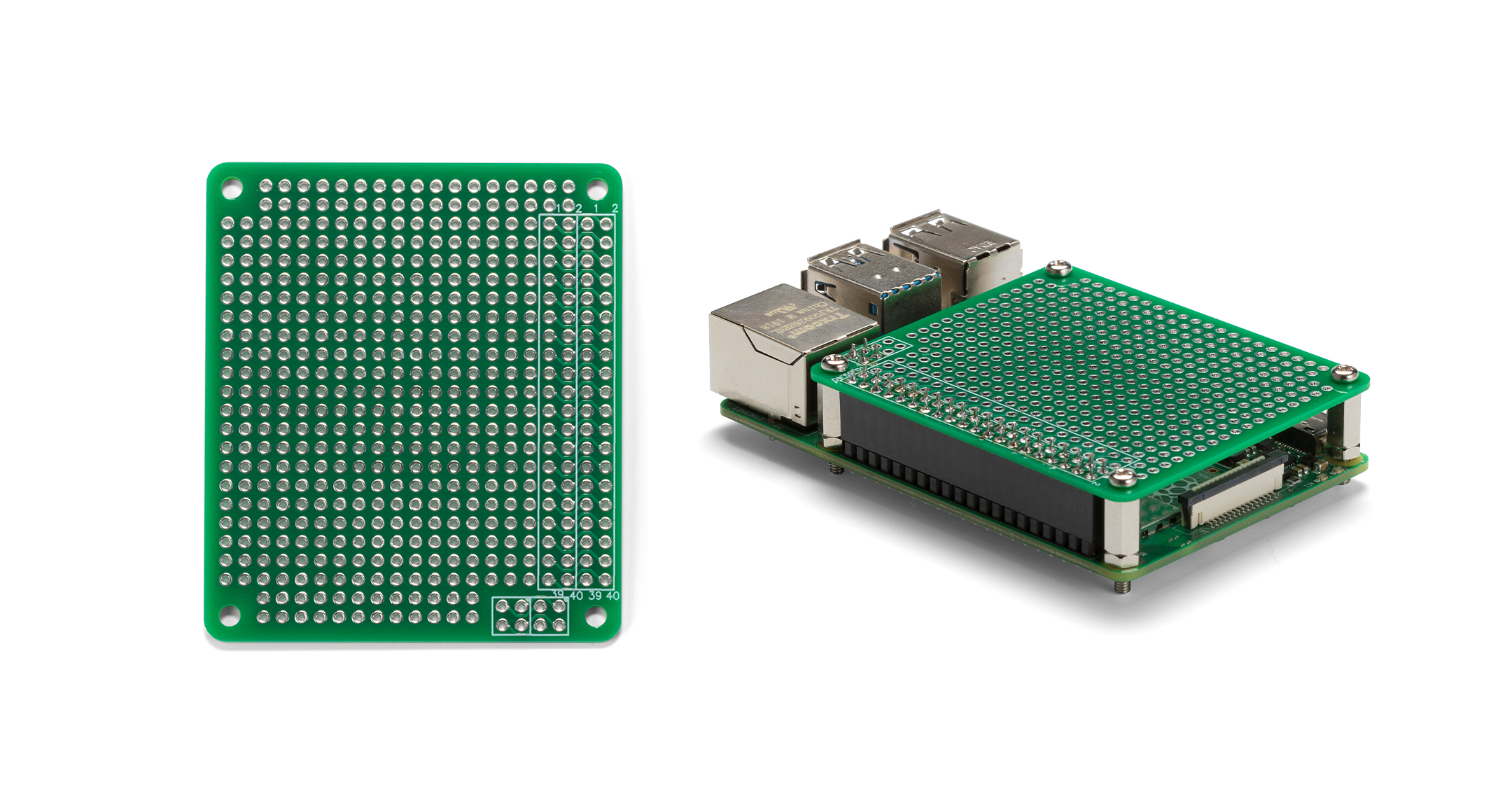

Expansion PCB for standard Raspberry Pi 4B boards. Use to install expansion parts or components.
Environmentally friendly lead-free solder. RoHS3 compliant.

Material / Finish : Glass epoxy (FR-4) / Through-hole - Lead-free solder resist

Connector, standoff, and mounting screw set are sold separately.

*Raspberry Pi Board is not included.

PRODUCT NO. / DIMENSIONS

Product No. Dimensions (W×D×T) mm Pack of Weight (g) PDF DXF DWG
RPCB-4B 65×56×1.2 1 pcs 8.4 PDF DXF DWG
